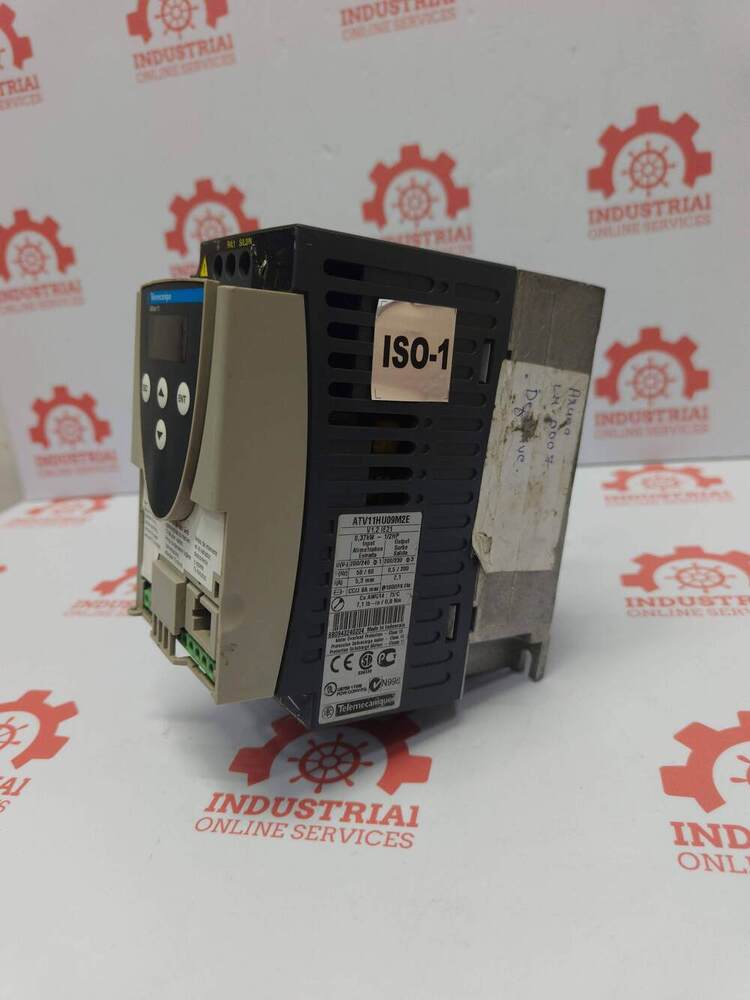

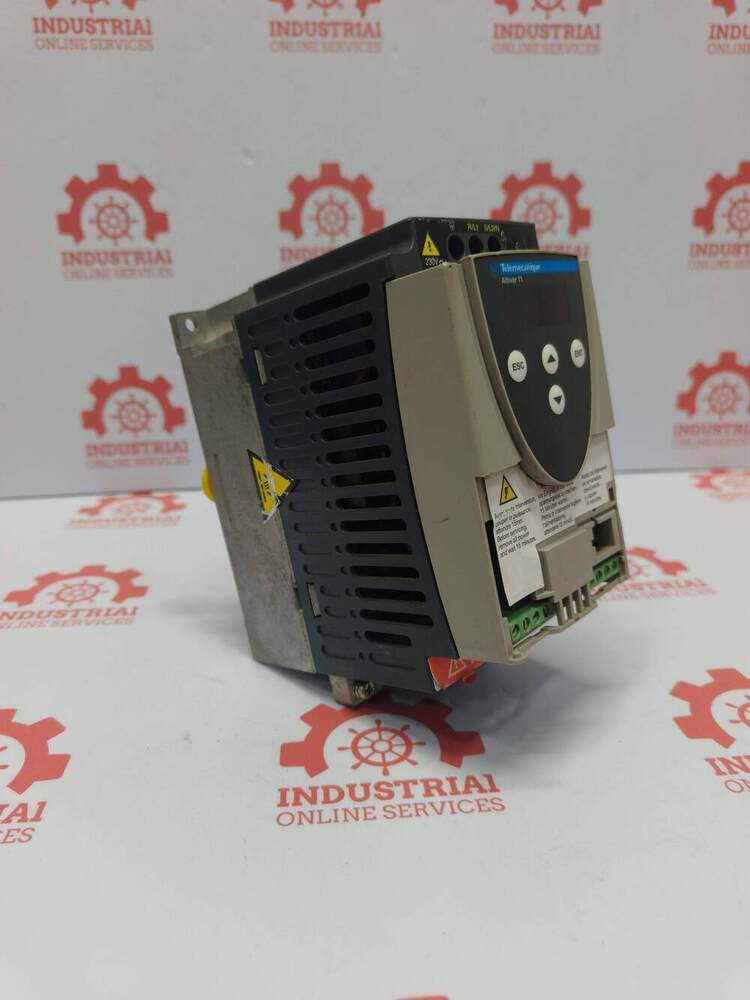

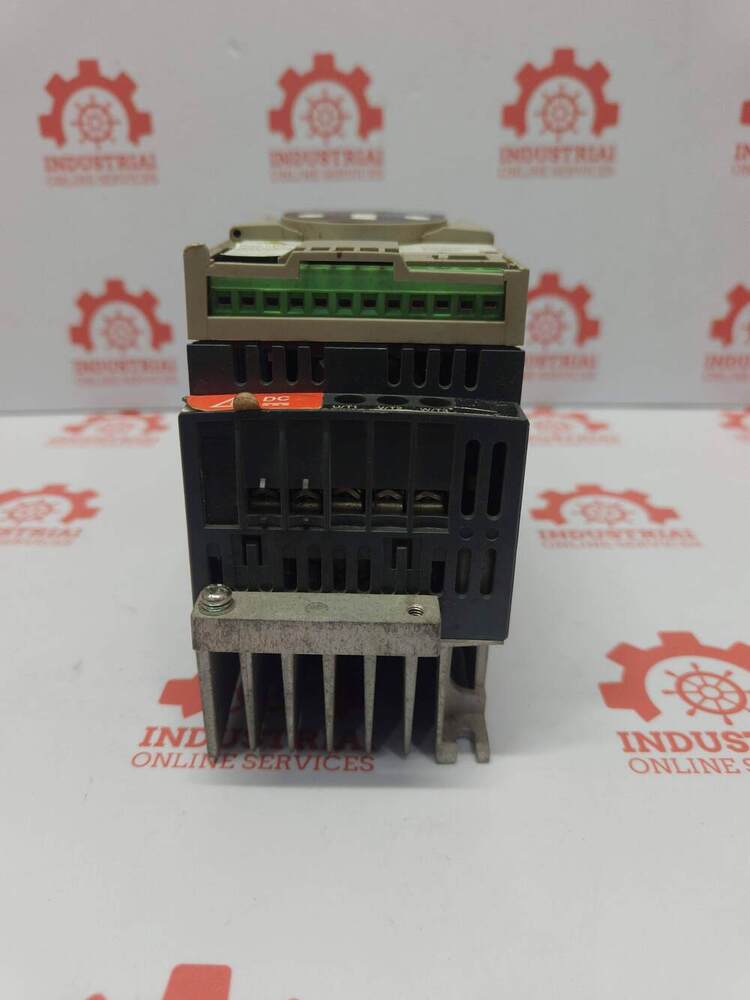

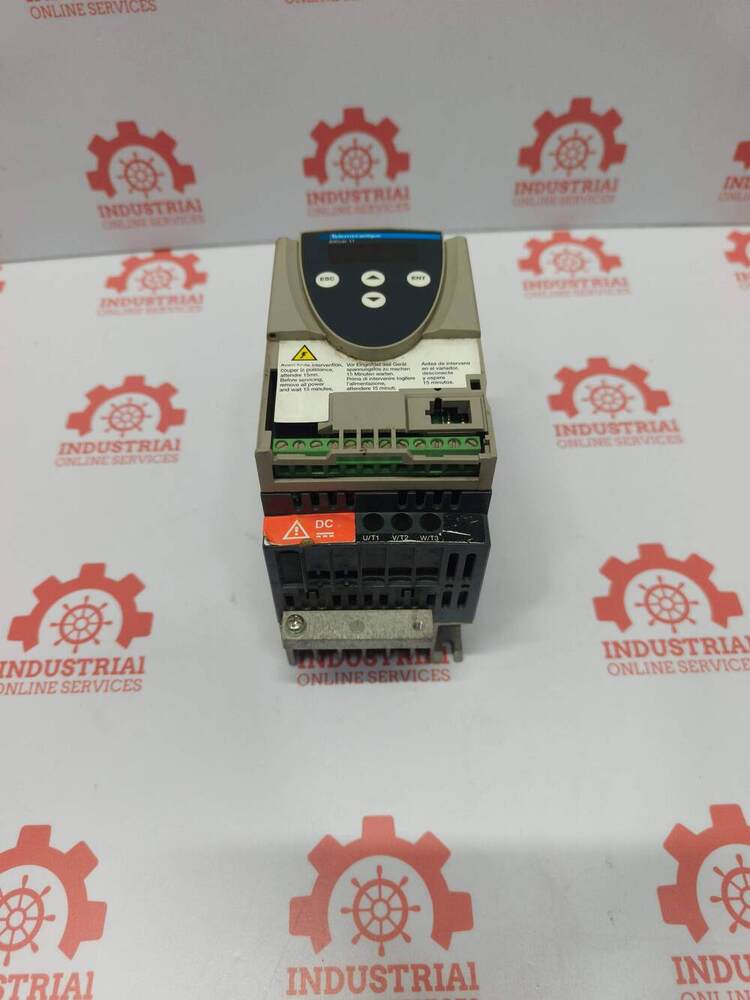

TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

Send Inquiry

Request To Call Back

TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

Name: TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors Specification

Operating Temperature
-10C to +40C (derating above 40C up to 60C).

Phase
Single-phase input / Three-phase output

Input Current
Up to 7 A (at full load, reference only).

Rated Voltage
230V AC nominal

Protection Level
IP20 (Open type, not for wet/dusty environments without enclosure)

Humidity
5% to 95% RH, non-condensing

Frequency
Input: 50/60 Hz, Output: 0.5 - 200 Hz

Mounting Type
Panel mount

Output Voltage
200-240V AC, three-phase (same as input, adjustable by drive parameters).

Efficiency
>95% (typical for VFDs at rated load)

Main Material
Plastic (enclosure), with metal heat sink and electronic internal components.

Processing Type
Variable Frequency Drive (VFD), inverter type.

Condition
Used/Serviced (industrial surplus equipment).

Function
Controls speed/torque of 3-phase AC motors by adjusting output frequency and voltage.

Application
Low-power three-phase asynchronous AC motors; conveyors, pumps, fans, small machines.

Dimension (L*W*H)
143 x 72 x 141 mm (approximate)

Power Mode
AC powered, direct line input.

Voltage
200-240V AC

Power Consumption
Approx. 200 W (depends on duty and application load).

Battery Life
Not applicable - no internal battery.

Accessories
User manual, mounting hardware (may not be included in used units).

Safety Features
Overvoltage, undervoltage, short-circuit, overtemperature, and overload protection

Rated Power (Motor drive)
0.75 kW (1 HP)

Regulatory Approvals
CE, UL, cUL (industrial use)

Input Voltage Range
200-240V AC +/-10%

Series
Altivar 11

Weight
~1.1 kg

Control Method
V/F (Voltage to Frequency) control, scalar control

Output Current (Continuous)
4.2 A

Cooling Method
Natural convection (integral heat sink)

Model
ATV11HU09M2E

Display Type
LED status and parameter display

Communication Port
Option for RS485 (Modbus) communication expansion

TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

TELEMECANIQUEATV11HU09M2E Compact Altivar 11 Variable Frequency Drive VFD Designed For LowPower ThreePhase Asynchronous AC Motors

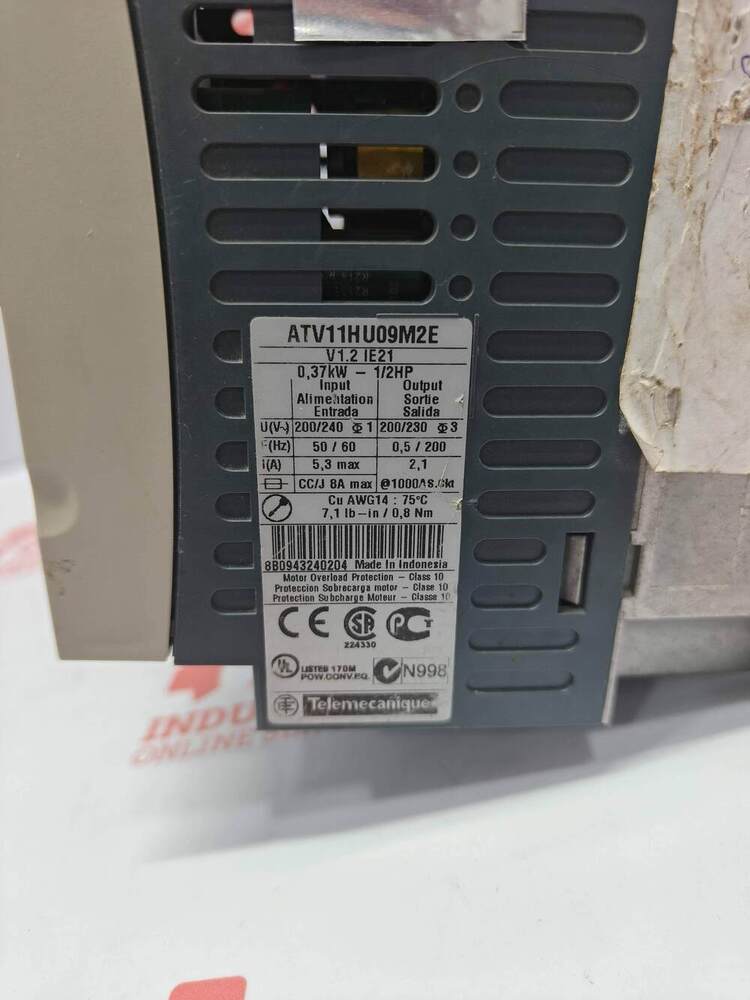

Core Specifications

Series Altivar 11 ATV11

Power Rating 037 kW 05 HP

Input Voltage 200240V SinglePhase 5060 Hz

Max Input Current 53 A

Output Voltage 200230V ThreePhase

Max Output Current 21 A

Output Frequency Range 05 to 200 Hz

Protection Rating IP20

Integrated Filter Features a builtin EMC filter

Efficient Motor Control

The ATV11HU09M2E delivers precise control for three-phase AC motors using voltage-to-frequency (V/F) scalar control. Adjusting output frequency and voltage allows users to optimize motor speed and torque for diverse applications, ensuring energy efficiency and extending equipment lifespan.

Robust Safety and Reliability

This VFD is equipped with comprehensive safety features, including overvoltage, undervoltage, short-circuit, overtemperature, and overload protection. Its IP20 rating, along with a sturdy plastic enclosure and metal heat sink, make it safe and reliable for industrial environments, provided proper installation.

Installation and Integration

The compact, panel-mountable drive, weighing about 1.1 kg, is easy to install in existing control panels. An integral LED display offers status and parameter feedback, and communication expansion via RS485 (Modbus) is available for enhanced connectivity in industrial automation systems.

FAQ's of TELEMECANIQUE ATV11HU09M2E Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors:

Q: How does the ATV11HU09M2E Variable Frequency Drive operate with three-phase asynchronous AC motors?

A: The ATV11HU09M2E VFD controls the speed and torque of low-power three-phase asynchronous AC motors by adjusting the output voltage and frequency according to the required application, making it suitable for conveyors, fans, pumps, and other small industrial machines.

Q: What safety features are integrated into the Altivar 11 VFD?

A: The drive is equipped with built-in protections against overvoltage, undervoltage, short-circuit, overtemperature, and overload conditions, which help ensure safe and trouble-free operation in demanding industrial settings.

Q: When should I use the Altivar 11 ATV11HU09M2E VFD?

A: This VFD is recommended for controlling low-power applications, such as small pumps, fans, and conveyors, where variable speed or torque is required for process optimization and energy savings.

Q: Where can I mount the ATV11HU09M2E VFD, and what environmental conditions should I consider?

A: It is designed for panel mounting in indoor industrial environments. The device should be used in locations with ambient temperatures between -10C and +40C (up to +60C with derating), humidity between 5%-95% (non-condensing), and without exposure to water or excessive dust, due to its IP20 rating.

Q: What is the process for installing and operating this compact VFD?

A: Installation involves mounting the drive on a panel, wiring the single-phase input and three-phase output, setting parameters via the LED display, and configuring any necessary communication options, such as RS485 for Modbus integration.

Q: How does the Altivar 11 VFD benefit users in industrial applications?

A: The VFD allows for precise and energy-efficient motor control, contributing to equipment longevity, reduced operating costs, and adaptable performance for varying process demands.
