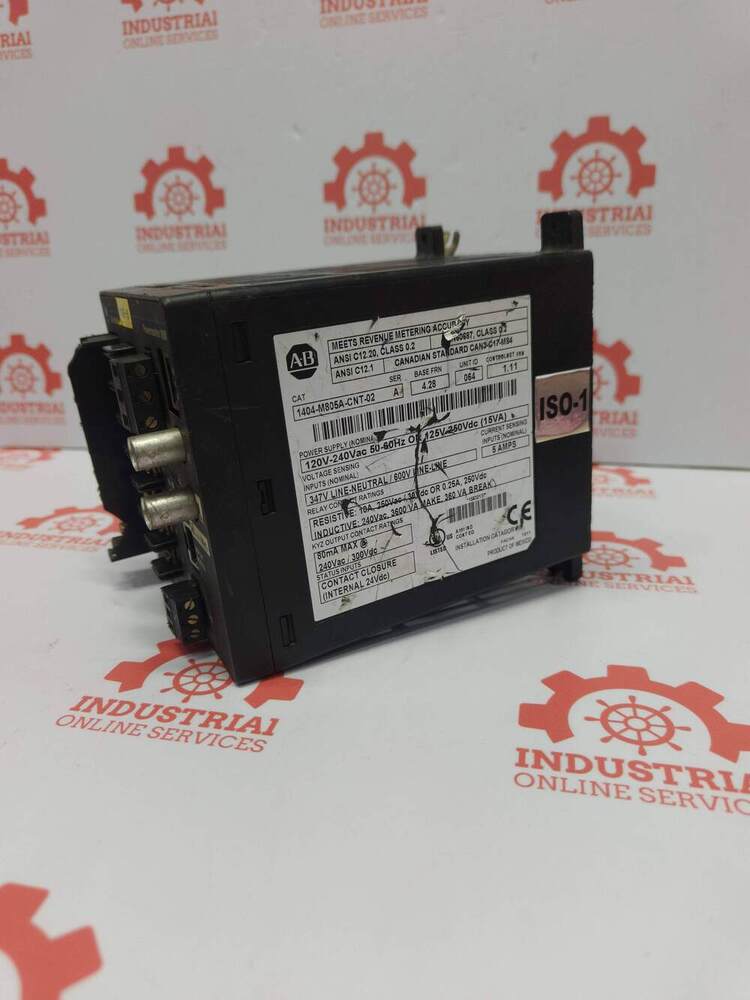

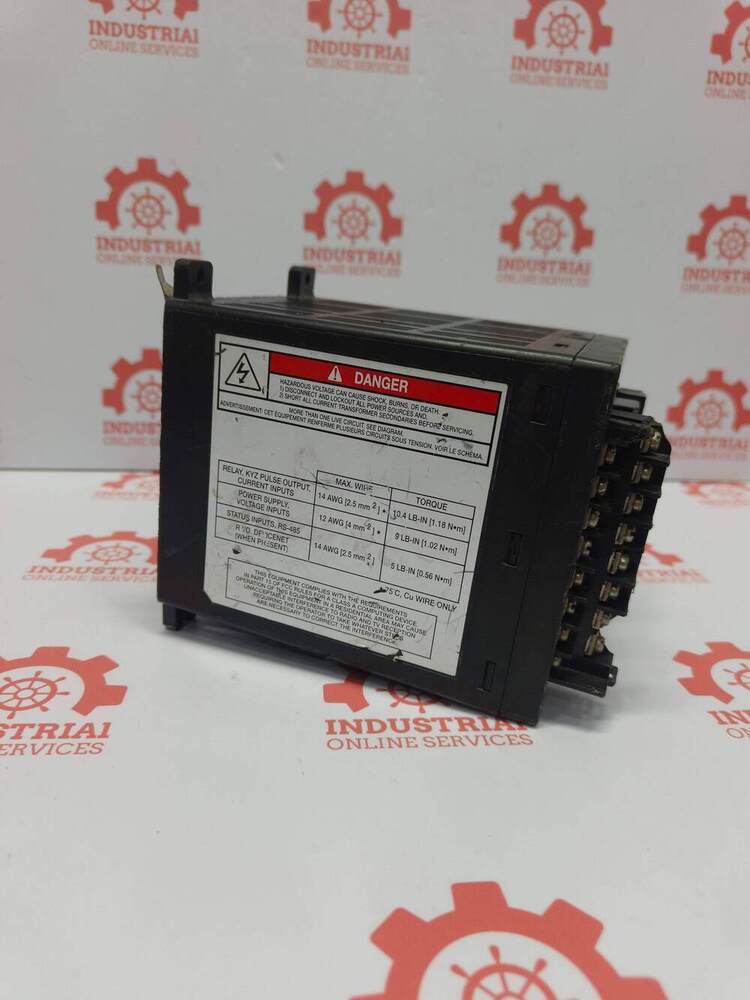

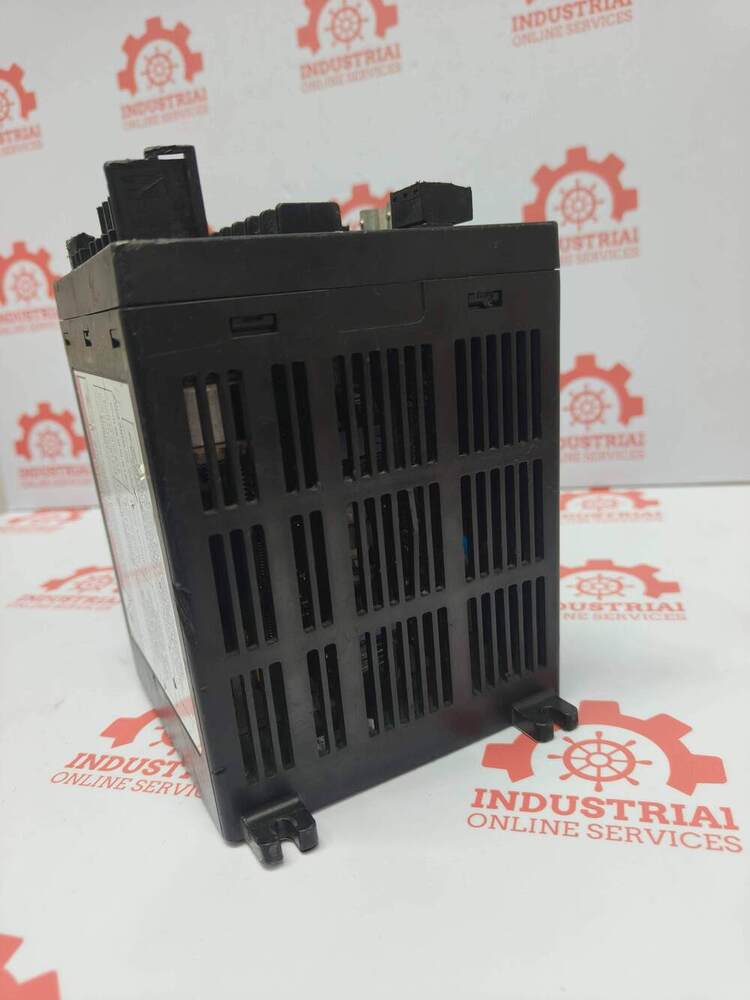

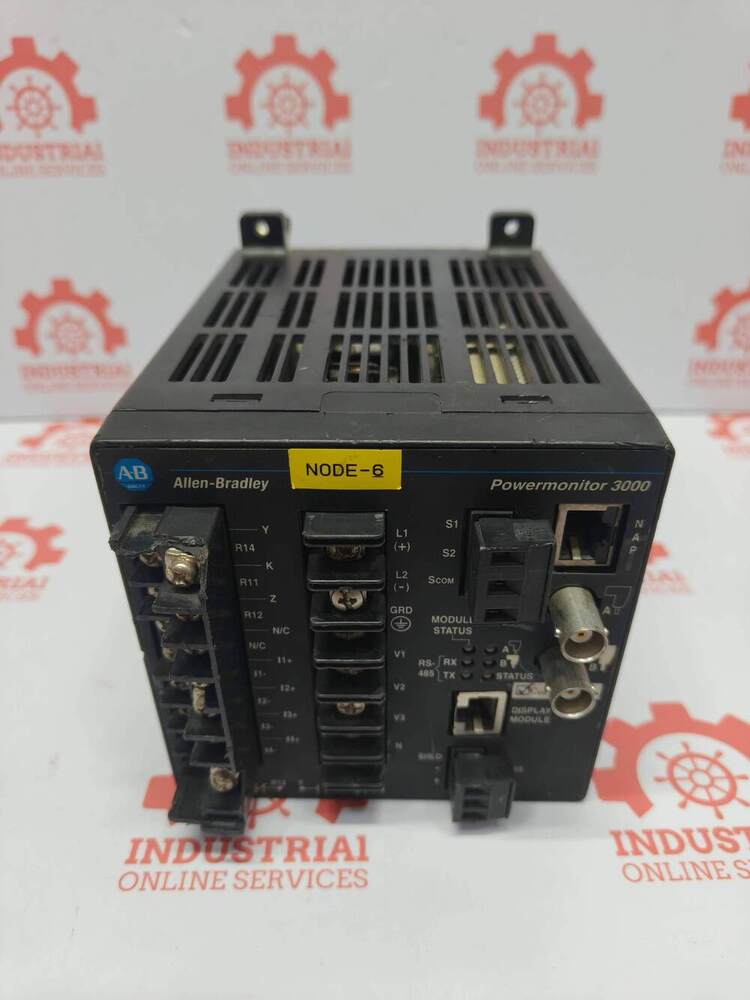

ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module

Name: ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module Specification

Chip Type
Power Monitoring Integrated Circuit

Model No
1404-M805A-CNT-02

I/O Cards Type
Master Module / Power Monitoring I/O

Condition
Used / Refurbished

Compatible Port/Slot
DIN Rail Mount / Standard Allen Bradley IO Connections

Use
Industrial Power Monitoring

OS Supported
Proprietary / Allen Bradley Control System

Operating Temperature
0C to 60C (32F to 140F)

Weight
Approx. 2.0 kg

Compatibility
Compatible with Allen Bradley PowerMonitor System expansion modules

Series
PowerMonitor 3000

Enclosure Type
IP20

Input Frequency
50/60 Hz

Voltage Rating
120/240V AC Power Supply

Communication Ports
RS-232, RS-485, Fiber Optic, Optional Ethernet

Mounting Type
Panel / DIN Rail Mountable

Data Logging
Supports event, energy and demand data logging

Dimensions
Approx. 172mm x 160mm x 120mm

Firmware Upgradeable
Yes

Time Synchronization
Supports time synchronization with host system

Applications
Incoming Power Monitoring, Energy Management, Load Profiling

Display
LED Status Indicators

ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module

ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module

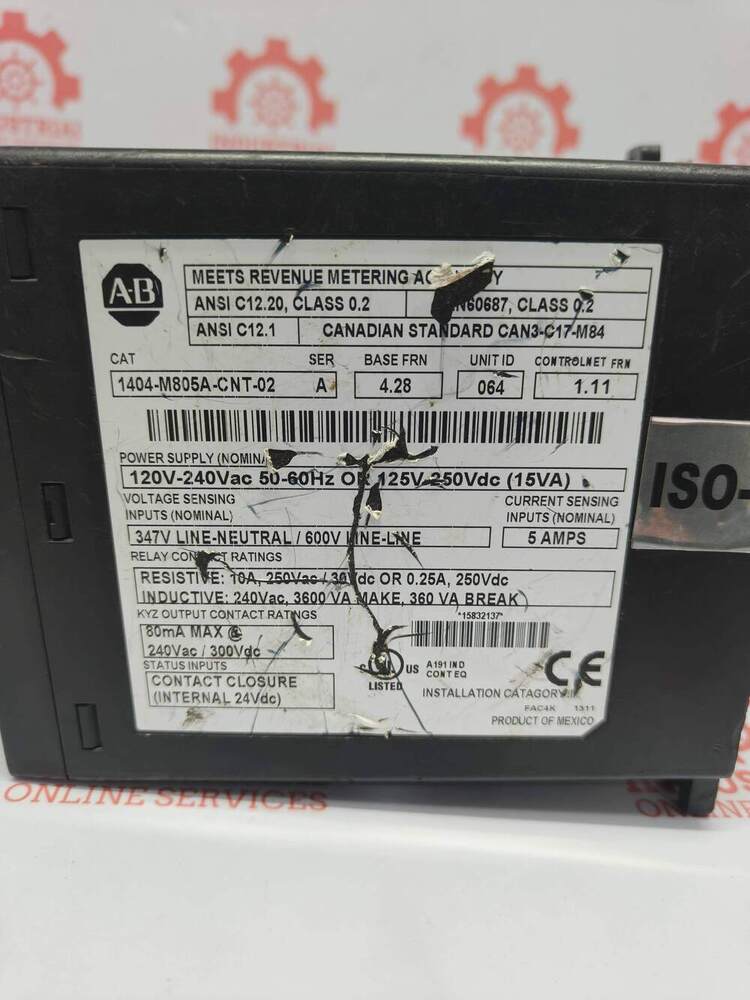

Technical Specifications

Product Line: PowerMonitor 3000
Accuracy: Revenue-grade metering compliance meeting ANSI C12.20 Class 0.2 standards (0.2% accuracy).
Communication Interface: Equipped with a ControlNet network connection port (-CNT designation).
Power Supply Requirements: Handles 120V to 240V AC (50/60 Hz) or 125V to 250V DC (15 VA).
Nominal Voltage Sensing Inputs: 347V Line-to-Neutral / 600V Line-to-Line.
Nominal Current Sensing Inputs: 5 Amps.
Output Ratings:
- Relay Contacts (Resistive): 10A at 30V DC / 250V AC.
- KYZ Pulse Output: 80 mA maximum at 240V AC / 300V DC.
Status Input: Contact closure powered by an internal 24V DC loop.

Comprehensive Energy Management

The PowerMonitor 3000 Master Module delivers precise monitoring for incoming power, making it suited for energy management and load profiling. Its data logging capabilities help businesses optimize energy usage and reduce costs. Time synchronization with a host system ensures accurate records for audits and compliance.

Versatile Communication and Compatibility

Equipped with RS-232, RS-485, fiber optic, and optional Ethernet ports, this module offers exceptional flexibility for integration with diverse industrial control systems. Its panel and DIN rail mounting options streamline installation, while easy compatibility with expansion modules boosts scalability.

FAQ's of ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 Master Module:

Q: How is the ALLEN BRADLEY 1404-M805A-CNT-02 PowerMonitor 3000 installed?

A: The PowerMonitor 3000 Master Module can be mounted on a panel or a DIN rail, utilizing standard Allen Bradley IO connections for straightforward integration into new or existing control systems.

Q: What types of data can the PowerMonitor 3000 log and monitor?

A: This module supports event, energy, and demand data logging, providing comprehensive insights into power consumption patterns and system performance for effective energy management.

Q: When should the PowerMonitor 3000 be used in industrial settings?

A: The module is ideal for applications requiring robust incoming power monitoring, energy management, and load profiling, especially in environments demanding high reliability and data accuracy.

Q: Where can the module be deployed within a facility?

A: It is designed for installation within industrial control panels or switchboards, mounted securely via panel or DIN rail to ensure accessibility for operation and maintenance.

Q: What are the benefits of using this PowerMonitor 3000 in energy management?

A: Implementing the PowerMonitor 3000 helps identify energy inefficiencies, monitor power quality, and support load profiling, ultimately lowering operational costs and facilitating informed decision-making.

Q: How does the module communicate with other systems?

A: Communication is enabled via RS-232, RS-485, fiber optic, or optional Ethernet ports, making it adaptable to various network configurations for real-time monitoring and data exchange.

Q: Is the PowerMonitor 3000's firmware upgradeable, and what is the process?

A: Yes, the firmware is upgradeable to ensure continued compatibility and feature enhancements. Updates are typically managed through proprietary Allen Bradley control system tools in coordination with your system administrator.
