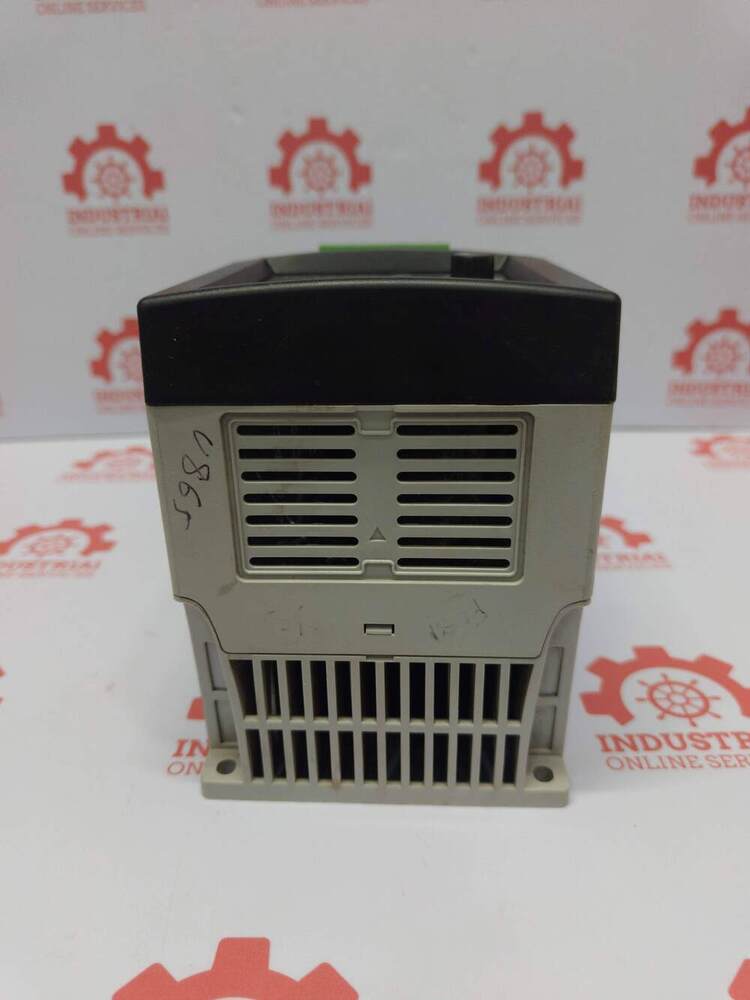

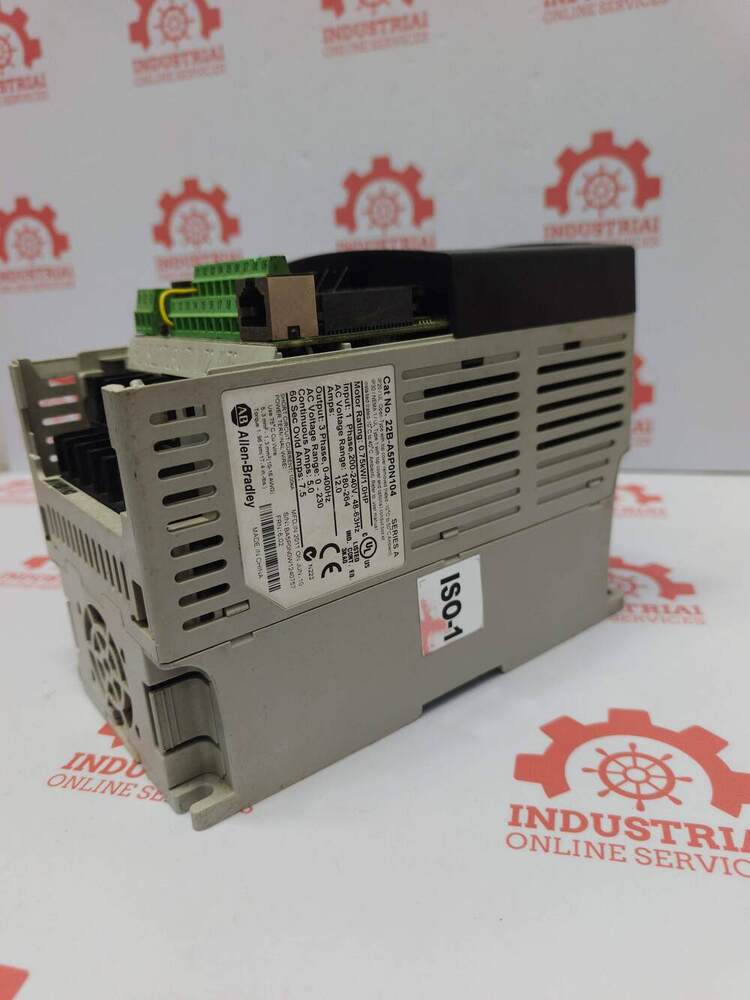

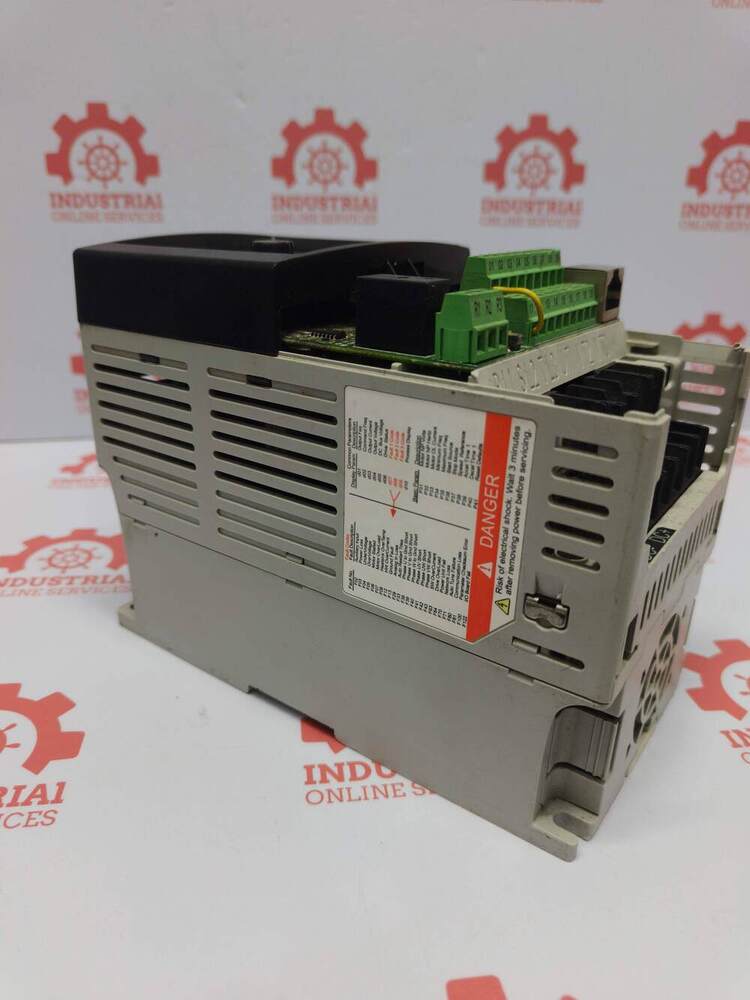

ALLEN BRADLEY 22B-A5P0N104 PowerFlex 40 Adjustable Frequency AC Drive

Name: ALLEN BRADLEY 22B-A5P0N104 PowerFlex 40 Adjustable Frequency AC Drive
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 22B-A5P0N104 PowerFlex 40 Adjustable Frequency AC Drive Specification

Chip Type
Integrated Circuit

Model No
22B-A5P0N104

I/O Cards Type
Digital / Analog Inputs & Outputs

Condition
Used/Refurbished

Compatible Port/Slot
Terminal Connection

Use
Industrial Motor Speed Control

OS Supported
Independent (Drive Hardware)

Display Type
LED Digital Display

Power Rating
2.2 kW (3 HP)

Dimension
151 mm x 100 mm x 175 mm (H x W x D)

Ambient Temperature
-10C to 50C

Protection
Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault

Output Current
5.0A

Input Voltage
380-480V AC, 3 Phase

Series
PowerFlex 40

Frequency Range
0-400 Hz

Output Voltage
0-480V AC

Control Method
V/Hz (Volts per Hertz), Sensorless Vector Control

Programming Interface
Keypad, RS485, Optional Communication Module

Enclosure Rating
IP20

Weight
1.5 kg

Mounting Type
Panel Mount

ALLEN BRADLEY 22B-A5P0N104 PowerFlex 40 Adjustable Frequency AC Drive Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ALLEN BRADLEY 22B-A5P0N104 PowerFlex 40 Adjustable Frequency AC Drive

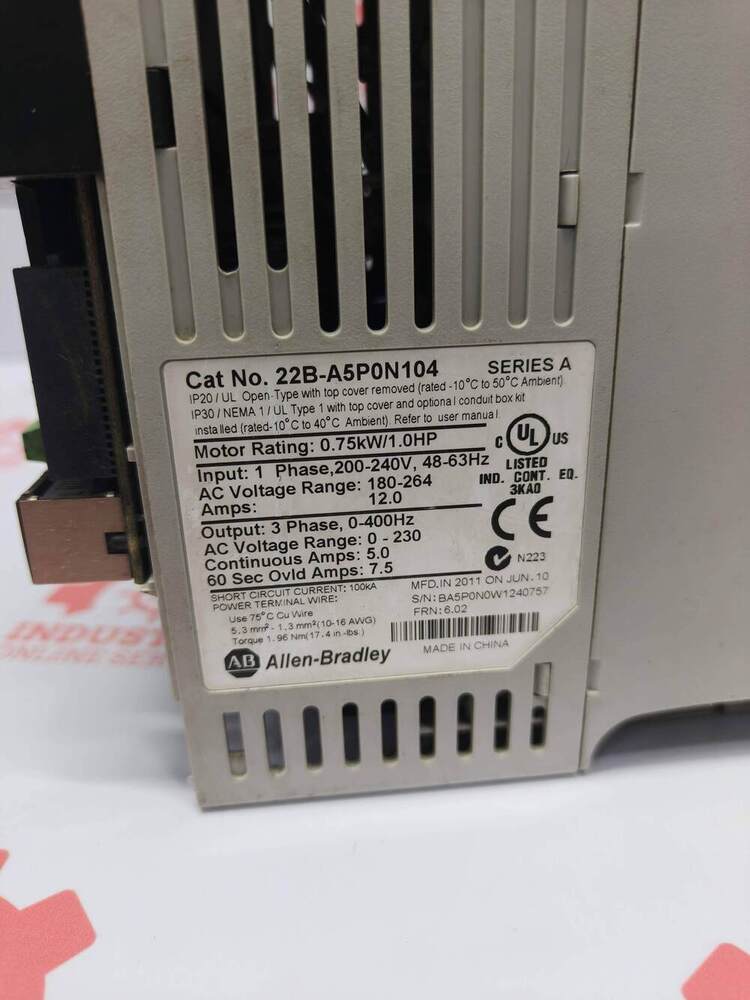

ALLEN BRADLEY 22BA5P0N104 PowerFlex 40 Adjustable Frequency AC Drive

Technical Specifications

Power Performance 075 kW 1 HP power rating with an output current of 50 Amps It features Sensorless Vector Control SVC and a 150 overload capacity for up to 1 minute

Electrical Input 200240V AC 1Phase operating at a 5060 Hz frequency It requires a 12A input current

Electrical Output 0230V AC 3Phase with a fully programmable output frequency range of 0400 Hz

Physical Form Factor Frame Size B designed for panel mounting or DIN rail installations Enclosure rating is IP20 NEMA Type Open Dimensions are 100mm x 180mm x 136mm

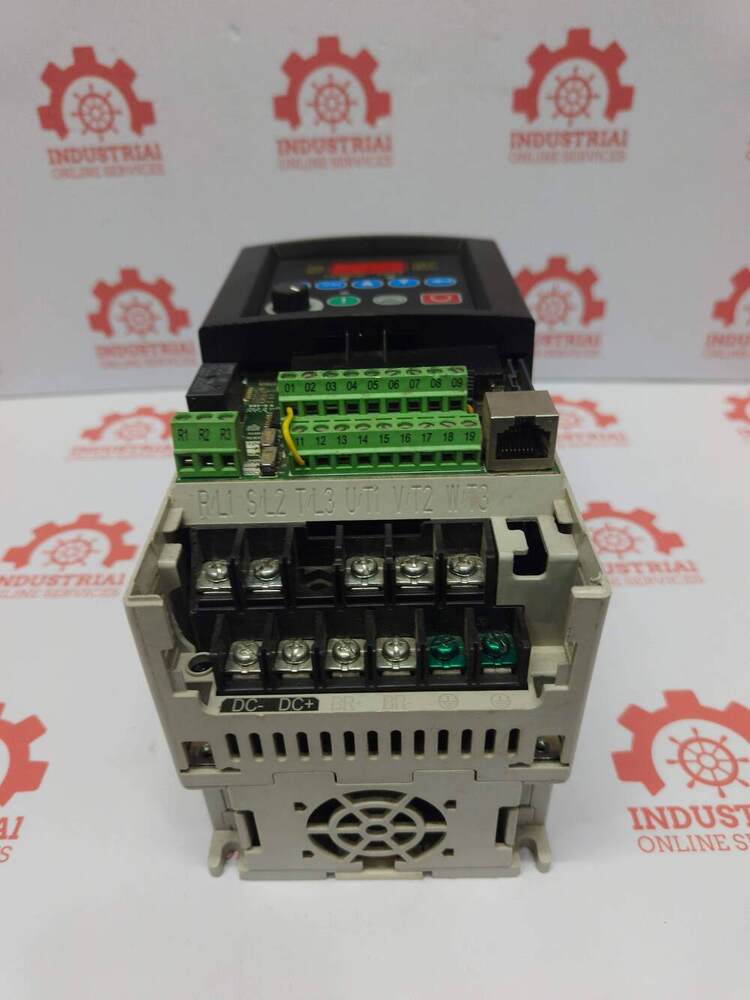

Interface IO Builtin fixed digital keypad and LED display It features 7 digital inputs 3 analog inputs and 1 relay output

Communications Integrated RS485 protocol port supporting Modbus RTU

Filtering Braking Contains a standard Brake IGBT mechanism but does not include an integrated CEcompliant EMC filter
