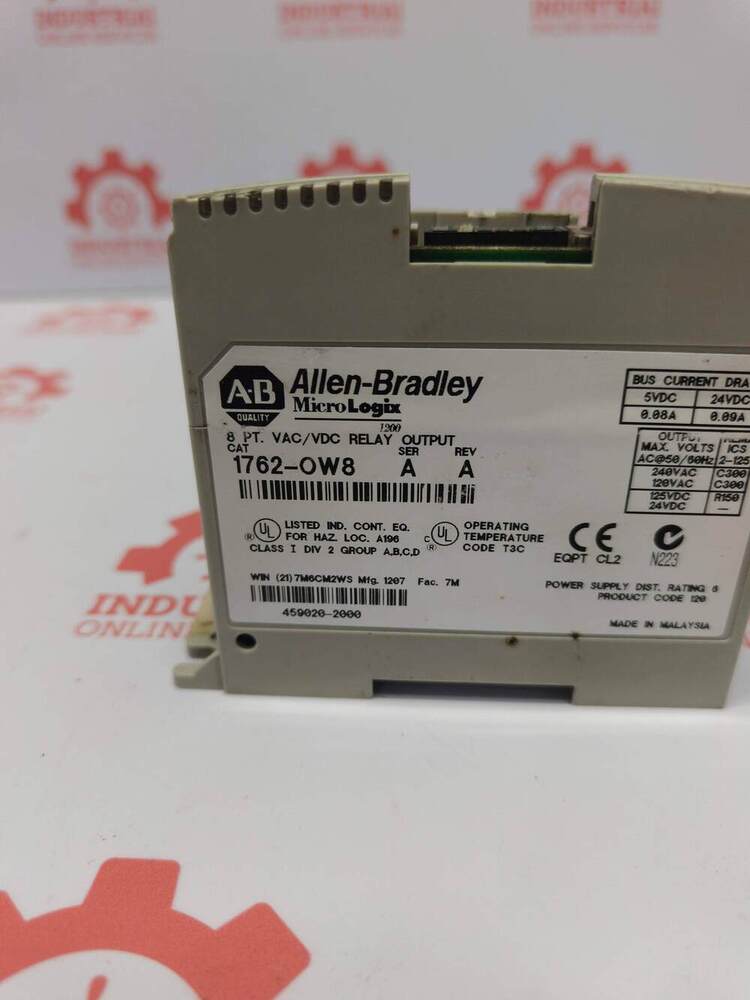

ALLEN BRADLEY 1762-OW8 8-Point Digital Relay Output Expansion Module

About ALLEN BRADLEY 1762-OW8 8-Point Digital Relay Output Expansion Module

Key Technical Specifications

•  8 Normally-Open (Form A) relay channels grouped into 2 isolated commons (4 channels per group).
• Operating Voltage: 5 to 265 V AC / 5 to 125 V DC.
• Current Capacities: Max 2.5 A per point, 8 A maximum per common, and up to 16 A continuous current per entire module.
• Bus Current Draw: 90 mA @ 24V DC / 80 mA @ 5V DC.
• Signal Delay: 10 ms maximum for both turn-on and turn-off response times.
• Mounting: 35mm DIN rail or explicit panel mounting tabs.
• Dimensions & Weight: 90 x 87 x 40.4 mm; approximately 228 grams (0.50 lbs).
