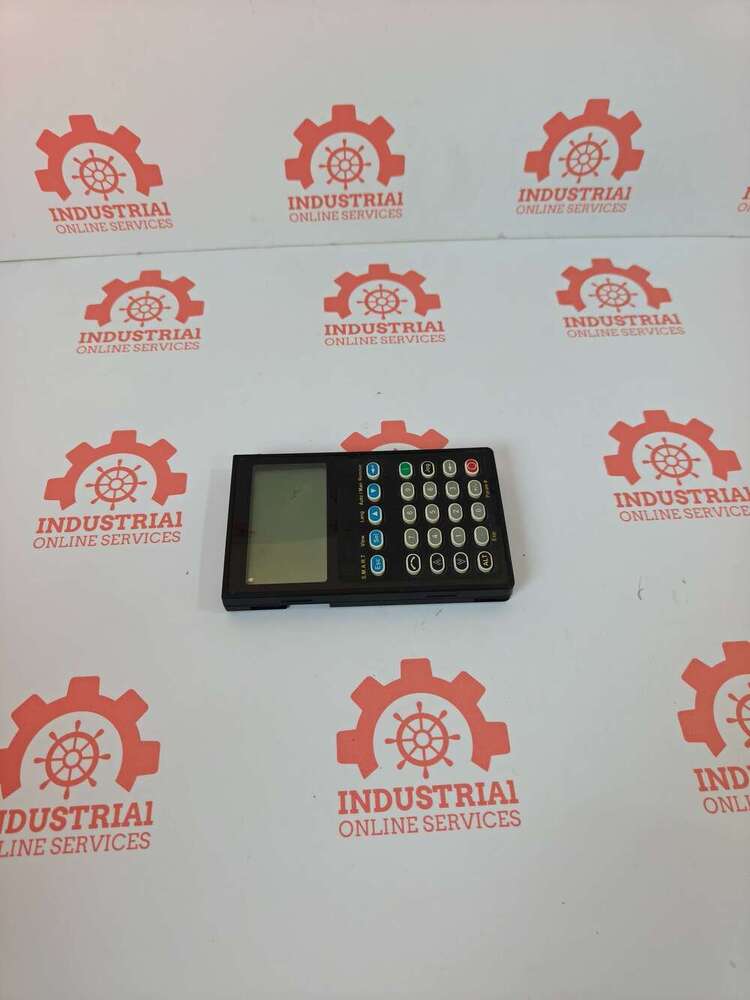

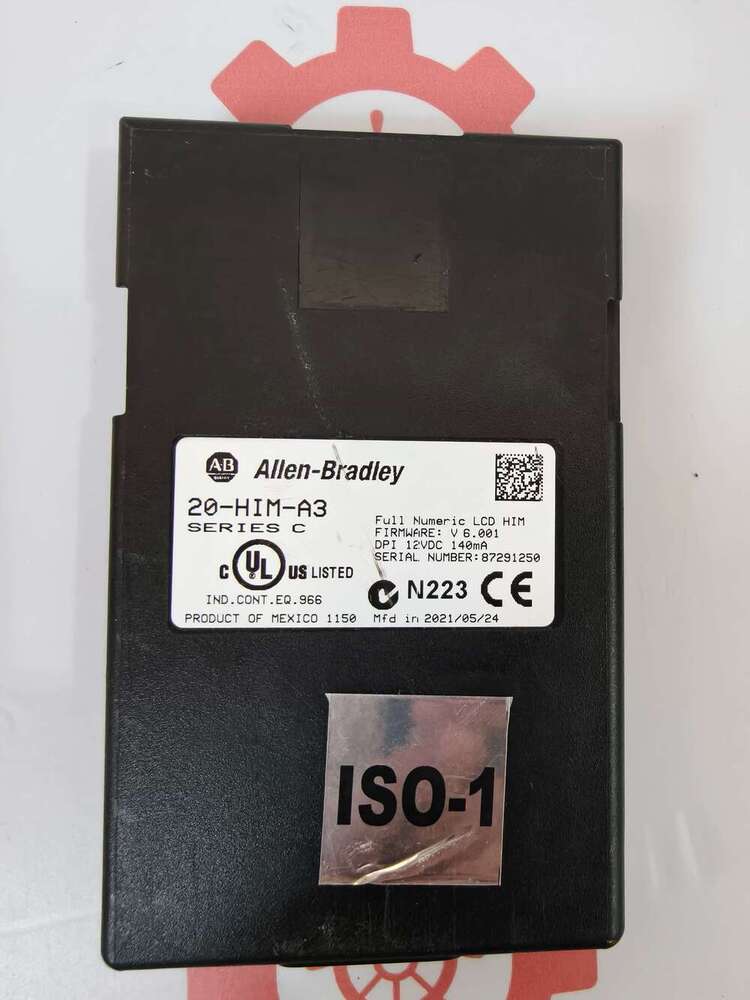

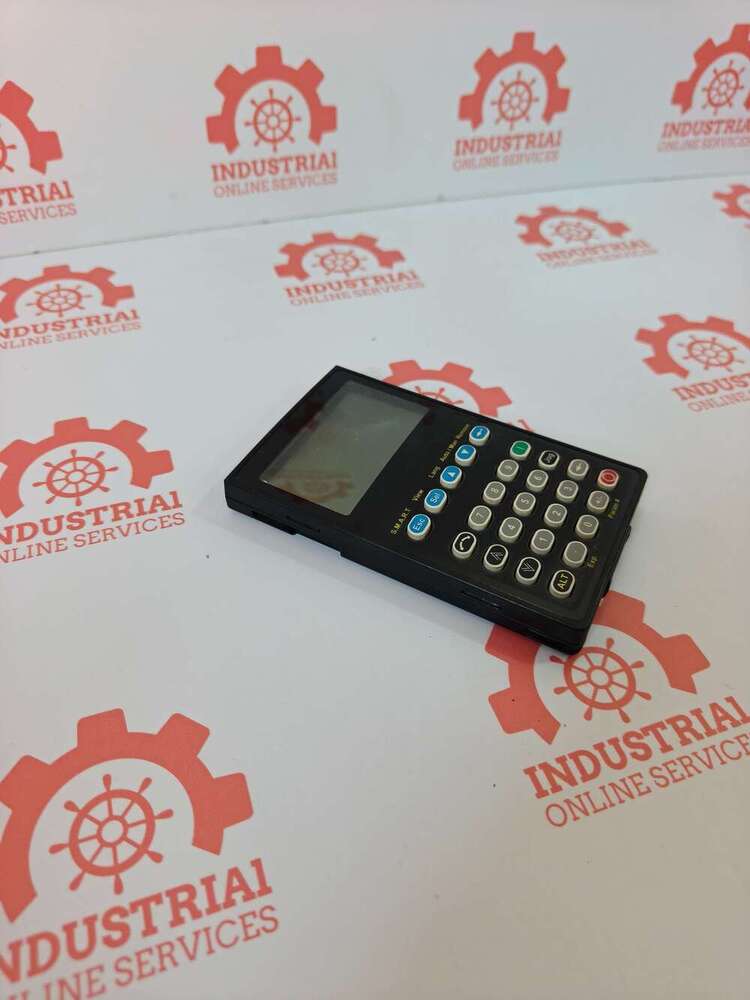

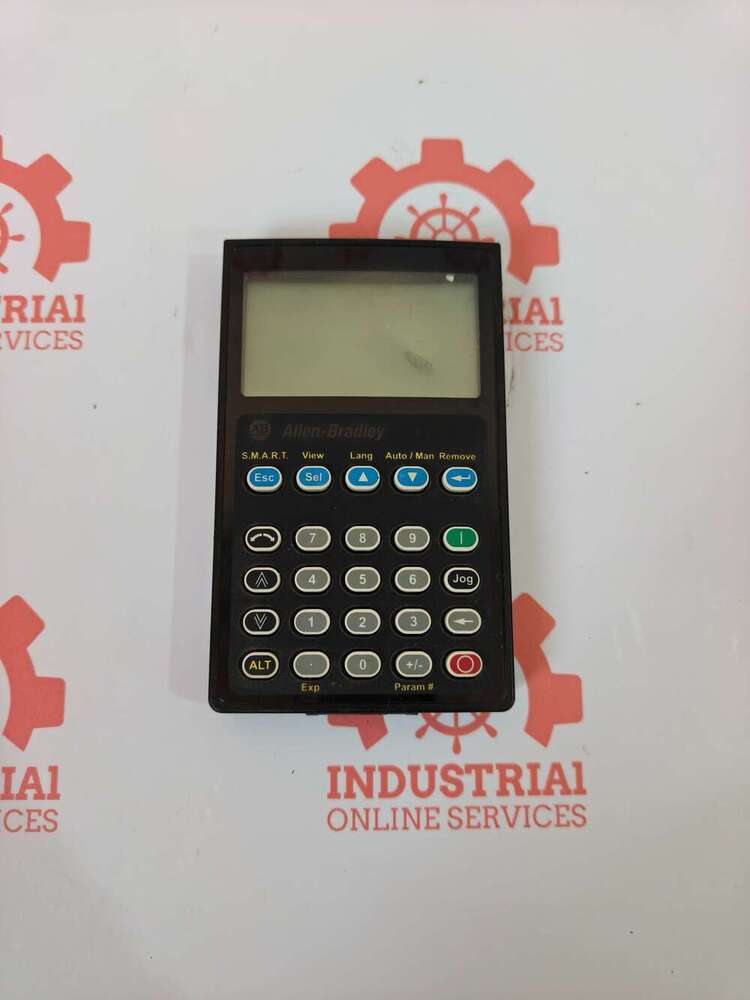

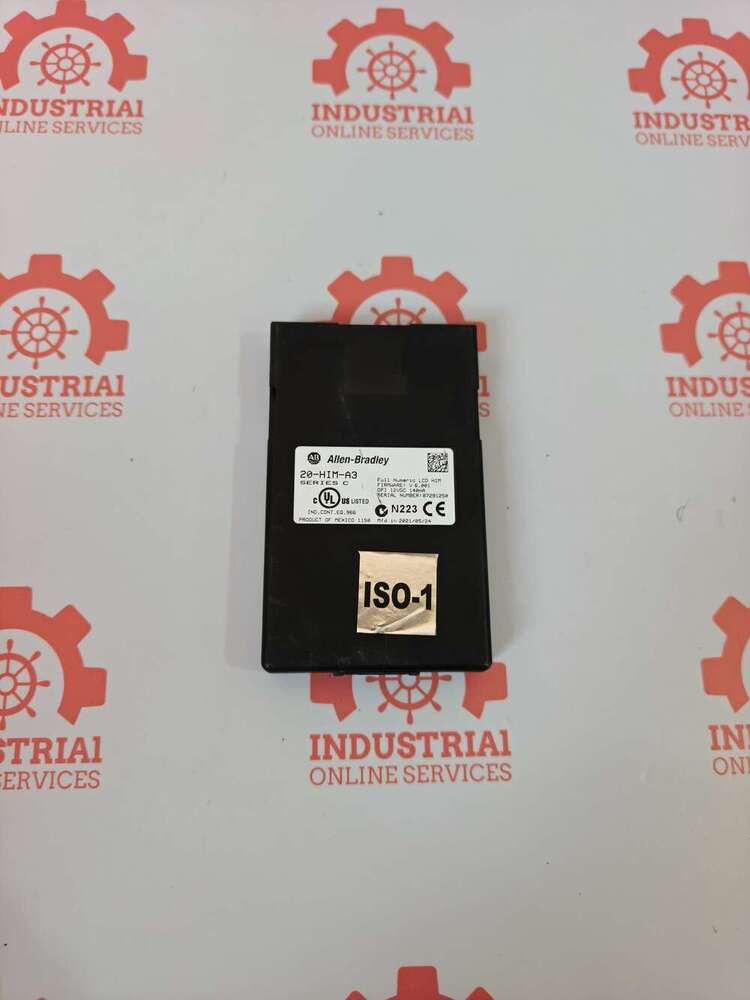

Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module Specification

Chip Type
Integrated digital control chip

Model No
20-HIM-A3

Condition
New

Compatible Port/Slot
Human Interface Module (HIM) Slot on PowerFlex Drives

Use
For operation, monitoring, and configuring PowerFlex Architecture Class AC Drives

OS Supported
Panel firmware based; does not require external OS

Ingress Protection
NEMA/UL Type 1 (front panel)

Supply Voltage
Powered from drive

Display Resolution
128 x 64 pixels

Dimensions
110 mm x 49 mm x 33 mm (approximate)

Compatibility
Supports PowerFlex 70, 700, 700S, 750 family drives and related architecture-class products

Functionality
Parameter setting, monitoring, diagnostics, device configuration

Keypad
16-key tactile membrane

Environmental Ratings
Operating temperature: 0C to +50C

Communication Interface
RS-232 (via supplied cable), direct insertion to drive

Mounting
Panel mount or door mount with bracket

Display
TFT monochrome LCD with LED backlight

Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module

Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module

Key Technical Specifications

Display Type: Multilingual LCD screen
Operator Interface: Full-numeric keypad for precise command and parameter data entry
Operating Voltage: 12V DC
Current Consumption: 140 mA
Mounting Options: Can be locally drive-mounted or operated as a handheld interface device

Streamlined Drive Control

The 20-HIM-A3 Human Interface Module enables precise configuration and monitoring of PowerFlex Architecture Class AC Drives. Its user-friendly keypad and clear monochrome display facilitate rapid adjustments and troubleshooting, minimizing downtime and improving operational efficiency. Direct compatibility with major PowerFlex models ensures broad applicability within industrial automation setups.

Flexible Mounting and Connectivity

Designed for adaptability, the module can be panel- or door-mounted using an included bracket, or inserted directly into the HIM slot of supported drives for ease of installation. Communications are handled via RS-232 or direct drive connection, offering robust and versatile integration within varied machine control environments.

Reliable Performance and Protection

Built to operate in demanding industrial conditions, the 20-HIM-A3 offers operation from 0C to +50C and protection to NEMA/UL Type 1 standards on the front panel. It draws power from the drive itself, reducing wiring complexity and enhancing system reliability throughout its application lifecycle.

FAQ's of Allen Bradley 20-HIM-A3 PowerFlex Architecture Class Human Interface Module:

Q: How do I install the Allen Bradley 20-HIM-A3 Human Interface Module?

A: Installation can be performed by directly inserting the module into the dedicated Human Interface Module (HIM) slot on compatible PowerFlex drives or by panel/door mounting using the supplied bracket. The RS-232 cable facilitates communication if not directly slotted to the drive.

Q: What is the purpose of the 20-HIM-A3 Human Interface Module?

A: The primary use of this module is for operational control, parameter setting, real-time monitoring, diagnostics, and configuration of supported PowerFlex AC Drives, enhancing drive management and troubleshooting capabilities.

Q: When should I use the 20-HIM-A3 rather than a remote control interface?

A: The 20-HIM-A3 is ideal when direct interaction with the drive is required for quick adjustments, diagnostics, or during system setup. It eliminates the need for external devices by connecting directly to the drive or control panel.

Q: Where is the 20-HIM-A3 most effectively utilized within an automation system?

A: This module is best applied within control cabinets or operator panels that house PowerFlex 70, 700, 700S, or 750 family AC drives, providing a localized, robust means of drive management with minimal installation effort.

Q: What is the process for configuring AC drives using the 20-HIM-A3?

A: Users navigate through menu-driven parameters on the TFT monochrome LCD using the tactile keypad. Settings can be viewed, adjusted, and confirmed interactively, with real-time diagnostics and feedback displayed for immediate action.

Q: What are the key benefits of using this Human Interface Module?

A: Key benefits include simplified drive management, faster troubleshooting, real-time parameter monitoring, robust panel integration, and compatibility with a wide range of PowerFlex architecture-class drives, all while ensuring reliable operation under demanding industrial conditions.
