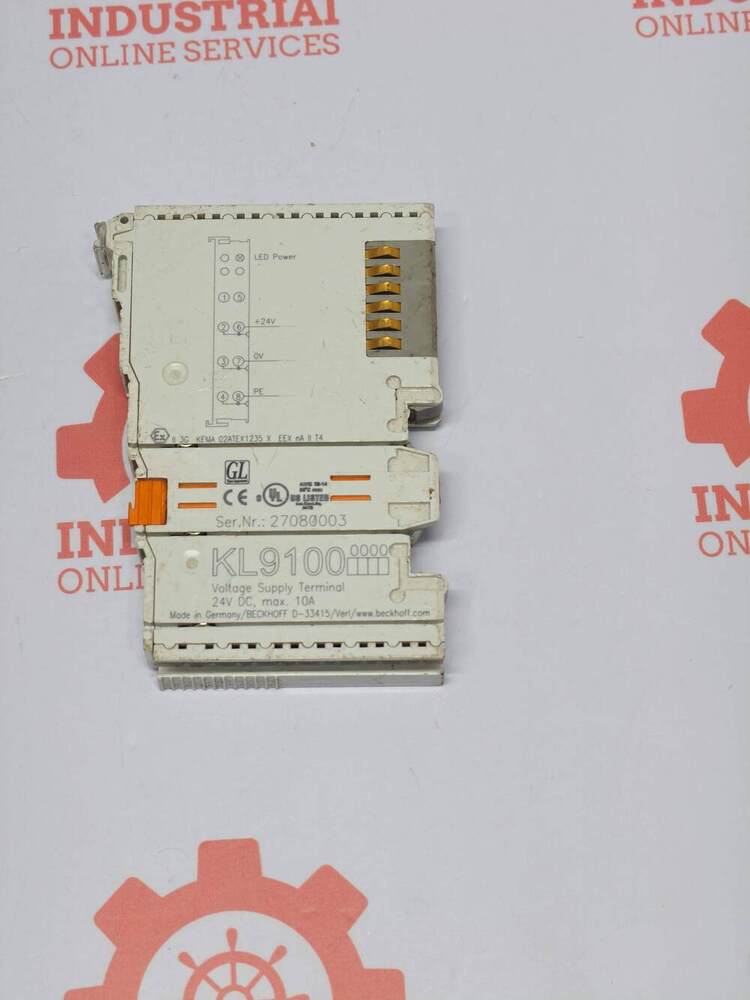

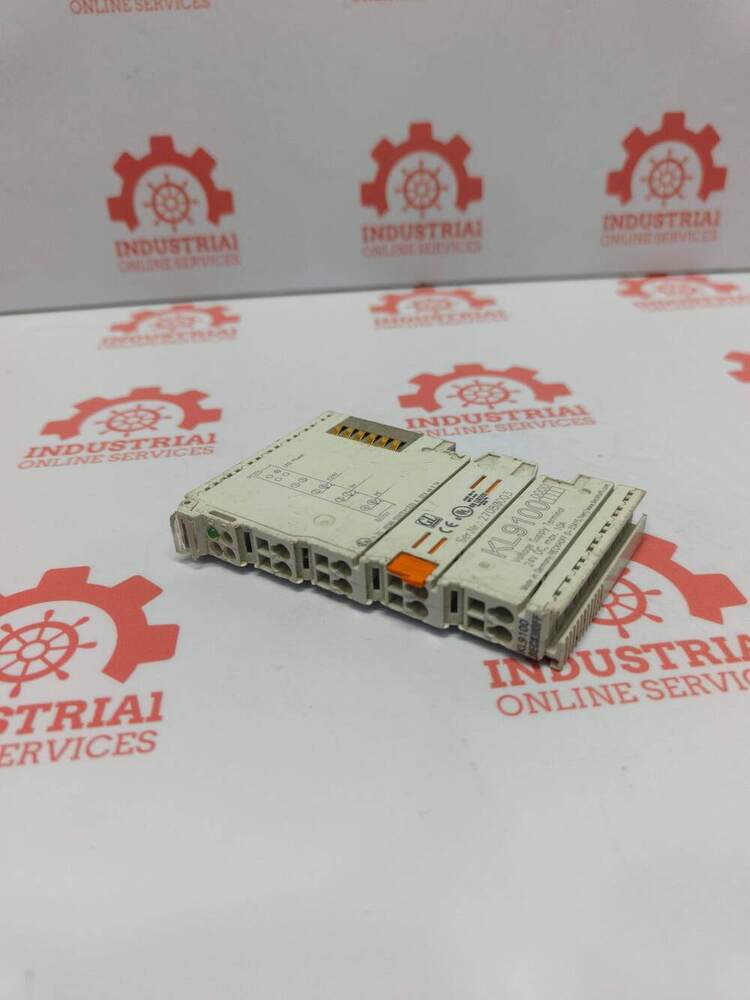

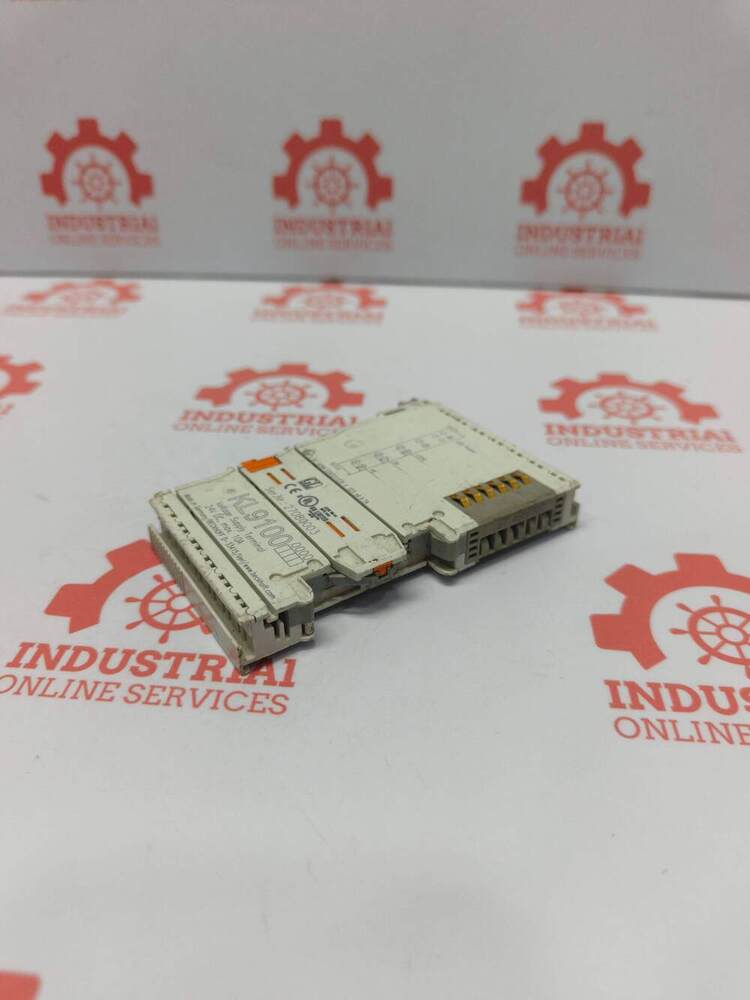

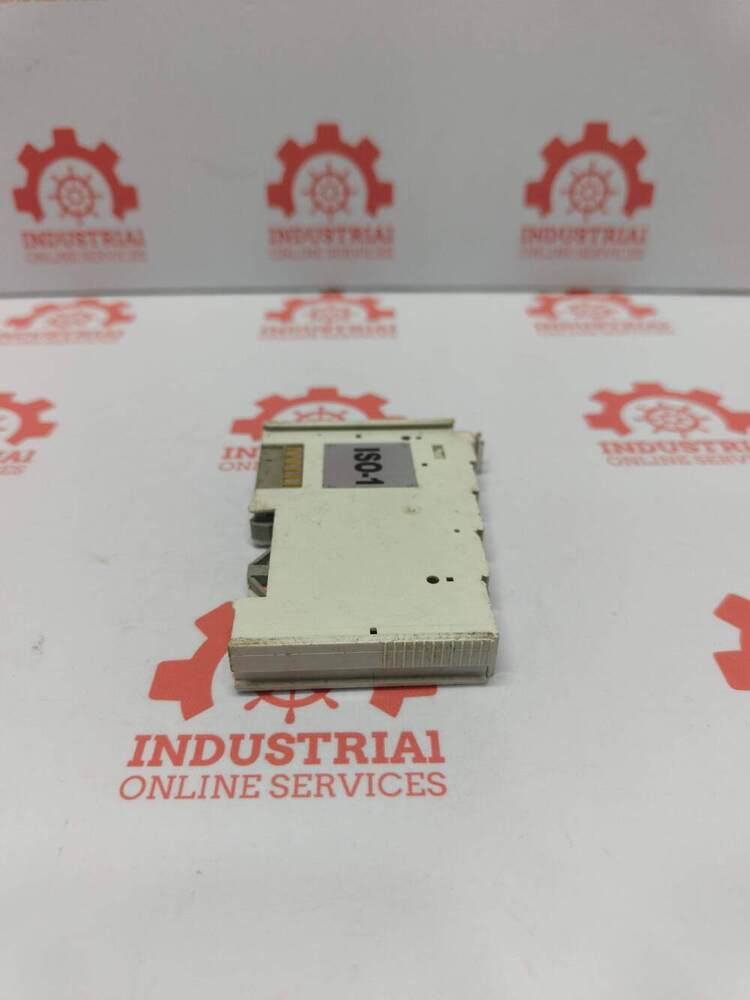

BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal)

Name: BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal)
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal) Specification

Output Voltage
24 V DC

Mounting Type
DIN rail mounting

Humidity
Max. 95% non-condensing

Efficiency
> 95%

Protection Level
IP20

Phase
Single (DC)

Rated Voltage
24 V DC

Operating Temperature
-25 C to +60 C

Input Current
Depends on connected system, typically max. 10A

Frequency
DC

Main Material
Plastic housing, electronic components

Processing Type
Electronic

Condition
New

Function
Potential supply for terminals, galvanically separated power supply

Application
Power feed terminal for Beckhoff Bus Terminal system

Dimension (L*W*H)
approx. 100 x 12 x 68 mm

Power Mode
DC

Voltage
24 V DC

Power Consumption
Minimal, depends on load

Wiring
Screw terminal connection

Isolation
Galvanically isolated power supply

Color
White/grey

Model
KL9100

Bus Type
Beckhoff Bus Terminal system

Terminal Type
Power Feed Terminal

Safety
CE certified

BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal)

BECKHOFF KL9100 24 V DC Potential Supply Terminal Power Feed Terminal

Key Features Technical Specifications

Nominal Voltage 24 V DC

Maximum Current Load 10 A

Electrical Isolation Yes isolating distinct power segments while looping through the internal Kbus communication

Status Indicators Integrated green power LED to indicate the presence of voltage

Housing Dimensions 12 mm x 100 mm x 68 mm weighing approximately 50 g

Mounting Standard 35 mm DIN rail installation

Operating Conditions Temperature tolerance from 25C to 60C

Industrial Certifications CE CCC UL ATEX IECEx DNV and cFMus

Advanced Power Feed Terminal for Industrial Automation

The KL9100 Potential Supply Terminal from BECKHOFF brings reliable and galvanically separated 24 V DC power directly to your Bus Terminal system. With its compact size and robust construction, it is engineered for efficient and continuous performance, even in demanding environments. The terminal ensures minimal power dissipation and high efficiency, making it a top choice for system integrators seeking dependable power distribution solutions.

Simplified Installation and Seamless Integration

The KL9100 features a user-friendly screw terminal connection and is designed for easy mounting on DIN rails. Suitable for diverse automation setups, it provides straightforward integration with other Beckhoff terminals. With its single-phase DC operation, you benefit from a hassle-free setup that saves time and boosts system flexibility, while maintaining a high level of electrical isolation for safety and reliability.

FAQ's of BECKHOFF KL9100 24 V DC Potential Supply Terminal (Power Feed Terminal):

Q: How is the BECKHOFF KL9100 terminal installed within a Beckhoff Bus Terminal system?

A: The KL9100 is mounted directly onto a DIN rail and connects to the system using its screw terminals. It seamlessly integrates into the Beckhoff Bus Terminal environment, providing a secure 24 V DC potential supply to downstream terminals.

Q: What benefits does the galvanically isolated power supply offer for automation systems?

A: The galvanically isolated power supply in the KL9100 eliminates ground loops and electrical interference, ensuring higher system stability and protecting sensitive electronics from potential damage.

Q: When should I use the KL9100 power feed terminal in my automation network?

A: Use the KL9100 whenever you require a separate 24 V DC potential supply for specific groups of terminals within your Beckhoff Bus Terminal system, or whenever electrical isolation between components is necessary to enhance operational safety.

Q: Where is the KL9100 best utilized within industrial applications?

A: The KL9100 is ideal for industrial automation panels, control cabinets, and any environment where the Beckhoff Bus Terminal system is in use and isolated, reliable 24 V DC power distribution is needed.

Q: What is the primary process for wiring the KL9100 terminal?

A: Wiring the KL9100 involves connecting 24 V DC input power and ground via screw terminals, then linking the output side to other Beckhoff terminals. Its clear marking and secure fastening make the process straightforward and safe.

Q: How does the minimal power consumption of the KL9100 benefit my system?

A: The KL9100 is designed for high efficiency (>95%) with minimal power loss, ensuring that most supplied energy is delivered to the connected terminals, reducing heat generation and operating costs.
