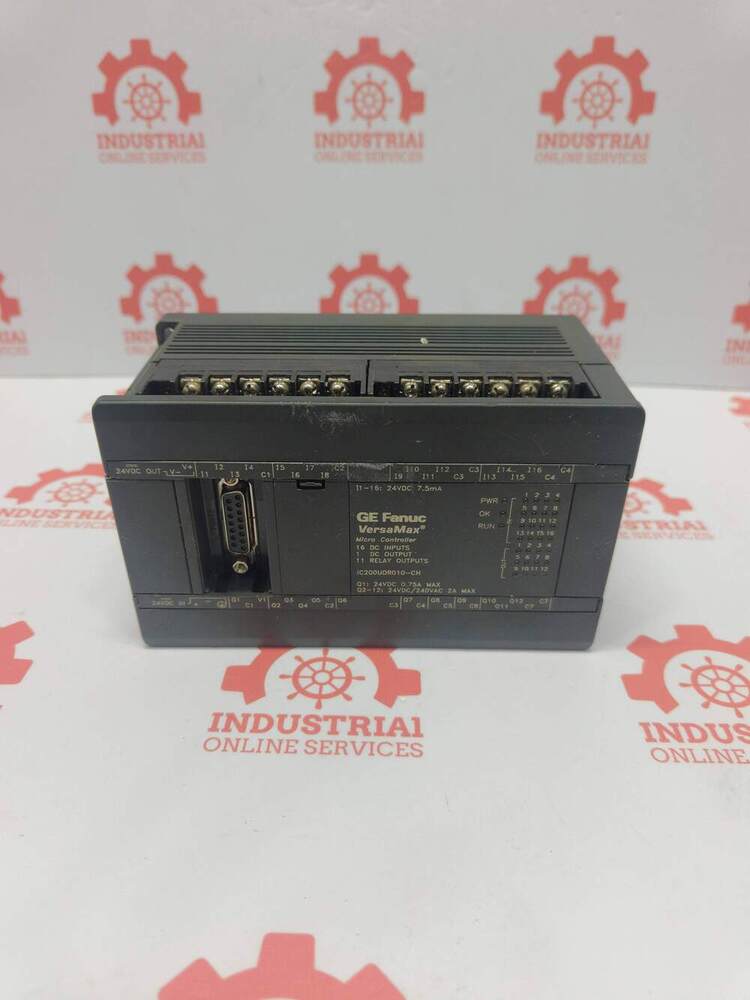

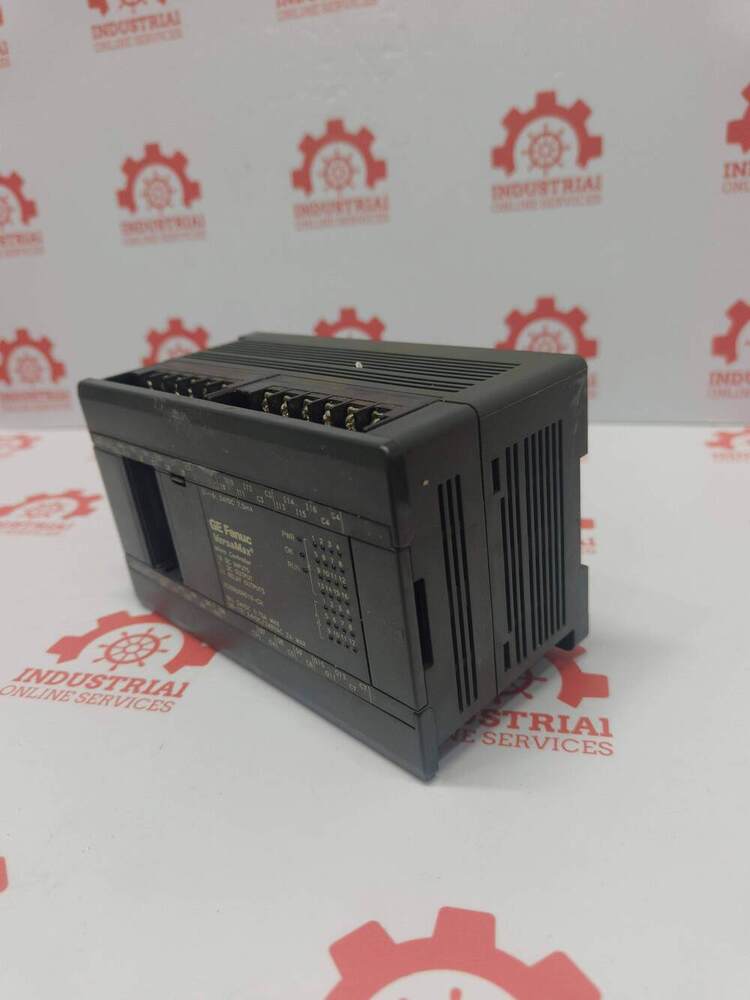

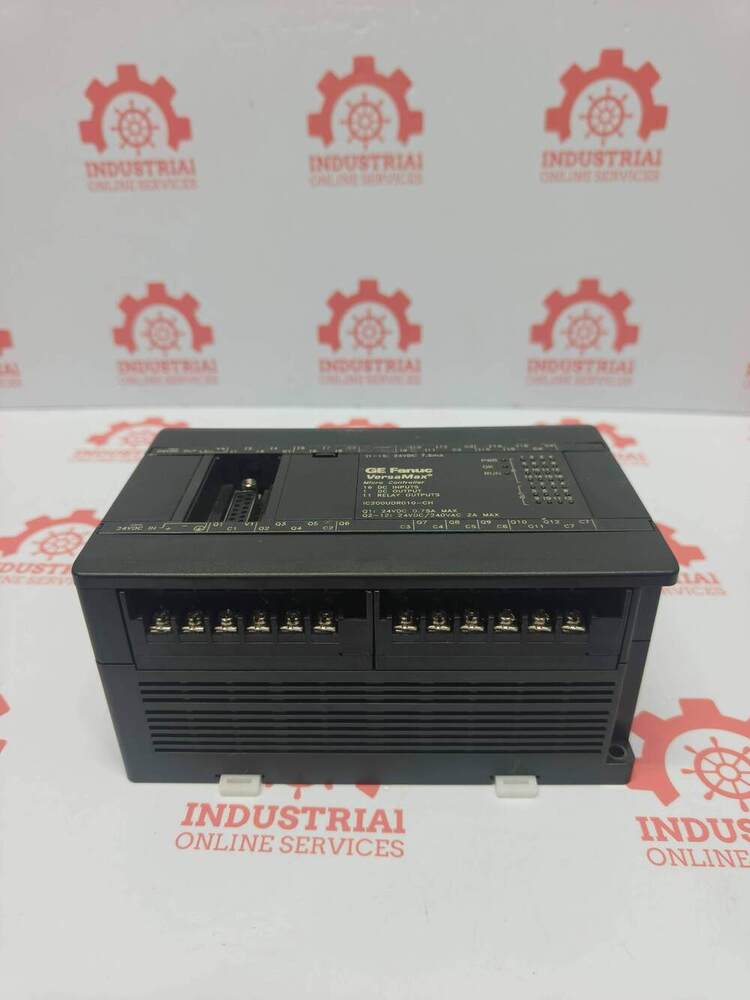

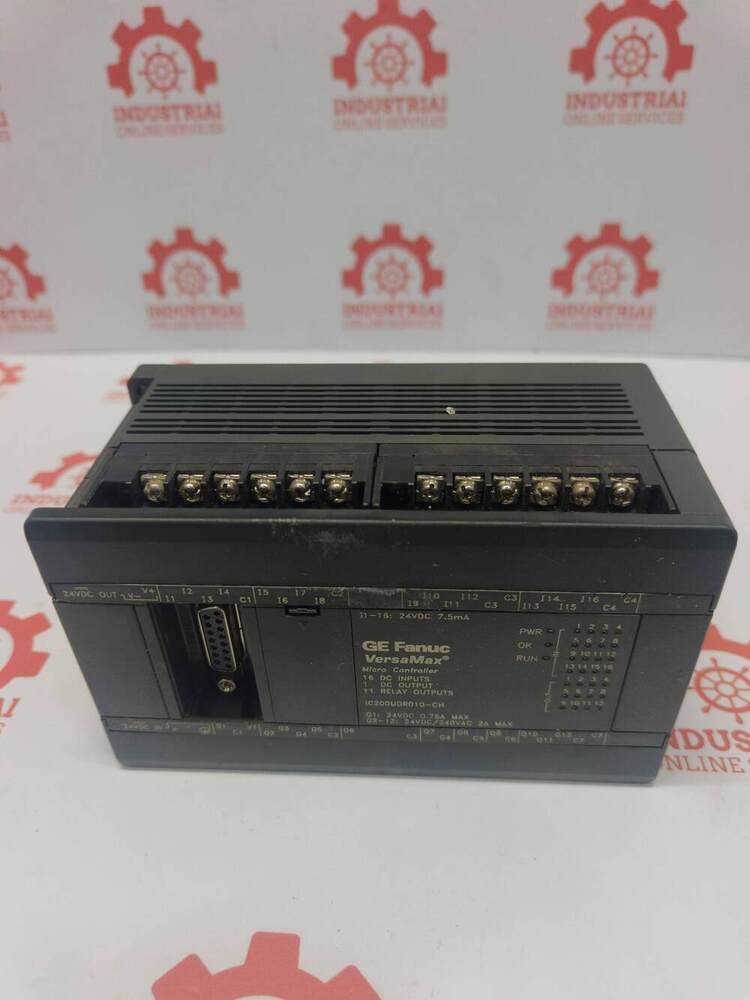

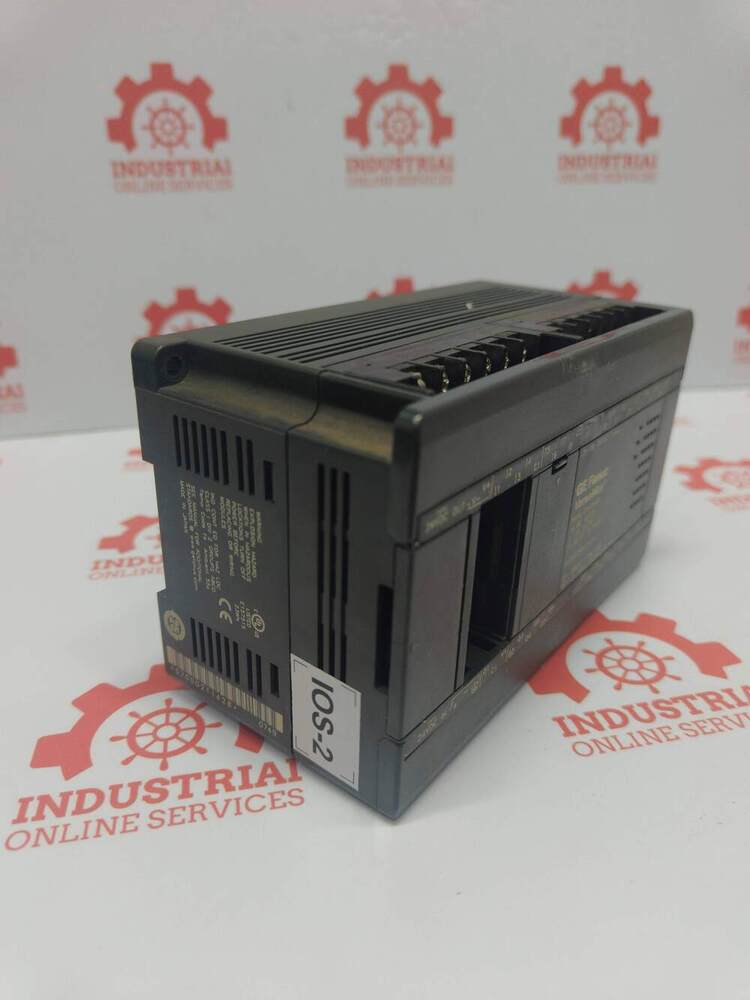

GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC)

Name: GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC)
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC) Specification

Chip Type
Microprocessor-based

Model No
IC200UDR010-CH

I/O Cards Type
Digital I/O

Condition
Used / Refurbished

Compatible Port/Slot
Integrated I/O Terminals

Use
Industrial Automation, Control Applications

OS Supported
Proprietary (VersaMax Software Environment)

Series
VersaMax Micro

Operating Temperature
0C to 55C

Weight
Approx. 400g

Input Type
24V DC (Sink/Source)

Mounting Type
DIN Rail or Panel Mount

Communication Ports
RS-232 / RS-485 (via optional modules)

Power Supply Voltage
24V DC

Storage Temperature
-40C to 85C

Dimensions (W x H x D)
110 x 90 x 60 mm (approx.)

Programming Software
Proficy Machine Edition

Output Type
Relay Outputs

Expansion Capability
Yes, via expansion modules

No. of Points
28 (16 Digital Inputs, 12 Digital Outputs)

GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC)

GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC) widely utilized in industrial automation, process control, and CNC machinery setups

Key Specifications

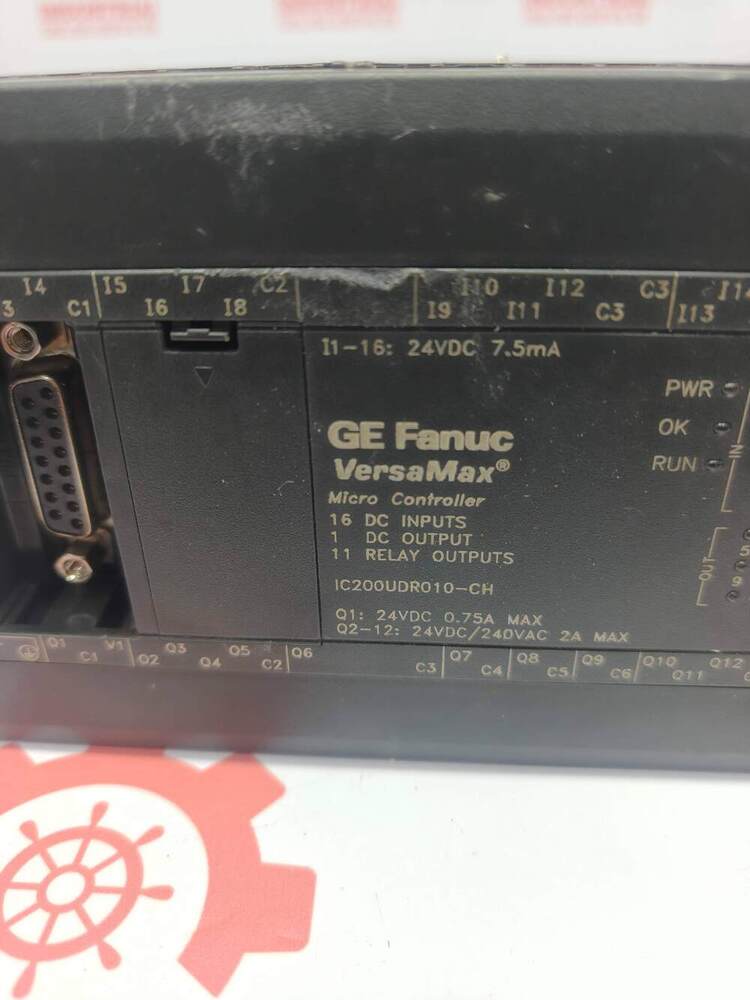

Inputs: 16 channels of 24VDC (positive/negative logic)

Outputs: 11 normally-open 2-amp relay circuits and 1 DC output (Q1)

Power Supply: 24VDC input power, providing up to 200mA maximum for user devices/input circuits

Mounting: Space-saving DIN-rail design

Communication: RS-232 and RS-485 ports

Technical Specifications

The standard operational parameters for this microcontroller include the following technical breakdown:

Attribute	Specification Details
Product Line	GE Fanuc / Emerson VersaMax Micro
Total I/O Points	28 Points
Digital Inputs	16 discrete inputs (24V DC positive/negative logic)
Digital Outputs	11 normally-open 2A Relay outputs + 1 DC output (Q1)
Power Supply	24V DC input voltage
Logic Memory	9,000 words
Data Memory	2,000 words
Communication Ports	Integrated RS-232 and RS-485 serial ports
Processing Speed	Scan time of approximately 1.1 milliseconds per 1,000 words
Expansion Capability	Supports up to 4 I/O expansion modules
Weight	500 grams (1.1 lbs)

Compact and Expandable Design

The IC200UDR010-CH PLC offers a compact footprint, making it an excellent fit for automation projects with space constraints. Its expansion capability allows users to connect additional input/output modules as needed, helping to accommodate evolving application requirements without complex modifications.

Flexible Mounting and Communication

Adaptability is a highlight of this VersaMax Micro controller-choose between DIN rail or panel mounting for installation flexibility. For communication integration, optional RS-232 or RS-485 modules enable easy connection to control networks or supervisory systems, promoting seamless data exchange for process optimization.

FAQ's of GE FANUC IC200UDR010-CH 28-Point VersaMax Micro Controller (PLC):

Q: How can I expand the input/output capacity of the IC200UDR010-CH micro PLC?

A: Expansion is achievable by connecting compatible VersaMax micro expansion modules to the main unit. This modular design allows you to increase I/O points to suit growing control requirements.

Q: What is the programming environment for the GE FANUC IC200UDR010-CH PLC?

A: The PLC is programmed using Proficy Machine Edition software, provided by GE FANUC. This environment supports configuration, logic development, and diagnostics for optimal control solutions.

Q: When should I use relay outputs versus digital outputs on this controller?

A: Relay outputs are ideal when switching higher voltage or current loads, as they provide electrical isolation and are suitable for controlling various industrial devices such as motors, pumps, or solenoids.

Q: Where is the IC200UDR010-CH suitable for installation?

A: This PLC can be installed in indoor industrial environments requiring reliable automation. It supports both DIN rail and panel mounting, offering installation flexibility in control cabinets.

Q: What are the primary benefits of using this VersaMax Micro PLC in industrial automation?

A: It offers robust performance in a compact size, expansion flexibility, reliable relay outputs, easy integration with communication modules, and support from GE's proprietary software, supporting precise and scalable control.

Q: How do I connect communication interfaces to this PLC?

A: The unit does not have built-in RS-232 or RS-485 ports, but you can add communication capability through optional modules designed for the VersaMax Micro series.
