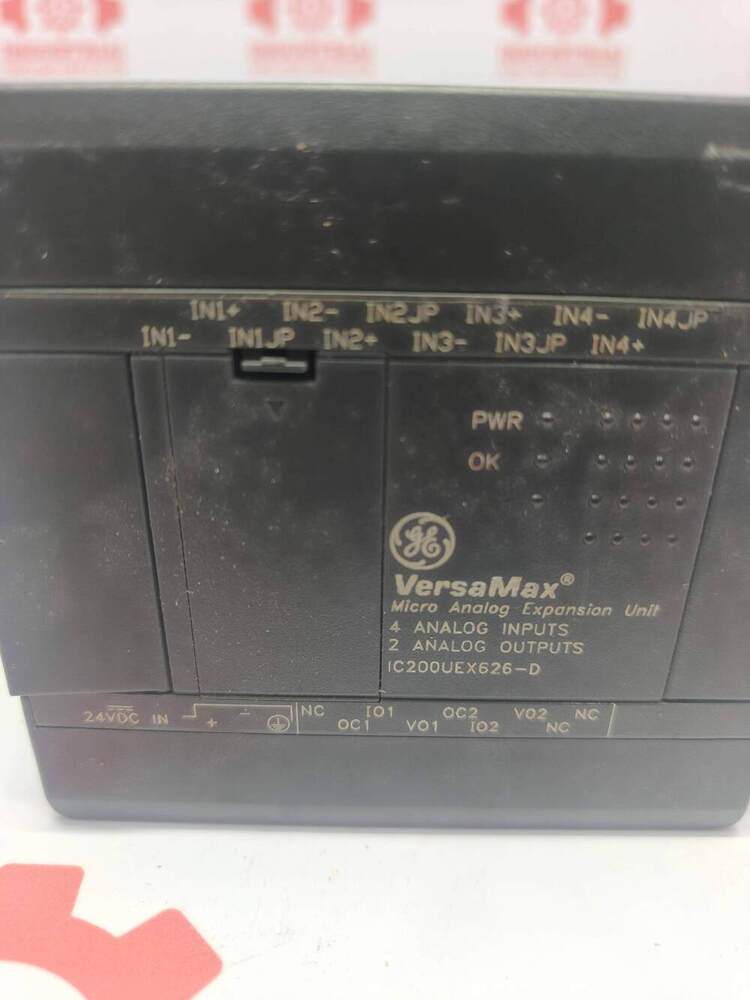

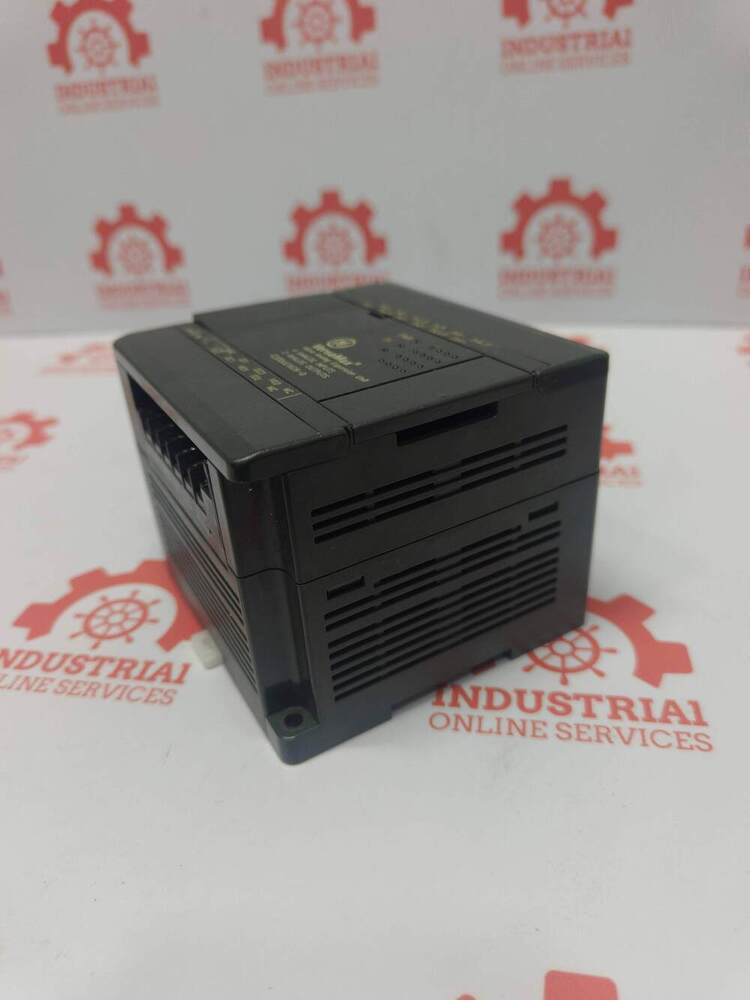

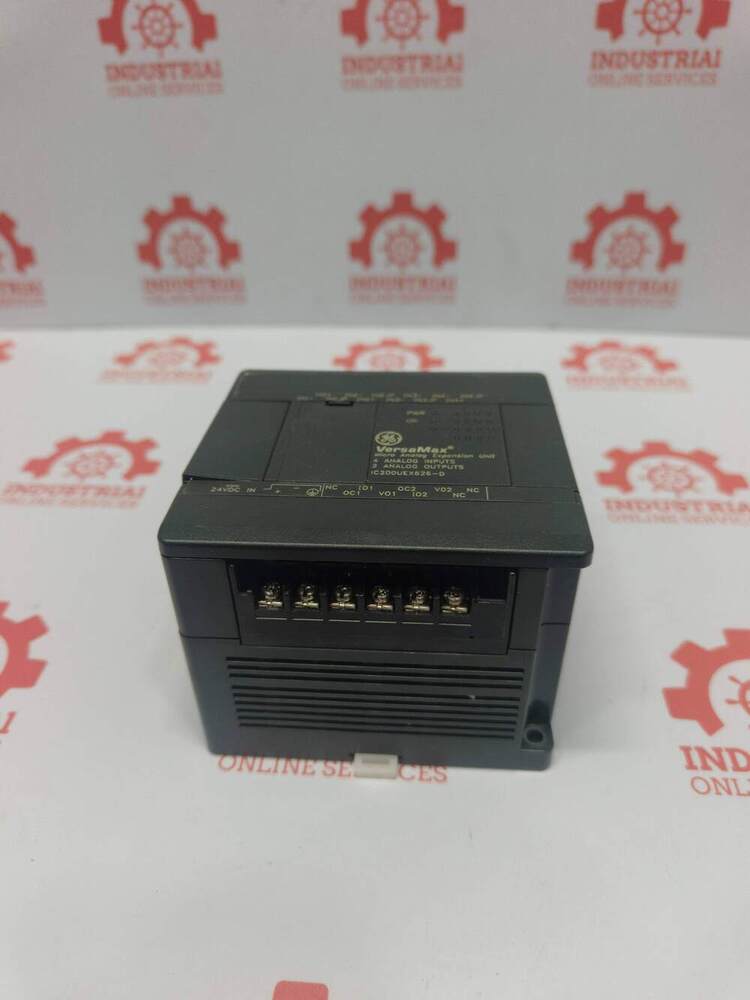

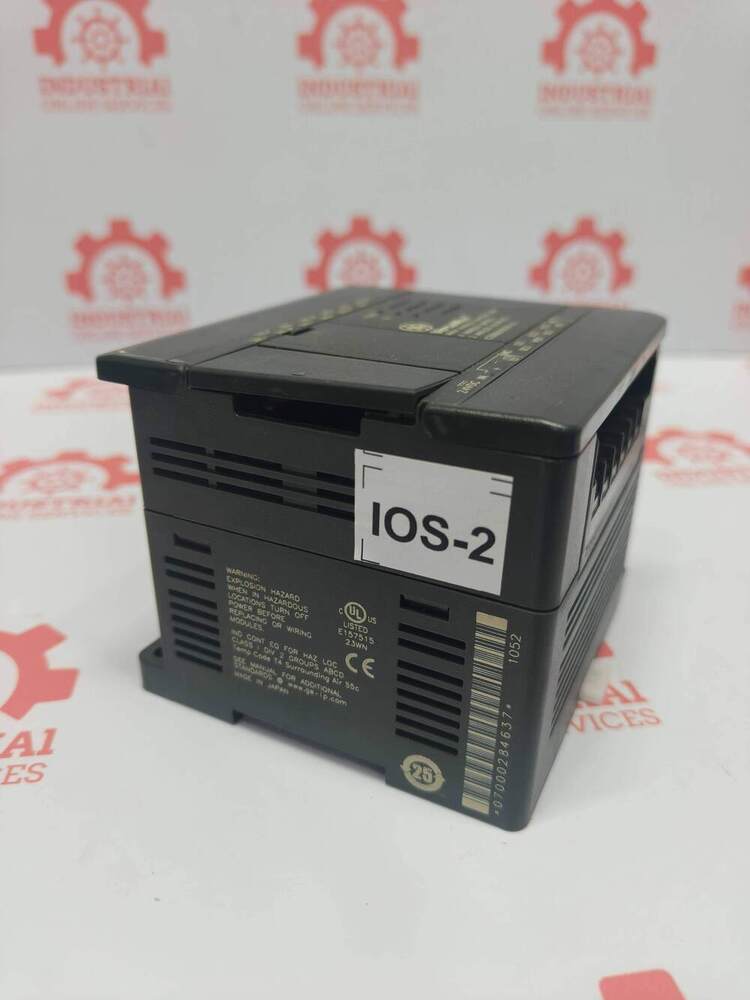

GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series

Name: GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series Specification

Model No
IC200UEX626-D

Chip Type
Analog Input/Output Interface

I/O Cards Type
Analog Expansion Module

Condition
Used/Refurbished

Compatible Port/Slot
Expansion Slot of VersaMax Micro PLC

Use
Industrial Automation / Process Control with VersaMax Micro PLCs

OS Supported
Proprietary PLC Firmware

Communication Protocol
Expansion Bus to VersaMax Micro CPU

Special Features
Compact Size, Easy Integration, Reliable Analog Signal Processing

Operating Temperature Range
0C to 60C

Input Range
Typically 0-10V DC / 4-20mA (Check Module Data Sheet)

Dimensions (WxHxD)
Approx. 90x90x50 mm (Estimate)

Input Channels
6 Analog Channels

Series
VersaMax Micro PLC Series

Mounting Type
DIN Rail or Panel Mount

Input Type
Voltage/Current (Depending on Module Configuration)

Power Supply Voltage
Supplied via Base PLC

Application
PLC Expansion for Industrial Signal Monitoring/Control

GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series

GE Fanuc IC200UEX626D 6Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series

Key Specifications

Channels 6 Total IO points 4 Analog Inputs 2 Analog Outputs

Inputs 4 Differential channels supporting standard current or voltage signals eg 420 mA 010V

Outputs 2 Singleended channels

Power Supply Requirement 24V DC rated input voltage

Power Consumption 3 Watts max input power

Module Revision The suffix D denotes the specific hardware firmwarebuild revision of the module

Key Features

Compatibility Integrates with any standard 14 20 23 28 40 or 64point VersaMax Micro PLC master controller

Interconnection Typically ships or installs with a short ribbon expansion bus connector cable to stack adjacent to the host PLC

Installation Design Includes removable terminal block assemblies hidden behind a hinged cover protection plate for easy field wiring changes

Status Monitoring Features integrated local diagnostic LEDs indicating unit Power and overall OK operational modes

Versatile Analog Signal Capture

The IC200UEX626-D offers six analog input channels for capturing a variety of industrial process signals. Supporting both voltage and current inputs, the module is ideal for monitoring sensors and process instrumentation in manufacturing, utilities, and automation environments. Its configurable input range makes it suitable for diverse signal types and ensures precise analog data acquisition.

Easy Expansion and Integration

Integrating the IC200UEX626-D into existing VersaMax Micro PLC systems is straightforward. The expansion module communicates via the proprietary expansion bus, allowing seamless signal transfer to the main CPU. Its compact size and flexible mounting options help save panel space and reduce installation complexity, making it a practical addition to growing industrial control setups.

Robust and Reliable Operation

Designed to operate between 0C to 60C, this module is built to withstand harsh industrial conditions. Its dependable analog processing ensures accurate data for automation and control, contributing to system reliability. Additionally, sourcing power directly from the base PLC eliminates extra wiring, further simplifying installation and maintenance tasks.

FAQ's of GE Fanuc IC200UEX626-D 6-Channel Analog Expansion Module Belonging To The VersaMax Micro PLC Series:

Q: How do I install the GE Fanuc IC200UEX626-D analog expansion module with my VersaMax Micro PLC?

A: To install the IC200UEX626-D module, connect it to the compatible expansion slot of your VersaMax Micro PLC. Secure the module using either DIN rail or panel mounting, depending on your setup. No separate power connection is required, as it draws power from the base PLC unit.

Q: What types of analog signals does this module accept?

A: This expansion module supports both voltage (0-10V DC) and current (4-20mA) input types. The specific configuration depends on module settings, with each channel capable of being set to handle the desired input type. Consult the module's data sheet for detailed wiring and setup instructions.

Q: Where is the IC200UEX626-D typically used in industrial applications?

A: The module is commonly used in industrial automation and process control applications. It provides analog input expansion for VersaMax Micro PLCs, enabling monitoring and control of processes that involve sensors, transmitters, or other analog devices.

Q: What benefits does the IC200UEX626-D provide over standard I/O modules?

A: This analog expansion module delivers accurate, reliable analog signal processing in a compact form factor. Its easy integration, robust performance, and compatibility with the VersaMax Micro PLC series make it highly beneficial for applications requiring scalable analog input expansion.

Q: When should I consider using this expansion module in my control system?

A: Use the IC200UEX626-D when your VersaMax Micro PLC system requires additional analog input channels beyond the base capacity. It is particularly useful when monitoring multiple analog signals for process automation, whether upgrading existing systems or designing new installations.

Q: What is the process for configuring the module's input range?

A: Configuration of each input channel-voltage or current-is typically accomplished during module setup by adjusting jumpers or using configuration settings as detailed in the module's data sheet. Ensure the correct range is selected for your application to guarantee proper signal acquisition.

Q: How does this module support system reliability and ease of maintenance?

A: With its DIN rail/panel mounting options, compact size, and power supply via the base PLC, the IC200UEX626-D minimizes installation complexity. Its robust construction ensures dependable operation in demanding environments, reducing downtime and maintenance requirements.
