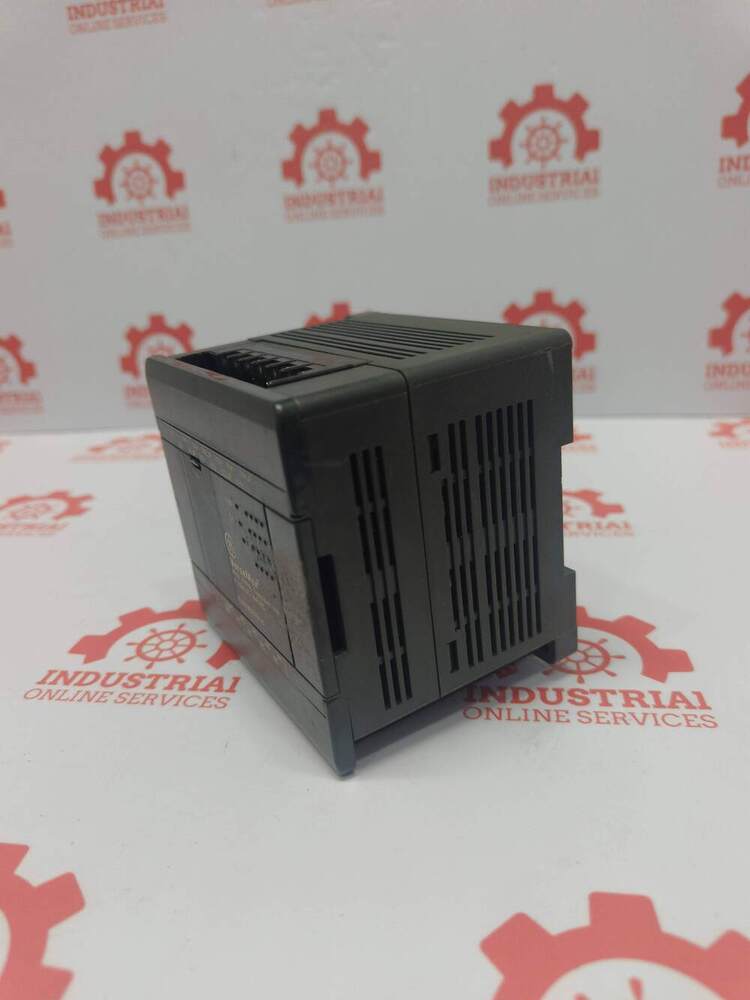

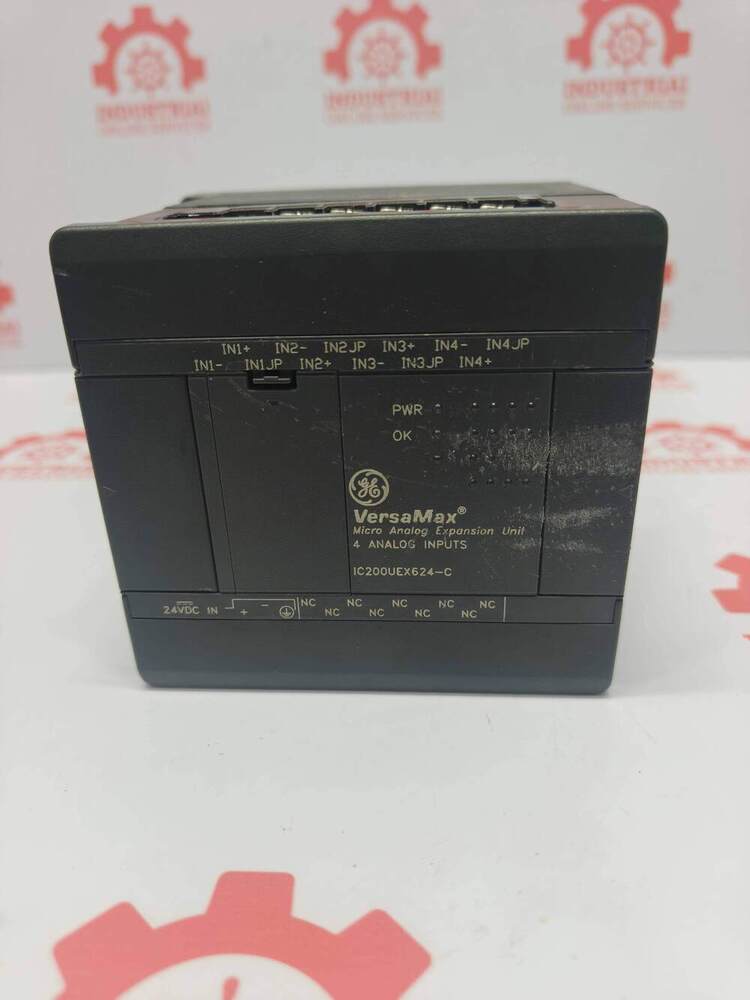

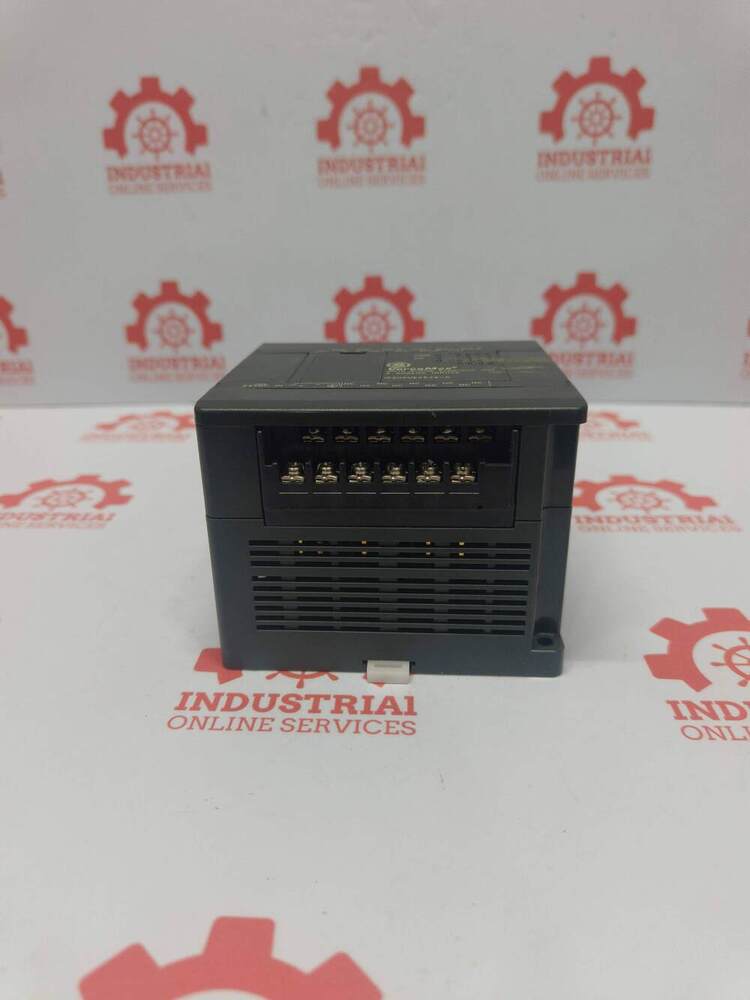

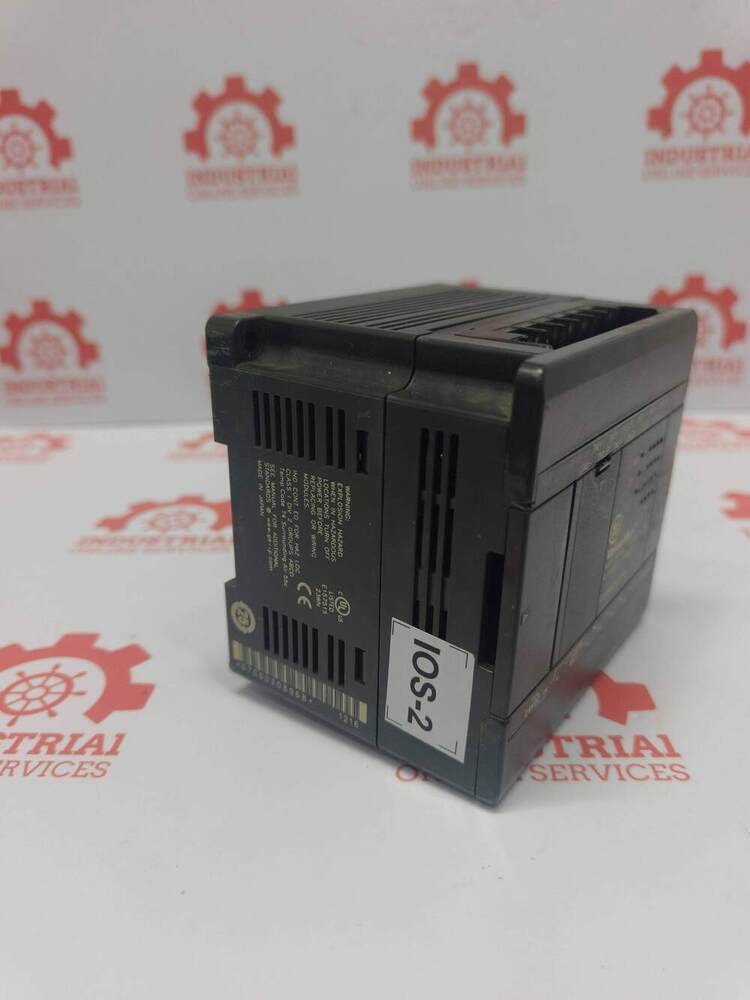

GE FANUC IC200UEX624-C 4-Channel Analog Input Expansion Module

GE FANUC IC200UEX624-C 4-Channel Analog Input Expansion Module About

Technical Specifications

• Input Channels: 4 analog inputs
• Signal Ranges: Dual support for 0“10 VDC (voltage) or 4“20 mA (current)
• Power Supply: 24 VDC external power (Operational range: 19.2 to 30 VDC)
• Resolution: 12-bit Analog-to-Digital Converter (ADC)
• Accuracy: ±0.1% full scale across the operational temperature range
• Input Impedance: 200 kÎ for voltage inputs / 249 Î for current inputs
• Power Consumption: Approximately 3 W (0.1 A at 30 V)
• Mounting & Form Factor: Compact, DIN rail mountable enclosure with an IP20 protection rating
• Isolation: Opto-isolated signaling from the main logic bus, though channels share a common ground

Key Hardware Features

• LED Status Indicators: Displays diagnostic and power health status directly on the faceplate.
• Conformal Coating: Standard protection against harsh environments, airborne contaminants, and humidity.
• Revision "C" Lifecycle: Represents a matured, stable hardware revision that resolves minor errata from earlier "A" or "B" iterations.
