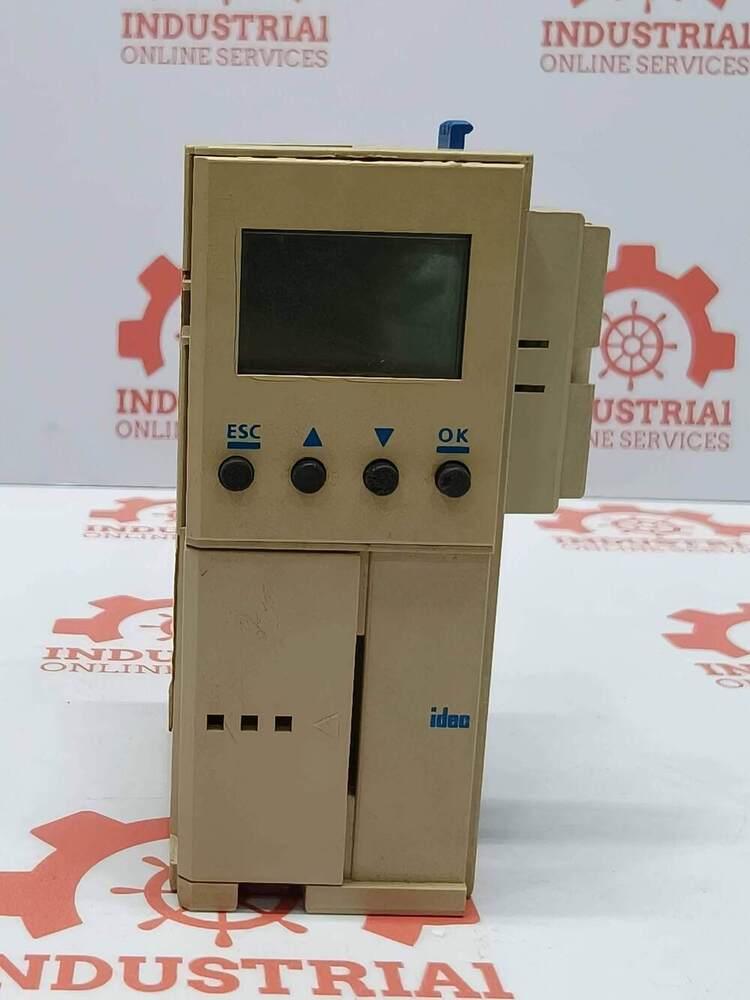

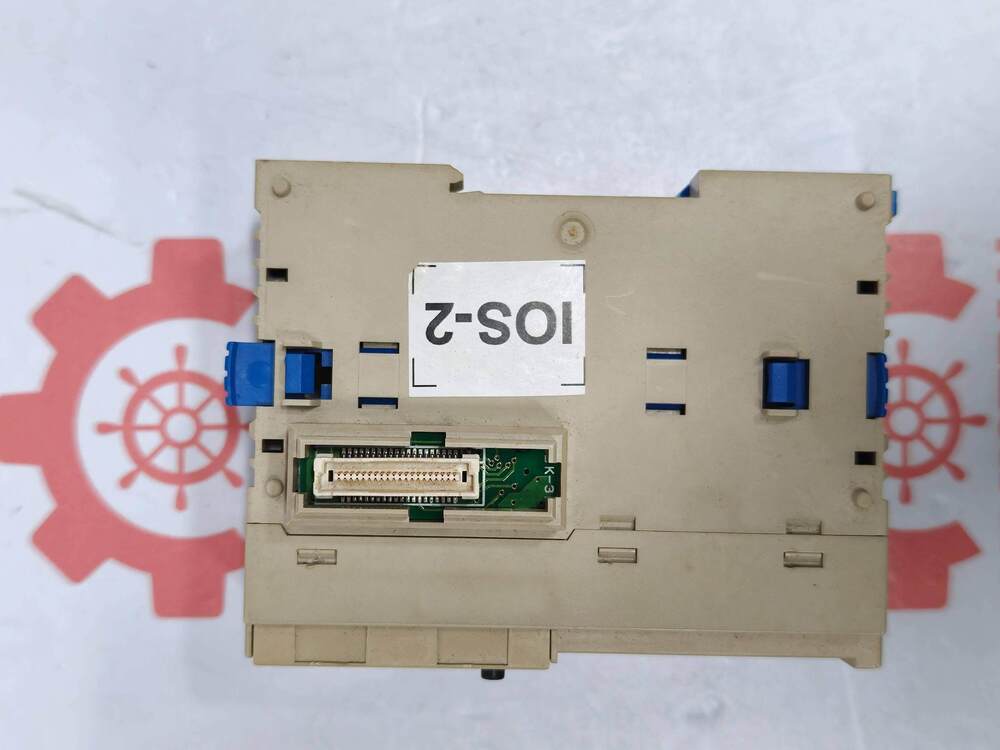

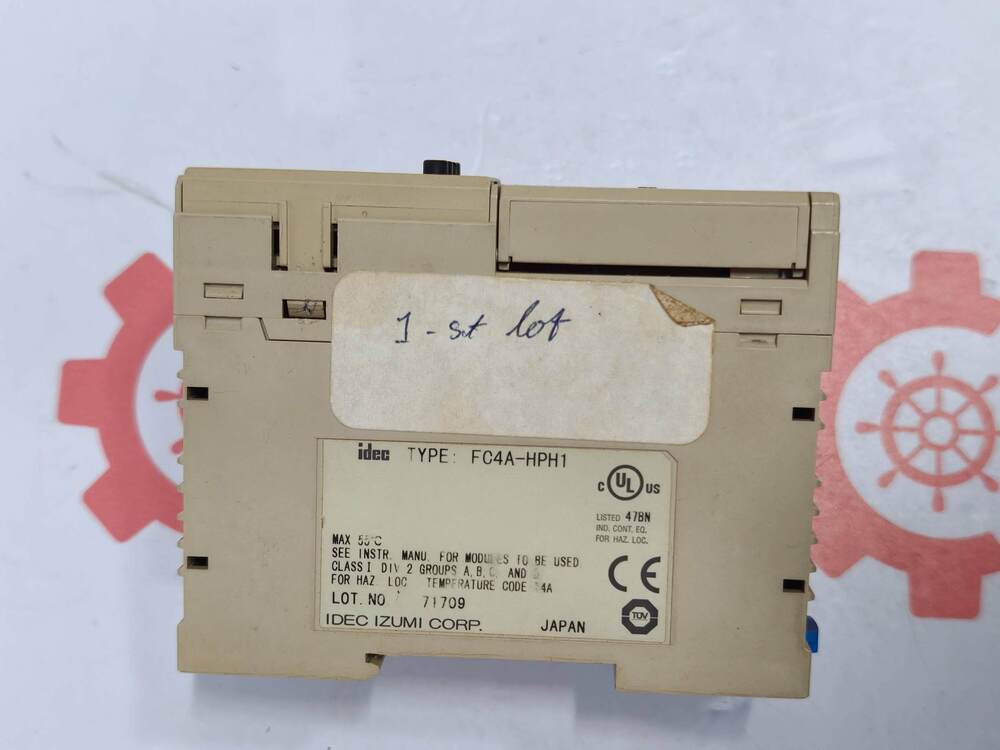

IDEC FC4A-HPH1 HMI Base Module

Name: IDEC FC4A-HPH1 HMI Base Module
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC4A-HPH1 HMI Base Module Specification

Protection Level
IP20

Operating Temperature
0C to +55C

Phase
Single Phase

Efficiency
Standard for Industrial Control

Frequency
N/A (DC Only)

Rated Voltage
24 V DC

Humidity
10 to 90% RH (Non-condensing)

Input Current
110 mA

Mounting Type
DIN Rail Mountable

Main Material
ABS / Polycarbonate Plastic Housing

Processing Type
Electronic Control

Condition
Used / Good Condition

Function
Control and Monitoring Interface for IDEC SmartRelay/PLC

Application
HMI base module for programmable controller systems

Dimension (L*W*H)
110 mm 75 mm 60 mm (approx.)

Power Mode
DC Powered

Voltage
24 V DC

Power Consumption
Approx. 3 W

Accessories
No Accessories included

Communication Port
Programming interface port

Programmable
Yes

Storage Temperature
-20C to +70C

Compatible Devices
IDEC SmartRelay FC4A Series Controllers

Display Type
Monochrome LCD, 4 lines

Model Number
FC4A-HPH1

Color
Beige

Weight
Approx. 170 g

Interface
Front panel keys, LCD interface

IDEC FC4A-HPH1 HMI Base Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC4A-HPH1 HMI Base Module

The IDEC FC4A-HPH1 is an HMI Base Module designed for the MicroSmart series Programmable Logic Controllers (PLCs). It functions as a mounting adapter to connect the FC4A-PH1 HMI Display Module and additional communication ports directly to a Slim model CPU module.

Key Features and Specifications

Device Purpose: Serves as a mechanical and electrical interface base.
Compatibility: Works exclusively with IDEC MicroSmart FC4A and FC5A PLC families.
Modular Setup: The base module does not include the actual HMI display panel.
Port Expansion: Supports attaching optional communication cartridges like RS232C or RS485 Mini-DIN terminals.
Lifecycle Status: This product family is officially discontinued by the manufacturer.

Required and Complementary System Components

To build a fully functional operator interface using this unit, you will typically need:

HMI Display: IDEC FC4A-PH1 (The actual text/operand display unit that snaps into this base).
PLC CPU: A compatible Slim-style MicroSmart CPU module.
Communication Adapters: Optional plug-in modules like the FC4A-PC1 (RS232C) or FC4A-PC2/PC3 (RS485)

User-Friendly Display and Controls

The FC4A-HPH1 is equipped with a four-line monochrome LCD and intuitive front panel keys, simplifying the setup, configuration, and monitoring of your programmable controller system. Its clear interface ensures that crucial data and system statuses are accessible at a glance, enhancing operational efficiency and reducing training time for new users.

Designed for Industrial Durability

Built with an impact-resistant ABS/polycarbonate housing and a compact footprint, this HMI base module fits seamlessly in control panels while maintaining resilience within industrial environments. It withstands storage temperatures from -20C to +70C, operating efficiently between 0C and +55C, making it reliable for demanding applications.

Versatile and Programmable Integration

Ideal for integration with IDEC SmartRelay FC4A Series controllers, the FC4A-HPH1 provides essential communication and programming functionality. With its DIN rail mounting, single-phase operation, and IP20 protection level, it streamlines controller system deployment while supporting programmable applications tailored to your process control requirements.

FAQ's of IDEC FC4A-HPH1 HMI Base Module:

Q: How is the IDEC FC4A-HPH1 HMI Base Module typically used in automation systems?

A: This HMI base module is primarily utilized for controlling and monitoring processes through IDEC SmartRelay FC4A Series controllers. It facilitates user interaction with programmable controllers, allowing operators to visualize status, change parameters, and manage operations directly on the front panel.

Q: What are the benefits of using a monochrome LCD display with front panel keys?

A: The monochrome LCD display with front panel keys provides a straightforward and reliable way for users to access and modify information. It ensures high visibility in various lighting environments and allows for quick navigation through essential menus, contributing to faster troubleshooting and system management.

Q: Where should the FC4A-HPH1 module be installed for optimal performance?

A: The module is designed for installation on a DIN rail within control panels, ensuring stability and efficient cable management. Proper placement in an enclosure with appropriate ambient temperature (0C to +55C) and humidity (10-90% non-condensing) helps maintain optimal operation and longevity.

Q: What process is involved in connecting the FC4A-HPH1 to IDEC SmartRelay controllers?

A: Connecting the FC4A-HPH1 involves mounting it on a DIN rail and linking it to an IDEC SmartRelay FC4A Series controller via its programming interface port. Follow the manufacturer's wiring and configuration instructions to ensure safe and effective connection.

Q: When should the module be accessed for programming or maintenance?

A: Access the FC4A-HPH1 for programming or maintenance during scheduled downtime or when updates to control logic or interface settings are necessary. This minimizes disruption to ongoing operations and ensures safe handling of electronic components.

Q: What should users know about power requirements and protection?

A: The device operates on 24 V DC with a current consumption of approximately 110 mA. It is protected to IP20 standard, suitable for installation inside control cabinets, and should not be exposed to water or high humidity without additional enclosure protection.
