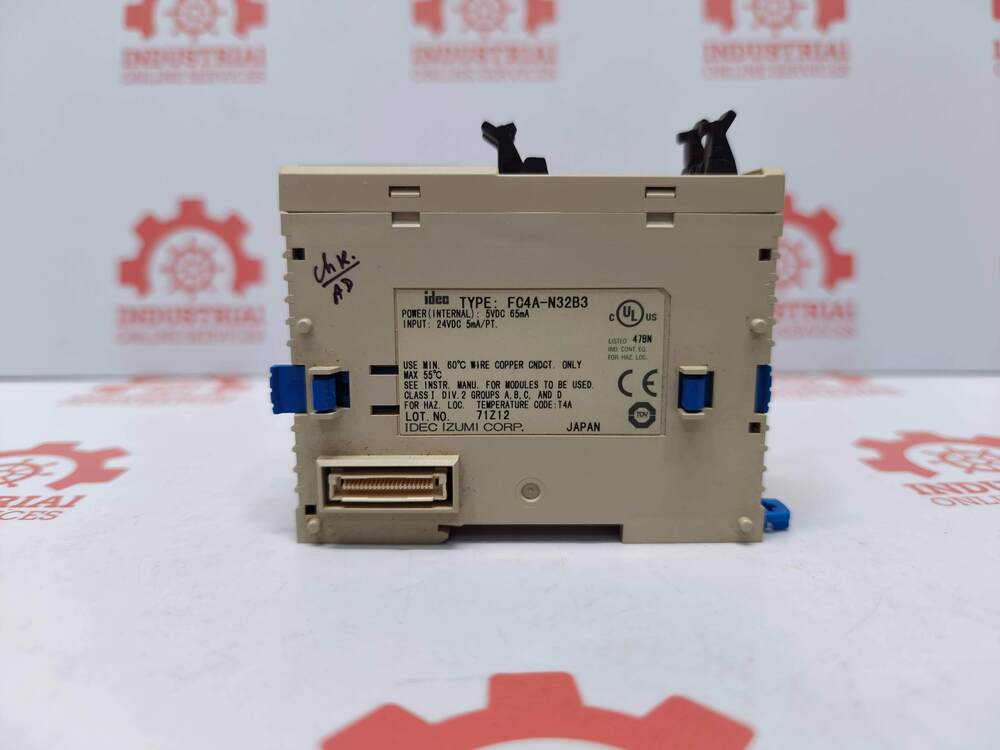

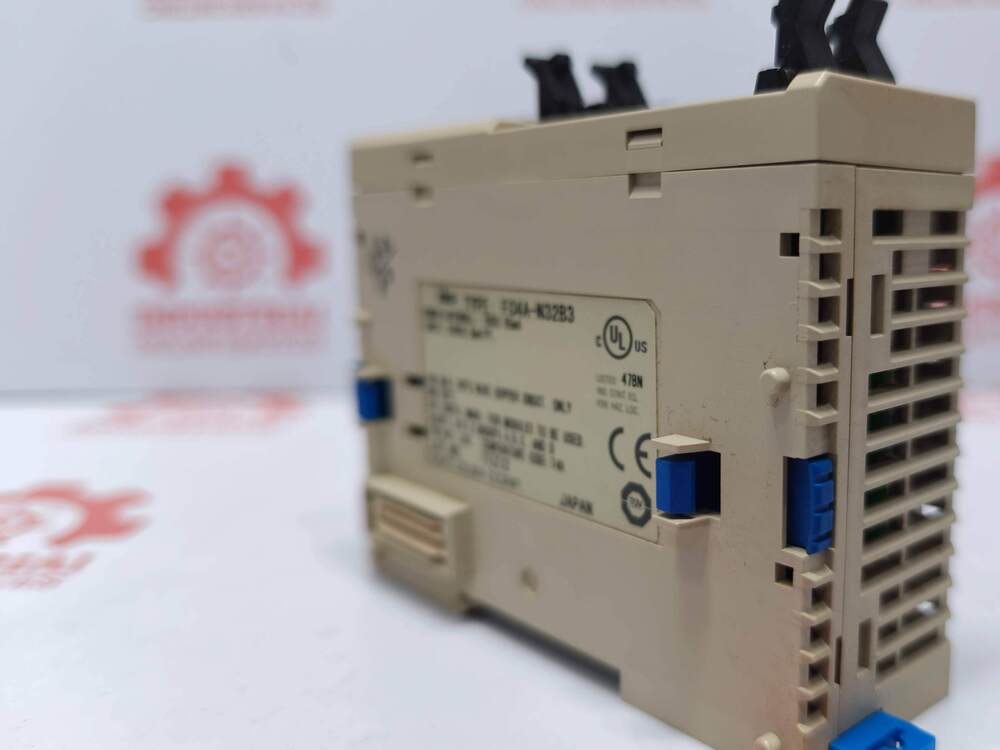

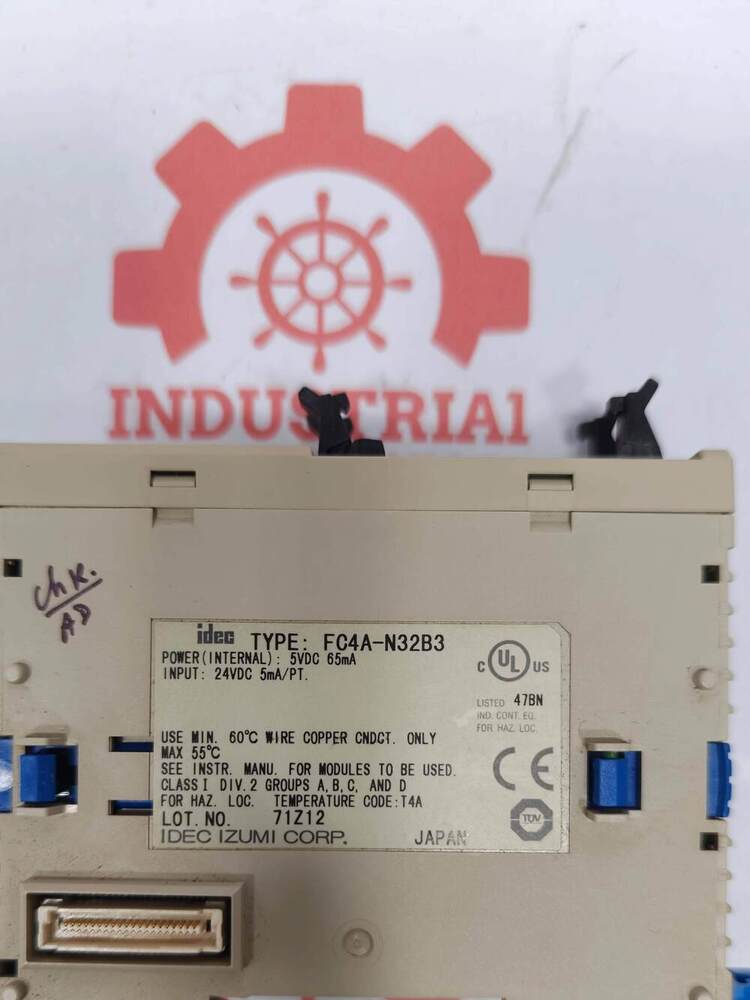

IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module

Name: IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module Specification

Rated Voltage
24V DC

Input Current
4 mA per Input (24V DC)

Frequency
DC signal only

Efficiency
Standard for PLC Expansion Modules

Humidity
10 to 95% RH (Non-condensing)

Operating Temperature
0 to 55C

Mounting Type
DIN Rail Mount

Protection Level
IP20

Main Material
Industrial-grade plastic and metal

Processing Type
Digital Input Expansion

Condition
New or Refurbished

Function
Expands 32-point digital DC input for IDEC PLC systems

Application
Factory Automation, PLC Input Expansion

Dimension (L*W*H)
90 x 23 x 70 mm (Approx.)

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
2.6W max

Accessories
Terminal blocks (standard), User Manual

Number of Inputs
32 Digital

Terminal Type
Screw terminal

Input Response Time
10 ms max.

Input Signal Type
Sink or Source

Compatible Series
IDEC MicroSmart Series (FC4A/FC5A)

Isolation
Photocoupler (between input and internal circuits)

Product Weight
Approx. 130 g

Storage Temperature
-25 to 75C

IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module

The IDEC FC4A-N32B3 is a 32-point digital DC input expansion module designed for use with the IDEC MicroSmart and MicroSmart Pentra PLC systems.

Technical Specifications

Input Points: 32 digital inputs.
Input Voltage: 24V DC.
Input Current: 5 mA per channel.
Configuration: Sink/Source (selectable).
Isolation: Photocoupler isolated internal circuit.
Status Display: Integrated LED indicators for individual channels.
Mounting: 35mm DIN rail mount.

Seamless Integration with IDEC MicroSmart Series

The FC4A-N32B3 expansion module is purpose-built for compatibility with the IDEC MicroSmart Series PLCs (FC4A/FC5A). Its design ensures effortless expansion of digital input points, making it an ideal choice for diverse industrial applications requiring precise digital monitoring and control.

Reliable and Efficient Performance for Automation

With 32 DC digital inputs and robust photocoupler isolation, the FC4A-N32B3 guarantees reliable signal integrity in harsh industrial environments. Operating at a standard 24V DC and consuming only 2.6W max, it stands out for its efficiency and low power requirements in factory automation setups.

Durability and Easy Installation

Constructed from industrial-grade plastic and metal, this module is built to withstand tough conditions. Its compact design allows for easy mounting on DIN rails, while standard accessories like screw terminal blocks and a user manual ensure swift, straightforward installation and operation.

FAQ's of IDEC FC4A-N32B3 32-Point Digital DC Input Expansion Module:

Q: How do I install the IDEC FC4A-N32B3 expansion module?

A: To install the IDEC FC4A-N32B3, secure it on a standard DIN rail in your control panel. Connect your DC input devices using the screw terminals, verify voltage supply (24V DC), and follow guidelines provided in the included user manual for wiring and configuration within compatible IDEC MicroSmart Series PLC systems.

Q: What types of input signals does this module support?

A: This module supports both sink and source DC input signals at 24V. Each input consumes 4 mA and is isolated by a photocoupler, ensuring reliable performance even in challenging environments.

Q: When should I use the FC4A-N32B3 module in my PLC setup?

A: Use the FC4A-N32B3 module when your automation project demands expansion beyond the default input capacity of your IDEC MicroSmart FC4A or FC5A PLCs, enabling up to 32 additional digital DC inputs for enhanced monitoring and control.

Q: Where can the FC4A-N32B3 be used?

A: It is suitable for factory automation, production lines, and other industrial settings requiring digital expansion for PLCs. It's designed for indoor use within temperature (0 to 55C) and humidity (10 to 95% RH non-condensing) parameters.

Q: What is the installation process for the terminal blocks?

A: Terminal blocks come as standard accessories. Simply attach them to the module, use the screw terminals to connect input wires securely, and check all connections against the user manual's wiring diagrams before powering up the system.

Q: How does this module enhance the efficiency of my automation system?

A: By enabling quick expansion of input capacity while maintaining low power consumption and signal integrity, the FC4A-N32B3 helps streamline digital data acquisition and control, leading to more effective and scalable automation solutions.
