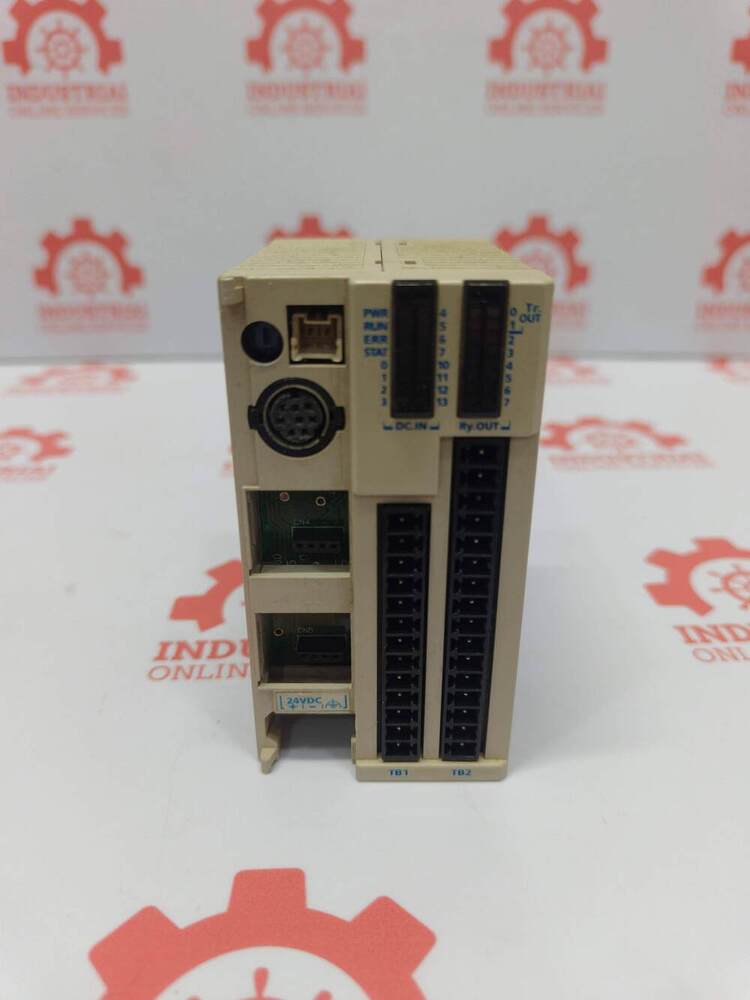

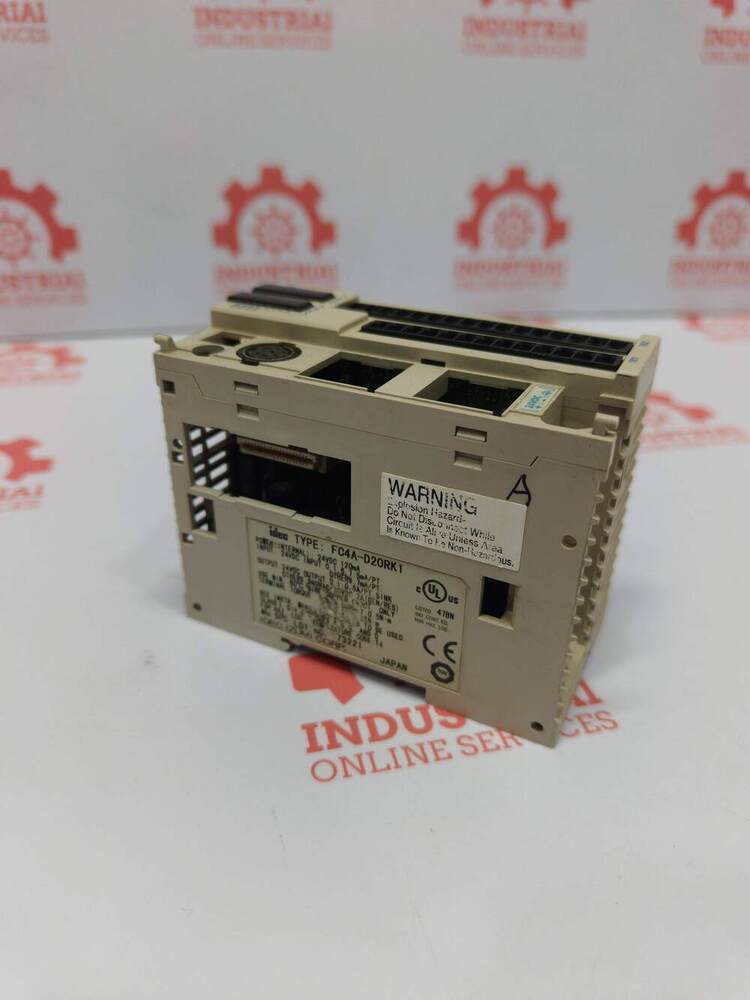

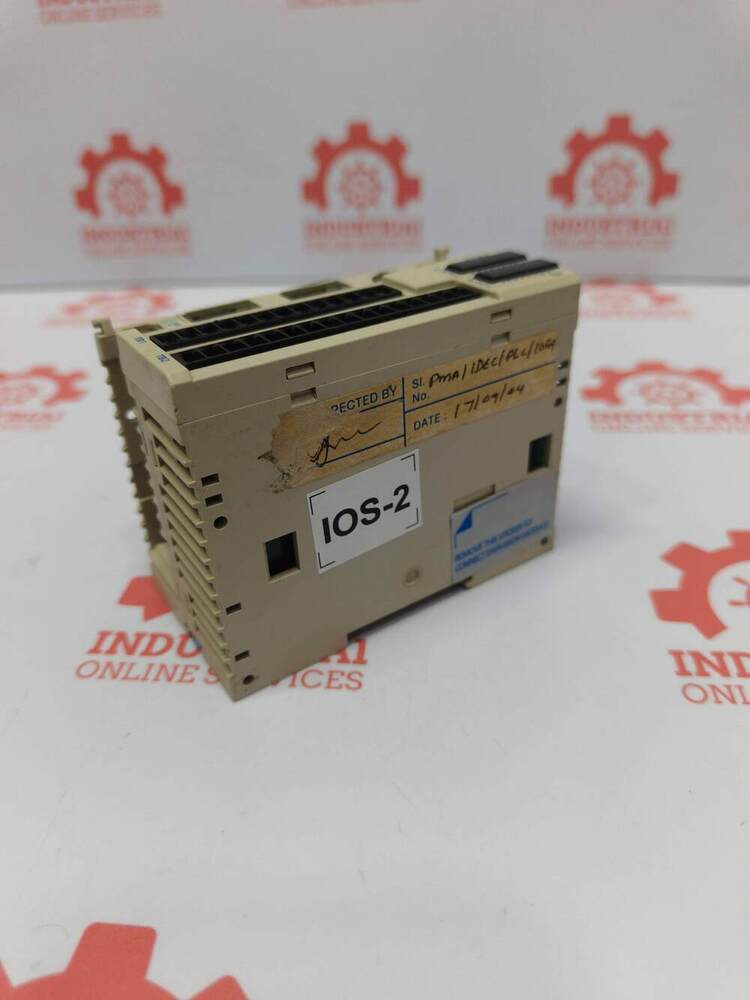

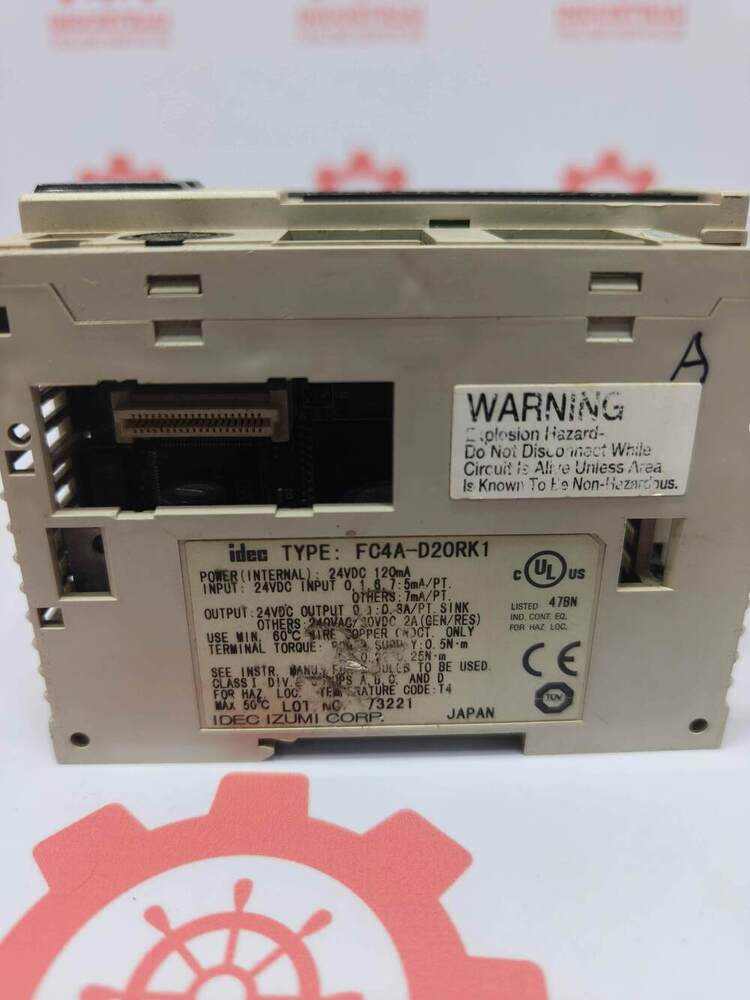

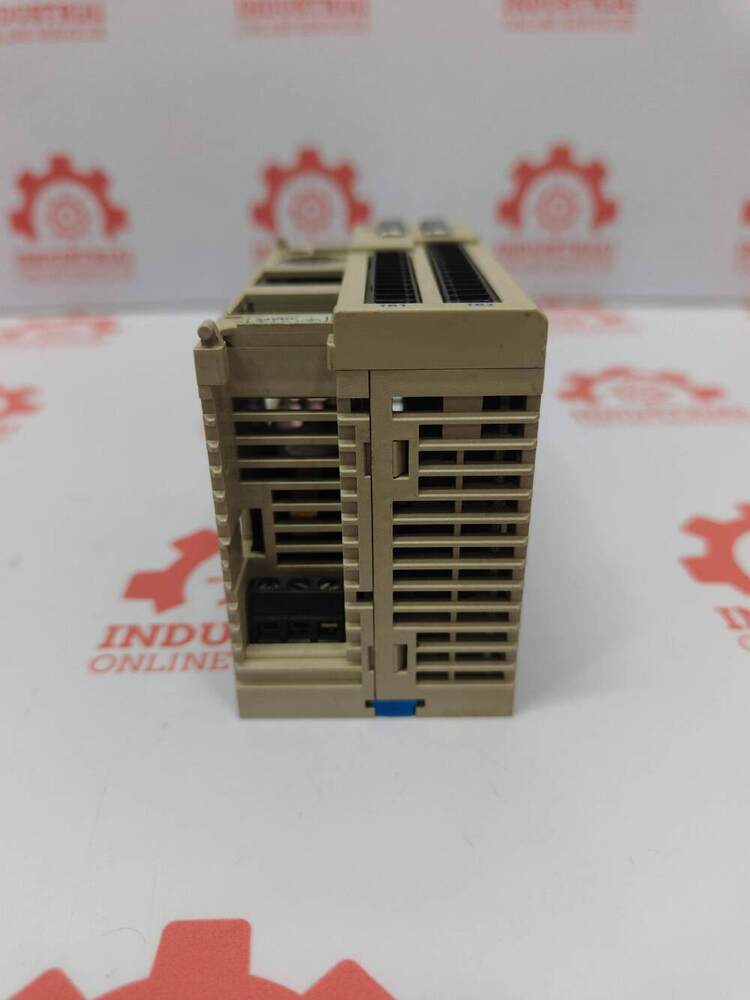

IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC)

Name: IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC)
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC) Specification

Phase
Single phase

Input Current
0.25A max

Protection Level
IP20

Output Voltage
Relay output (24V DC)

Efficiency
High efficiency, industrial standard

Frequency
DC powered, so not applicable

Mounting Type
DIN Rail or Screw Mount

Humidity
5% to 95% RH, non-condensing

Operating Temperature
-10C to 55C

Rated Voltage
24V DC

Main Material
ABS Plastic, Electronics

Processing Type
Digital processing

Condition
New

Function
Programmable automation control

Application
Industrial automation, process control

Dimension (L*W*H)
90mm x 35mm x 110mm

Power Mode
Direct current

Voltage
24V DC

Power Consumption
6W max

Battery Life
Not applicable, mains powered

Accessories
User manual, mounting bracket

Software Compatibility
WindLDR programming software

Display
No built-in display

Number of Outputs
8 relay outputs

Backup Battery
Lithium battery for program retention

Memory Capacity
16k steps

Number of Inputs
12 digital inputs

Response Time
Input: 0.2 ms, Output: 0.2 ms

Storage Temperature
-20C to 70C

Communication Port
RS232/RS485

Weight
Approx. 260g

Expansion Capability
Supports up to 24 I/O modules

Safety Standard
IEC 61131-2

Output Type
Relay

Programming Language
Ladder (LD), Function Block Diagram (FBD)

IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC)

IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC)

Technical Specifications

I/O Configuration: Equipped with 12 digital inputs (24V DC Sink/Source) and 8 relay outputs.
Power Supply: Operates on a rated voltage of 24 V DC with a supply current of 700 mA.
Execution Speed: Fast scan rates balancing 1.65 mS for basic instructions and 0.64 mS for end processing.
Memory & Storage: Built-in EEPROM storage memory alongside an integrated card slot for expansion.
Communication: Utilizes a standard RS232C communication port (circular 8-pin interface).
Mounting & Environmental: Designed for space-saving DIN Rail mounting with an operational temperature threshold ranging from 0 C to 55 C.

Slim and Versatile Automation Controller

Designed for streamlined automation setups, the IDEC FC4A-D20RK1 offers unmatched flexibility in demanding industrial settings. Its slim profile conserves cabinet space while providing high processing efficiency and easy mounting options. Integrate this PLC seamlessly within your control systems to drive reliable digital processing and rapid response for your operations.

Robust Industrial Performance

Built to excel in tough environments, this PLC maintains peak performance across wide operating and storage temperatures. With a protection level of IP20 and compliance to IEC 61131-2 standards, it assures safe, uninterrupted operation. Maintenance is simplified with a lithium backup battery that preserves programs even during power loss.

Advanced Programming and Expansion

Program the FC4A-D20RK1 with ease using the user-friendly WindLDR software in either Ladder or Function Block Diagram modes. The controller's expansion capability enables adaptation as your automation needs evolve, supporting up to 24 I/O modules for extensive and flexible control applications.

FAQ's of IDEC FC4A-D20RK1 Slim-Type Programmable Logic Controller (PLC):

Q: How do I program the IDEC FC4A-D20RK1 PLC?

A: You can program the IDEC FC4A-D20RK1 PLC using WindLDR programming software, which supports both Ladder Diagram (LD) and Function Block Diagram (FBD) languages. The PLC connects to your computer via the RS232 or RS485 communication ports for easy configuration.

Q: What applications is this PLC suited for?

A: The FC4A-D20RK1 is ideal for industrial automation and process control applications, including machinery operation, manufacturing lines, and other environments where reliable programmable digital processing is required.

Q: When should I consider expanding the I/O modules?

A: You should expand the I/O modules when your system requires more inputs or outputs than the built-in 12 digital inputs and 8 relay outputs. The PLC supports up to 24 I/O modules to accommodate complex or growing control needs.

Q: Where can this PLC be installed?

A: This PLC can be installed in industrial control panels using either DIN rail or screw mounting, offering flexibility for integration into various cabinet layouts and spaces.

Q: What process does the backup battery support?

A: The built-in lithium backup battery ensures program retention during power interruptions, so your automation system resumes normal operation without reprogramming once power is restored.

Q: What are the main benefits of using this PLC in industrial settings?

A: Benefits include high efficiency, swift input/output response (0.2 ms), strong reliability, easy expandability, and robust safety compliance. Its slim form factor and user-friendly software also contribute to quick installation and setup in demanding environments.

Q: How is safety assured with the FC4A-D20RK1?

A: Safety is maintained through compliance with IEC 61131-2 standards and a protection rating of IP20, ensuring safe operation in general industrial conditions.
