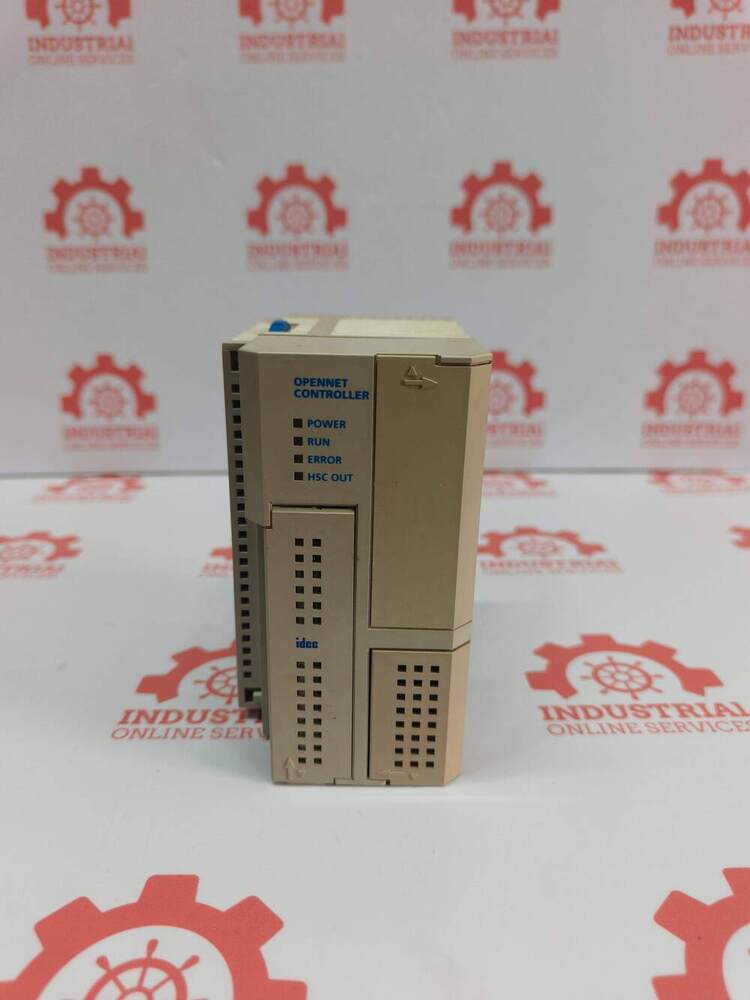

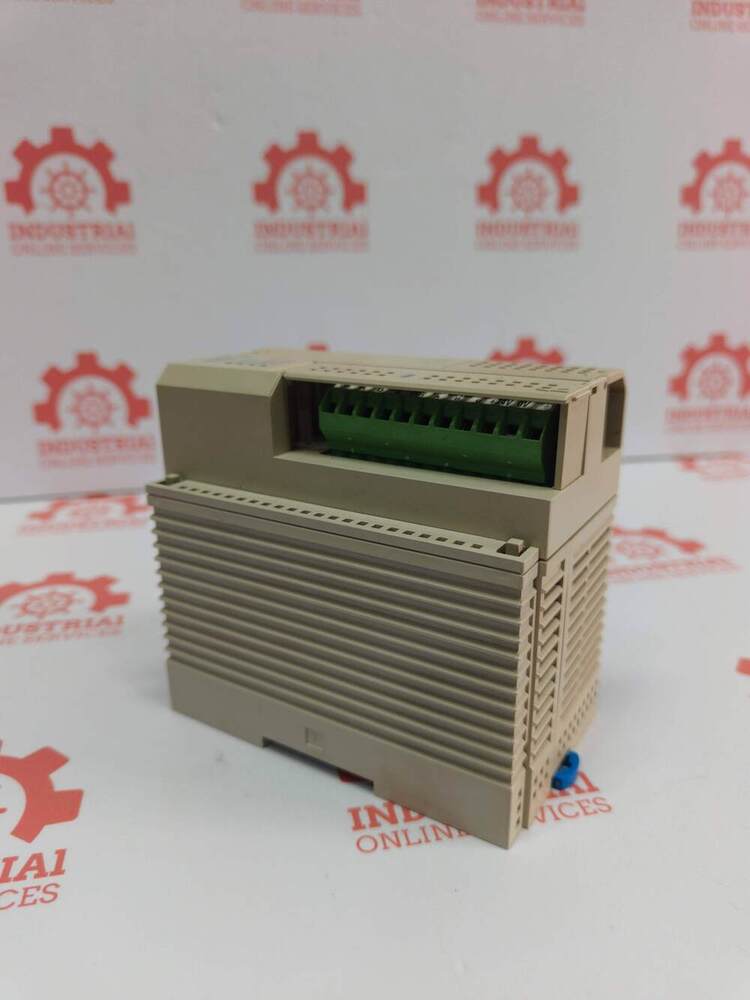

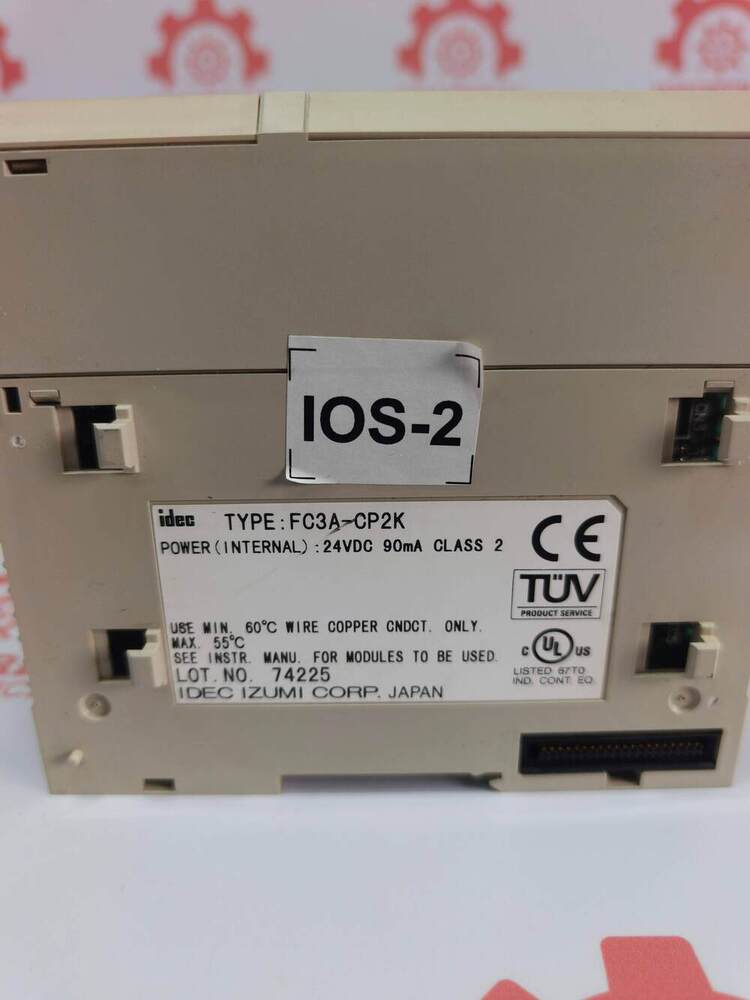

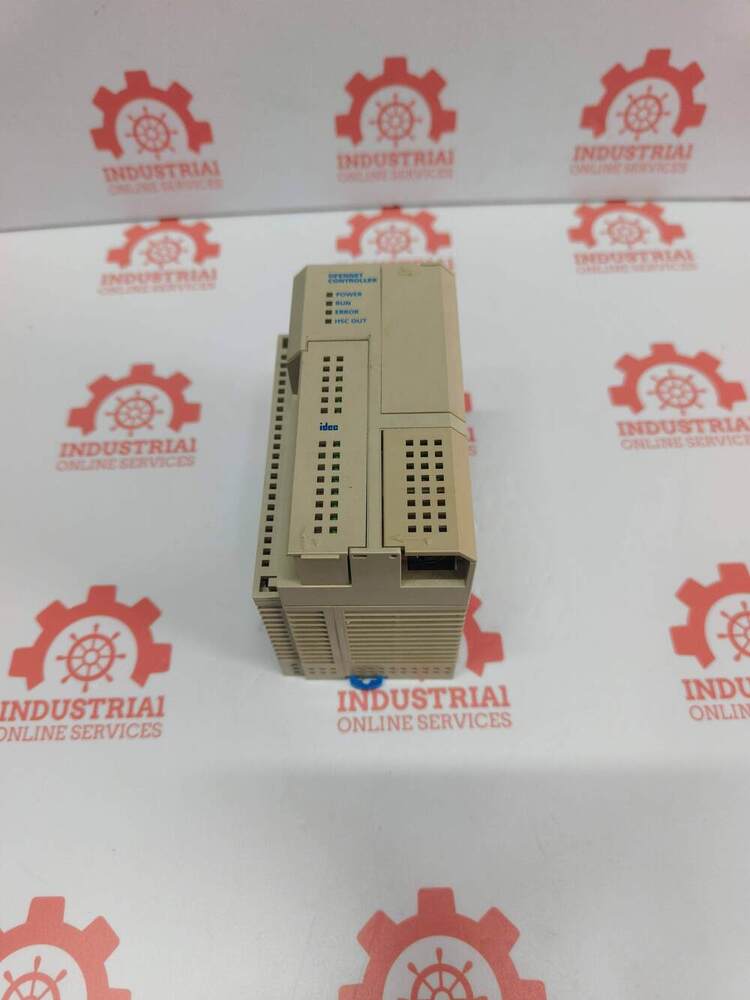

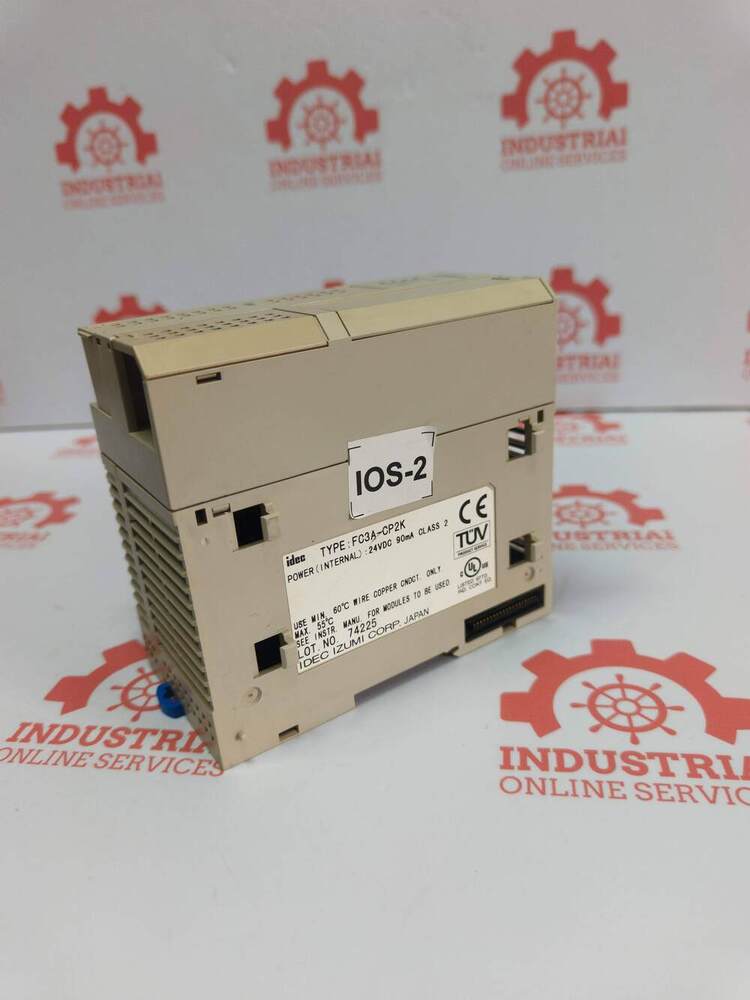

IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs)

Name: IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs)
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs) Specification

Input Current
Max. 0.4A (at 24V DC)

Operating Temperature
0C to +55C

Frequency
Not applicable (DC input)

Rated Voltage
24V DC

Output Voltage
Not applicable (CPU module does not supply output voltage)

Mounting Type
DIN rail mounting

Efficiency
High operational efficiency for industrial control

Protection Level
IP20 (suitable for control cabinet mounting)

Humidity
10-95% RH, non-condensing

Phase
Single phase (DC supply)

Main Material
Industrial grade ABS/Polycarbonate plastic

Processing Type
Electronic control module

Condition
Used / refurbished

Function
Programmable logic controller (PLC) CPU module for OpenNet Controller Series

Application
Industrial automation, machine control, process automation

Dimension (L*W*H)
90mm x 70mm x 60mm (approximate)

Power Mode
DC powered

Voltage
24V DC

Power Consumption
Approx. 10W (typical)

Battery Life
Not applicable (no internal battery required for operation)

Accessories
No additional accessories included

Model Number
FC3A-CP2K

Series
ONC (OpenNet Controller)

Expansion Capability
Supports digital/analog I/O and communication module expansion

Communication Ports
1x RS232C, 1x RS485, 1x Ethernet (depending on model variant)

Weight
Approx. 200g

Memory Capacity
Program memory up to 8KB

Status Indication
LED indicators for Run, Error, and Communication states

Programming Language
Ladder diagram, function block (IDEC WindLDR supported)

Response Time
Less than 1ms typical scan time

Storage Temperature
-20C to +70C

IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs)

IDEC FC3A-CP2K CPU Module OpenNet Controller (ONC) Series of Programmable Logic Controllers (PLCs)

Key Technical Specifications

Module Type: Central Processing Unit (CPU) Module.
Output Configuration: Sink Output Type.
High-Speed Counter: Built-in high-speed tracking capabilities.
Memory Card Slot: None (The version with a memory card connector is designated as FC3A-CP2KM).
Built-in Communication Ports:
- 2 x RS232 Ports: Used as programming ports, ASCII interface, printer communication, or dial-up/pager setup using the Hayes "AT" command set.
- 1 x RS485 Port: Used as a programming port and for networking data links.
Expandability: Supports up to 224 standard inputs and outputs (or up to 480 I/O with an expansion power supply).
Software Compatibility: Programmed via Windows-based environment (historically compatible with legacy systems such as Windows NT 4.0, XP, and Vista).
