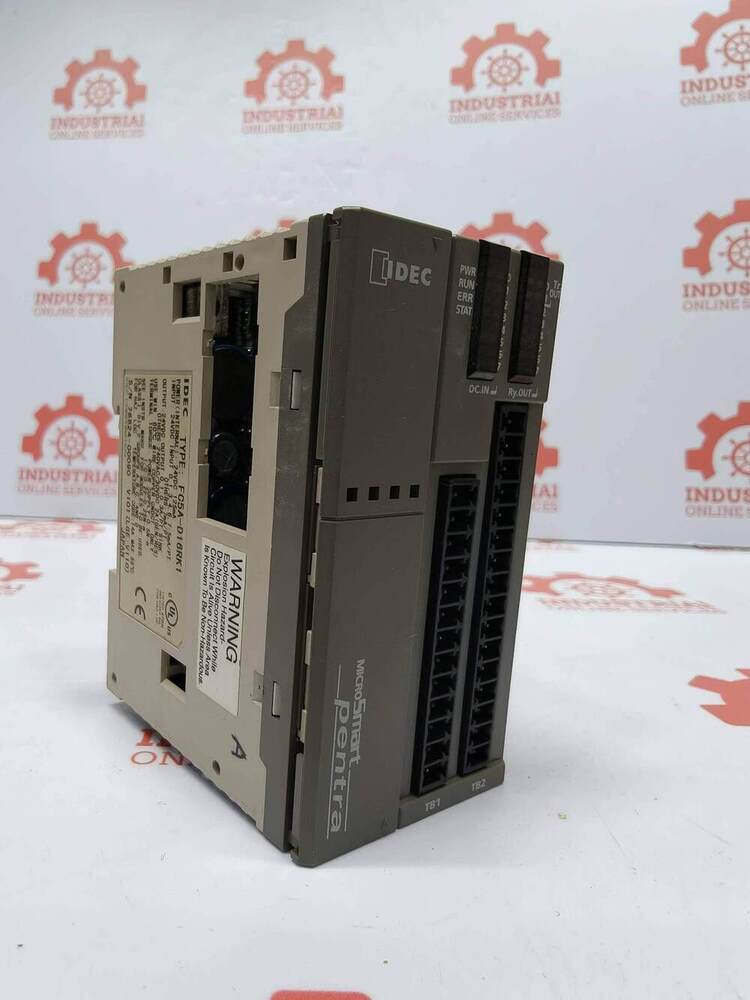

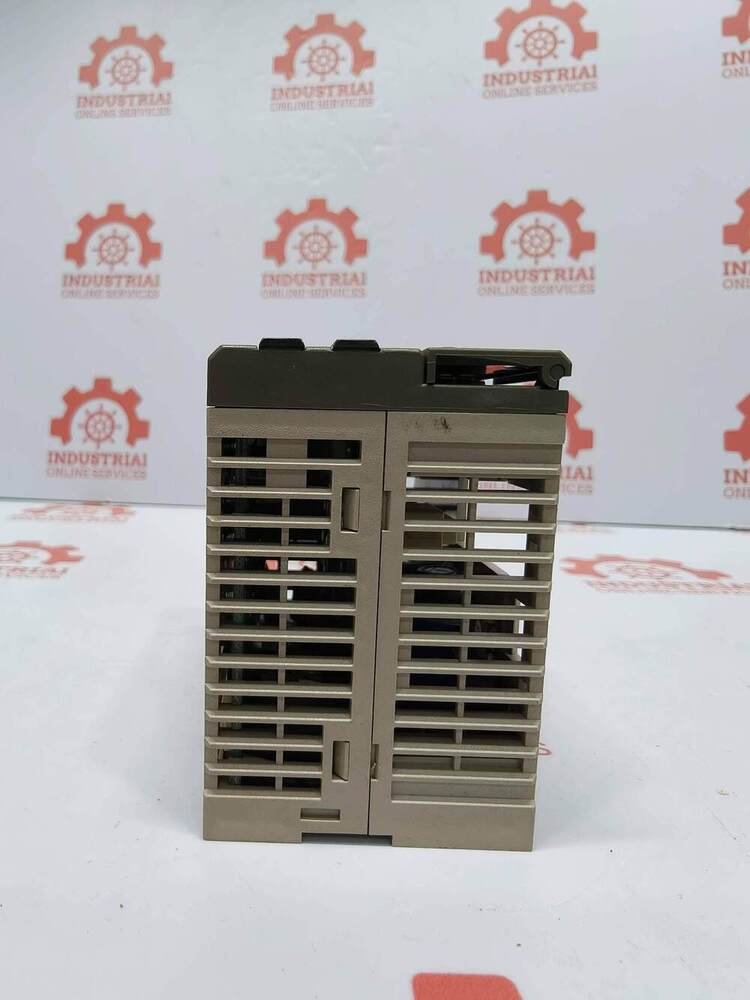

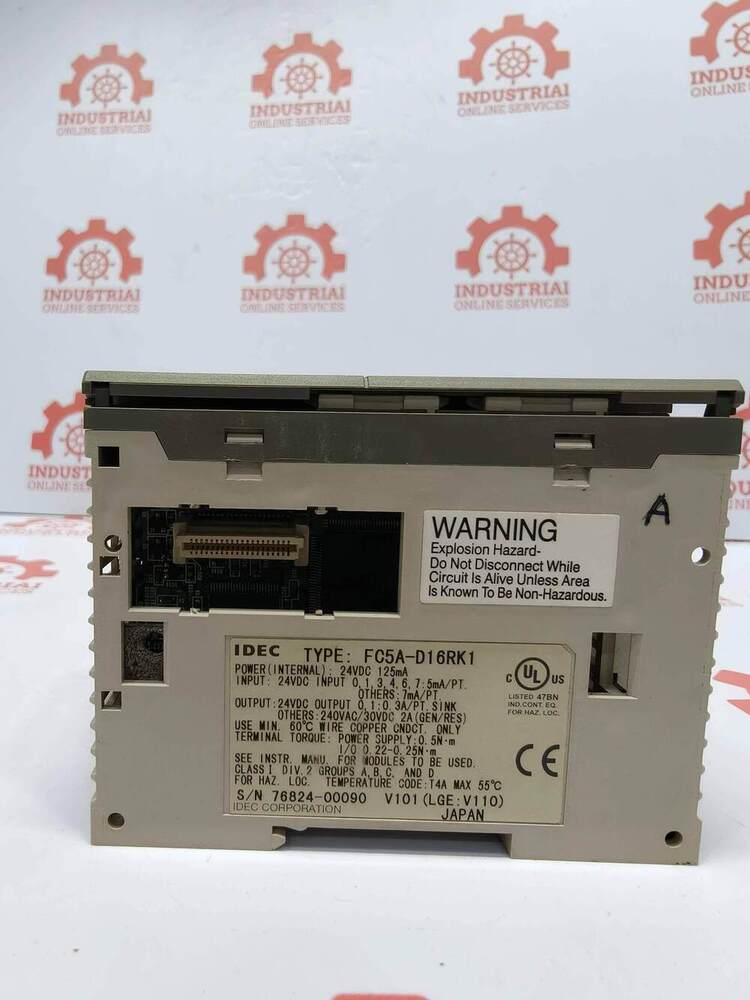

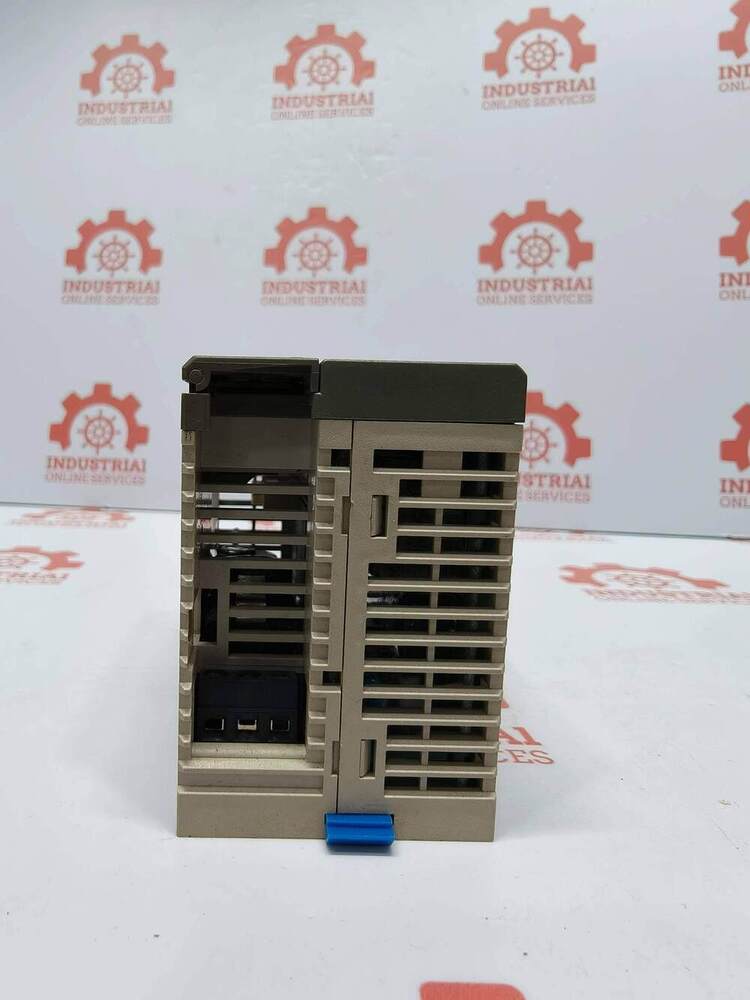

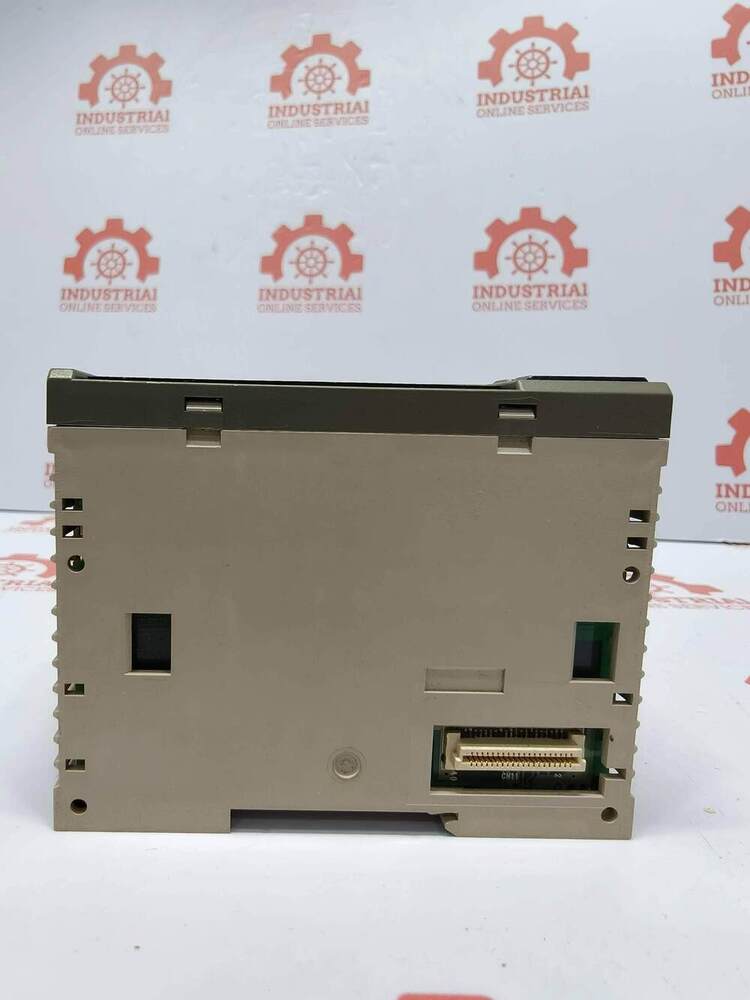

IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module

Send Inquiry

Request To Call Back

IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module

Name: IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module Specification

Operating Temperature
0C to 55C

Efficiency
High System Processing

Rated Voltage
24V DC

Humidity
10~95% RH (Non-condensing)

Frequency
50/60 Hz

Input Current
260 mA

Phase
Single Phase

Mounting Type
DIN Rail Mount

Output Voltage
24V DC Relay Output

Protection Level
IP20

Main Material
Industrial Grade Plastic/ABS

Processing Type
Digital

Condition
New

Function
PLC CPU Module for Control and Automation

Application
Industrial Automation, Machine Control, Process Control

Dimension (L*W*H)
90 mm x 70 mm x 95 mm

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
6.2W max

Accessories
User Manual, Mounting Hardware

Response Time
0.24 ms per step

Expansion Capability
Supports up to 512 I/O Points

Output Type
Relay Outputs (16 Points)

Display
No onboard display

Model Number
FC5A-D16RK1

Input Type
Digital Inputs (16 Points)

Weight
Approx. 350 grams

Memory Backup
EEPROM

Program Memory
47,000 steps

Programming Software
WindLDR

Communication Ports
RS232C/RS485, Optional Ethernet

IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module

The IDEC FC5AD16RK1 is a MicroSmart Pentra PLC CPU Module It is a 24V DC powered highperformance controller designed for industrial automation applications

Technical Specifications

Power Supply 24 VDC

Total Embedded IO 16 points 8 digital inputs 8 outputs

Inputs 24 VDC SinkSource selectable

Outputs 6 Relay outputs and 2 Transistor Sink outputs

Maximum IO Capacity Expandable up to 512 IO points using expansion modules

Memory Size 47200 steps of program memory and 32000 words of data memory

Processing Speed 0056 s basic instruction execution time

HighSpeed Capabilities 4 highspeed counters up to 100 kHz and 2 pulse outputs up to 100 kHz

Communication Builtin RS232CRS485 ports with support for Modbus RTU Modbus ASCII and Modbus TCPIP protocols

Efficient Digital Control for Industrial Environments

The FC5A-D16RK1 offers a comprehensive digital solution with 16 inputs and 16 relay outputs, providing flexibility for sophisticated automation tasks. Its rapid processing time of 0.24 ms per step delivers high-speed system responsiveness, essential for demanding industrial and process environments.

Scalable and Reliable Automation Platform

Expandable up to 512 I/O points, this PLC grows with your application needs while EEPROM backup safeguards your critical programs. Its robust plastic/ABS enclosure complies with IP20 standards, ensuring durable operation within a broad temperature and humidity range.

FAQ's of IDEC FC5A-D16RK1 MicroSmart Pentra PLC CPU Module:

Q: How do I program the IDEC FC5A-D16RK1 PLC module?

A: You can program the FC5A-D16RK1 using the WindLDR programming software, which provides a user-friendly interface for creating and managing automation programs up to 47,000 steps.

Q: What kind of input and output does this PLC support?

A: This module features 16 digital inputs and 16 relay outputs, making it suitable for a wide range of control and automation applications in industrial environments.

Q: When should I consider expanding the I/O capacity of this PLC?

A: Expansion is recommended when your application requires more than the built-in 16 inputs and 16 outputs. The FC5A-D16RK1 supports up to 512 I/O points through compatible expansion modules.

Q: Where can the FC5A-D16RK1 be installed?

A: Designed for industrial automation, this PLC is ideal for machine control and process control settings, requiring DIN rail mounting within an environment rated between 0C to 55C and 10-95% RH (non-condensing).

Q: What is the process for backing up programs on this PLC?

A: Programs are automatically stored in EEPROM memory within the PLC, ensuring your configurations remain intact even during power loss or unexpected shutdowns.

Q: What are the benefits of using the FC5A-D16RK1 in automation projects?

A: You benefit from fast response times, large program memory, robust expansion options, and high reliability, all wrapped in a compact, easy-to-install module, supporting efficient control and automation operations.
