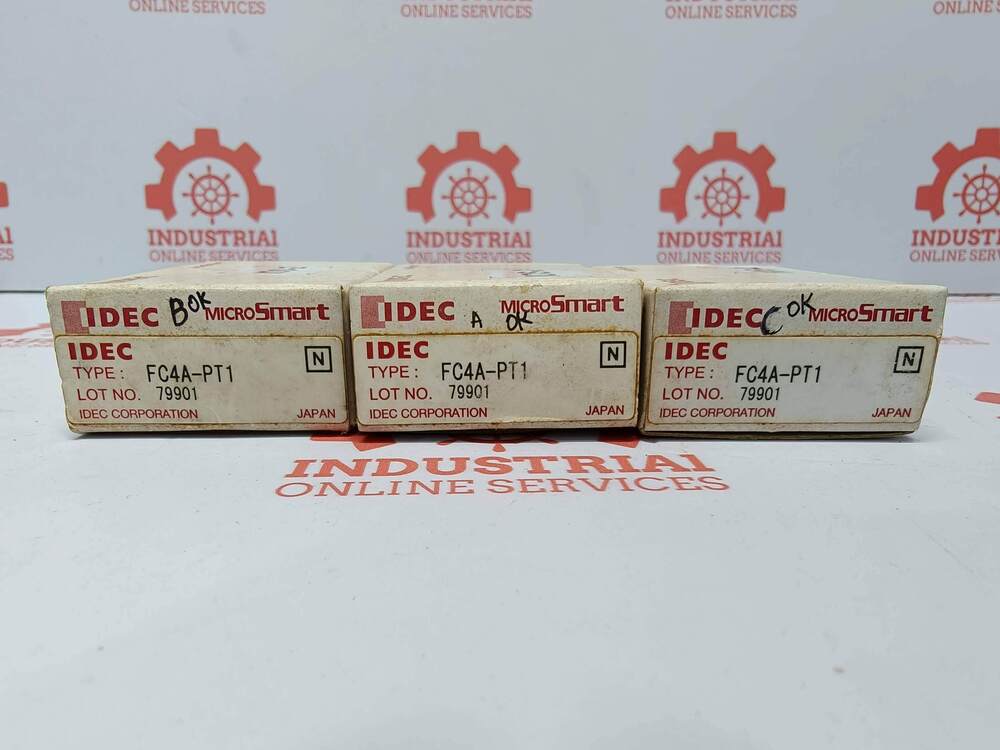

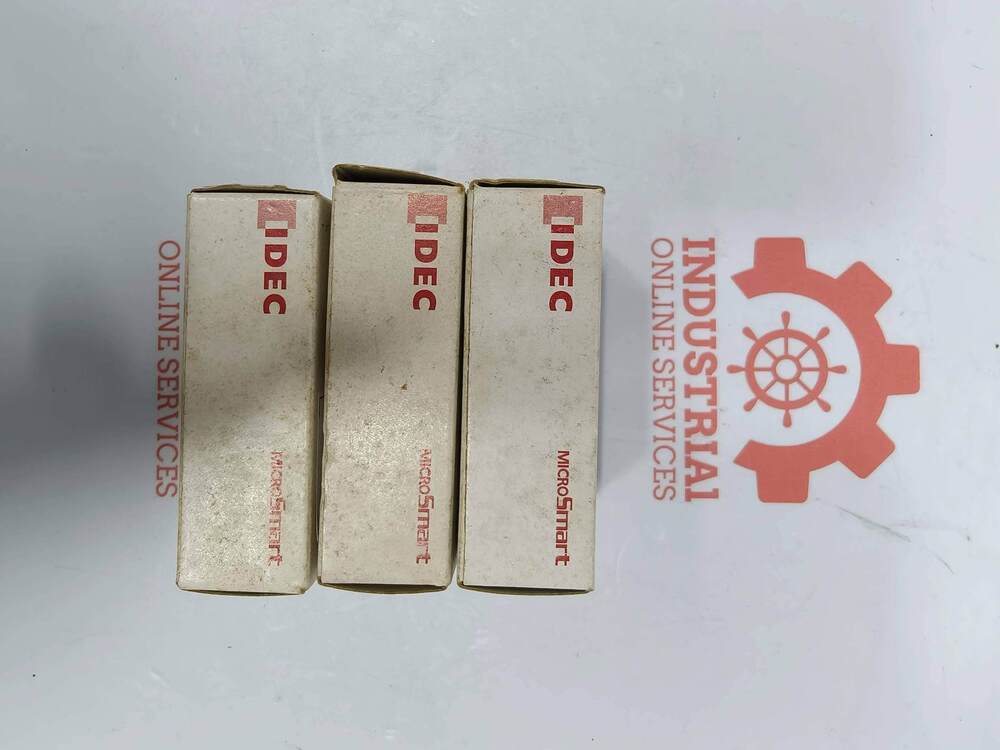

IDEC FC4A-PT1 Real-Time Clock (RTC)

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC4A-PT1 Real-Time Clock (RTC) Specification

Humidity
10% to 95% RH (non-condensing)

Rated Voltage
3V (Battery)

Input Current
Standard for module, negligibly low (battery-powered)

Mounting Type
Plug-in module for PLC

Protection Level
Standard module casing

Efficiency
High (Long-term, low current drain)

Operating Temperature
0C to 55C

Main Material
Electronic Component/IC Module

Processing Type
Time/date processing module

Condition
New

Function
Maintains time/date for offline PLC operations

Application
Real-Time Clock for IDEC PLC Systems (MicroSmart Pentra)

Dimension (L*W*H)
Approx. 20mm x 15mm x 10mm

Power Mode
Battery Operated (Dedicated RTC Battery)

Voltage
3V DC (internal battery)

Power Consumption
Low power, <0.1W

Battery Life
Typically 5 years (Lithium Battery)

Accessories
None (Unit Only)

Storage Temperature
-20C to 75C

Interface
Direct plug-in to controller base unit

Series
MicroSmart Pentra

Weight
Approx. 10g

Replacement Part For
IDEC PLC Real-Time Clock modules

Compatible Controllers
IDEC FC4A series PLCs

Product Model
FC4A-PT1

Data Retention
Maintains clock/calendar data during power loss

IDEC FC4A-PT1 Real-Time Clock (RTC) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC4A-PT1 Real-Time Clock (RTC)

IDEC FC4A-PT1 Real-Time Clock (RTC) / Clock Cartridge module designed for the IDEC MicroSmart series of Programmable Logic Controllers (PLCs)

Key Specifications & Status

Component Type: Clock Module / Peripheral Plug-in Cartridge
Supported Platform: IDEC MicroSmart Series PLCs (e.g., Slim type or All-in-One CPU modules)
Primary Function: Provides internal real-time clock and calendar data directly to the CPU registers.
Lifecycle Status: Discontinued by the manufacturer.

Seamless Integration with IDEC PLCs

The FC4A-PT1 RTC module is engineered for rapid installation into IDEC MicroSmart Pentra series controllers. Its direct plug-in design allows for effortless connection to the controller base unit without additional accessories, ensuring a sleek and reliable timekeeping upgrade for your automation system.

Reliable Data Retention During Power Loss

Featuring a dedicated 3V lithium battery, this real-time clock maintains all clock and calendar data even if external power is lost. This ensures accurate event tracking, scheduling, and PLC operations continuity without the risk of data corruption or reset.

Efficient, Low-Power Operation

With a typical battery life of five years and power consumption under 0.1W, the FC4A-PT1 provides exceptional efficiency. The low internal current drain makes it suitable for long-term use in demanding industrial automation environments.

FAQ's of IDEC FC4A-PT1 Real-Time Clock (RTC):

Q: How do I install the IDEC FC4A-PT1 Real-Time Clock module?

A: You can install the FC4A-PT1 by directly plugging it into the base unit of any compatible IDEC FC4A series PLC. No additional accessories are required, making integration straightforward and quick.

Q: What happens to the stored time and date data during a power outage?

A: The FC4A-PT1 uses a dedicated 3V lithium battery to retain clock and calendar data when system power is lost, ensuring that your PLC's time-sensitive operations remain uninterrupted.

Q: When should the FC4A-PT1 RTC module's battery be replaced?

A: Typically, the internal lithium battery lasts around five years under normal conditions. It is advisable to consider replacement after this period to ensure continued data retention and optimal performance.

Q: Which controllers are compatible with the FC4A-PT1 RTC module?

A: This module is specifically designed for use with IDEC FC4A series PLCs within the MicroSmart Pentra range, ensuring mechanical and electronic compatibility.

Q: What are the main benefits of using the FC4A-PT1 in a PLC system?

A: The FC4A-PT1 offers reliable real-time clock functionality, seamless integration, low power usage, and the ability to maintain accurate time and date data during power interruptions-improving system efficiency and uptime.

Q: Where can the FC4A-PT1 RTC module be used?

A: It is ideal for deployment in industrial environments requiring accurate timekeeping for automation and scheduling, such as manufacturing floors and process control systems utilizing IDEC MicroSmart Pentra PLCs.

Q: How does the FC4A-PT1 ensure high efficiency in long-term operations?

A: By combining a highly efficient electronic design with a low-drain lithium battery, the FC4A-PT1 ensures extended operational life and consistent data retention, even in rigorous industrial conditions.
