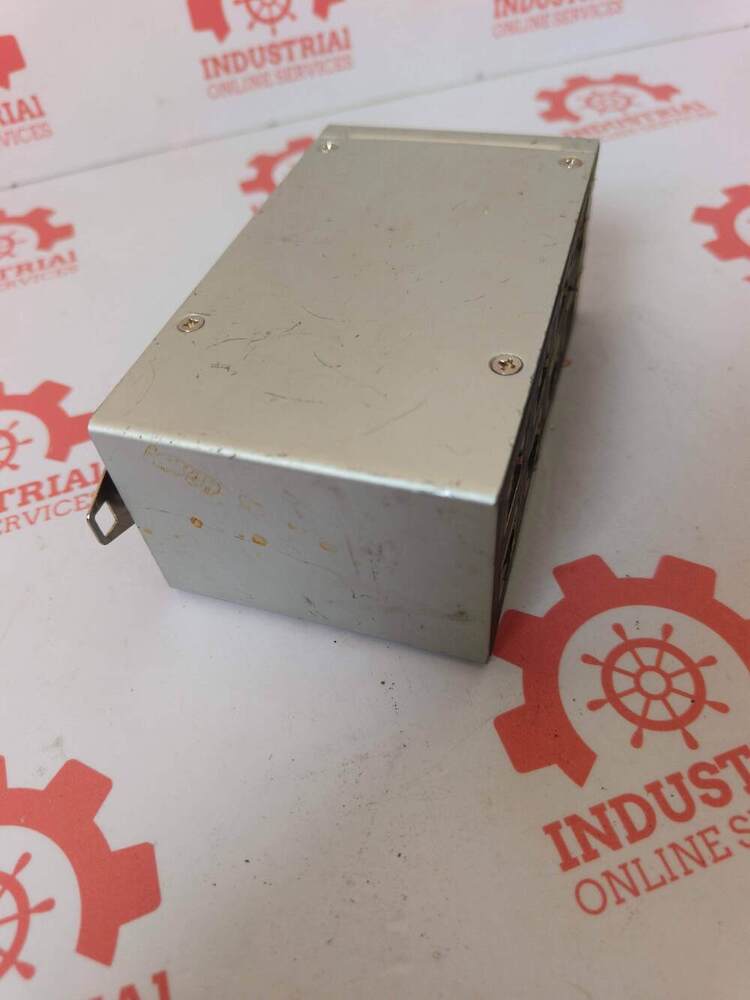

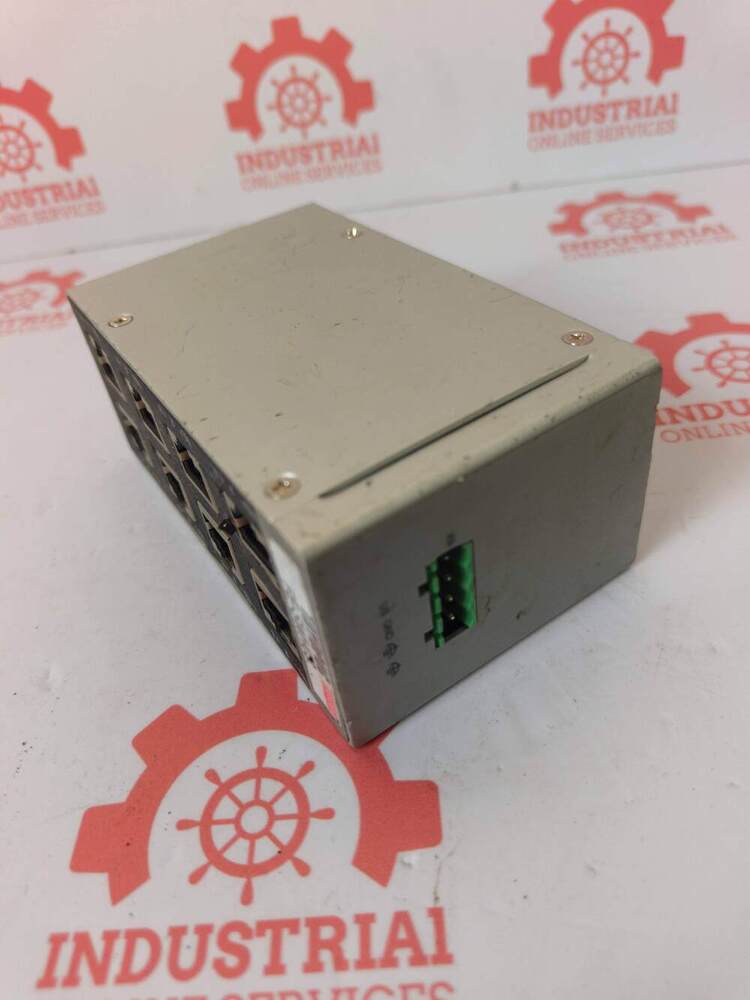

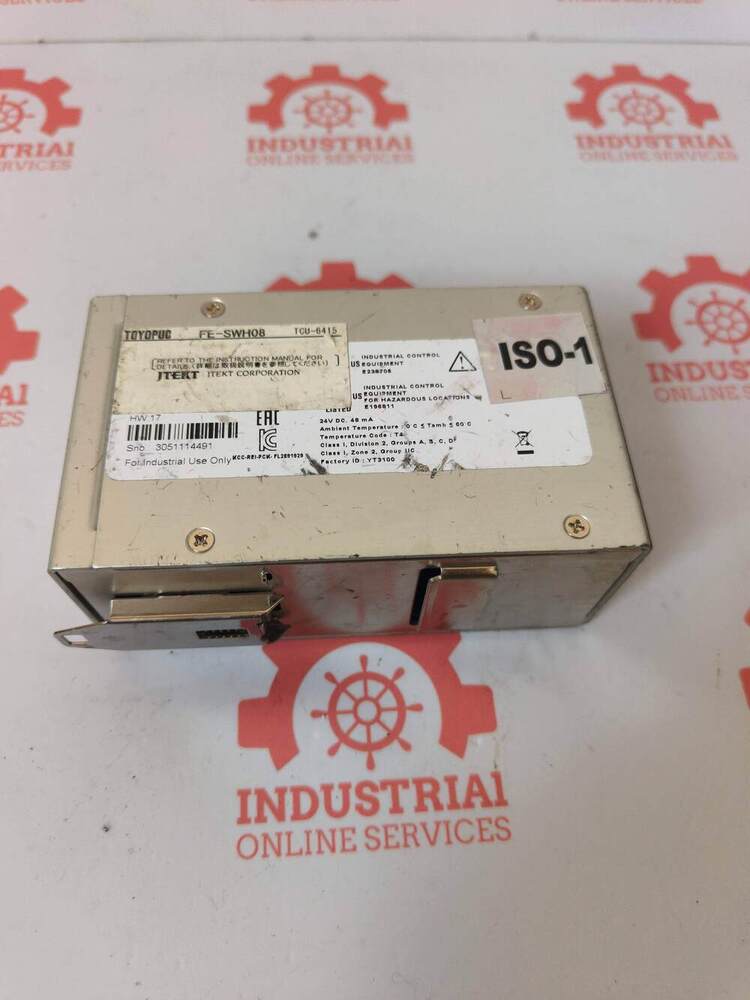

JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module

Send Inquiry

Request To Call Back

JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module

Name: JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Kilovolt

Get a Price/Quote

MOQ : 1 Piece

JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module Specification

Rated Voltage
24V DC

Mounting Type

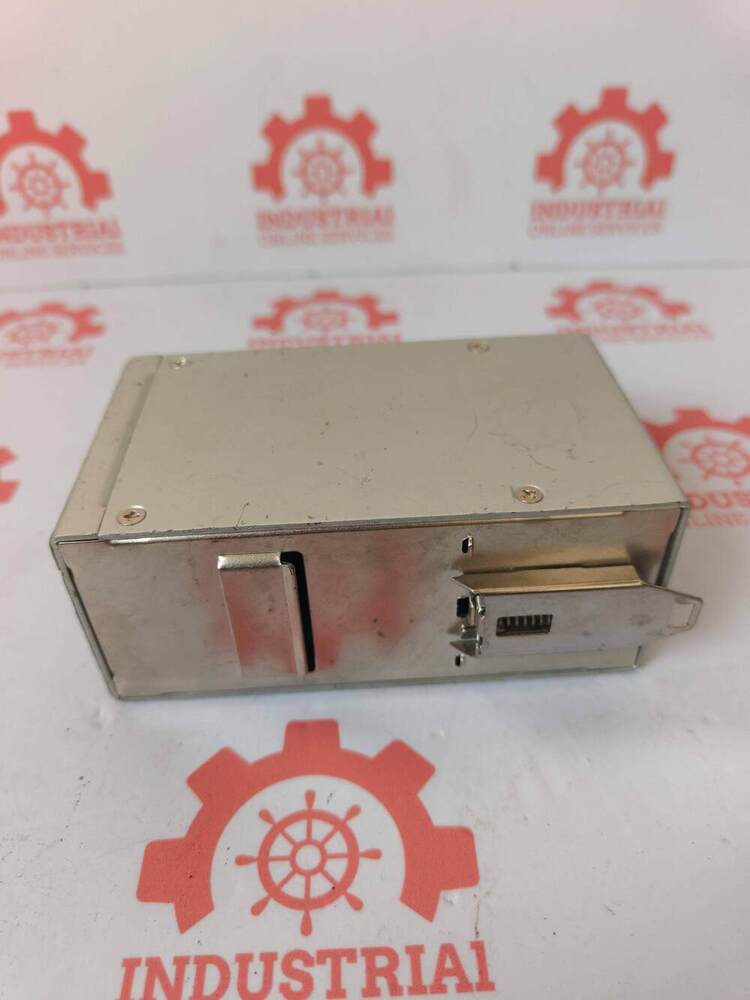

DIN rail mountable

Frequency
Not applicable (DC operation)

Protection Level
IP20

Humidity
10~90% RH (non-condensing)

Efficiency
High-efficiency network switching

Input Current
Less than 0.2A

Operating Temperature
0~55C

Main Material
Metal housing

Processing Type
Switching

Condition
Used / Refurbished

Function
Ethernet switching, network extension for TOYOPUC FE/PLC series

Application
Industrial automation, network communication for factory/PLC systems

Dimension (L*W*H)
Approx. 95mm x 70mm x 30mm

Power Mode
Direct DC input

Voltage
24V DC

Power Consumption
2W (typical)

Accessories
Not included

Model
TOYOPUC FE-SWH08

Weight
Approx. 250g

LED Indicator
Each port link/activity

Cooling
Passive air cooling (non-fan)

Enclosure Type
Compact, industrial-grade metal

Number of Ports

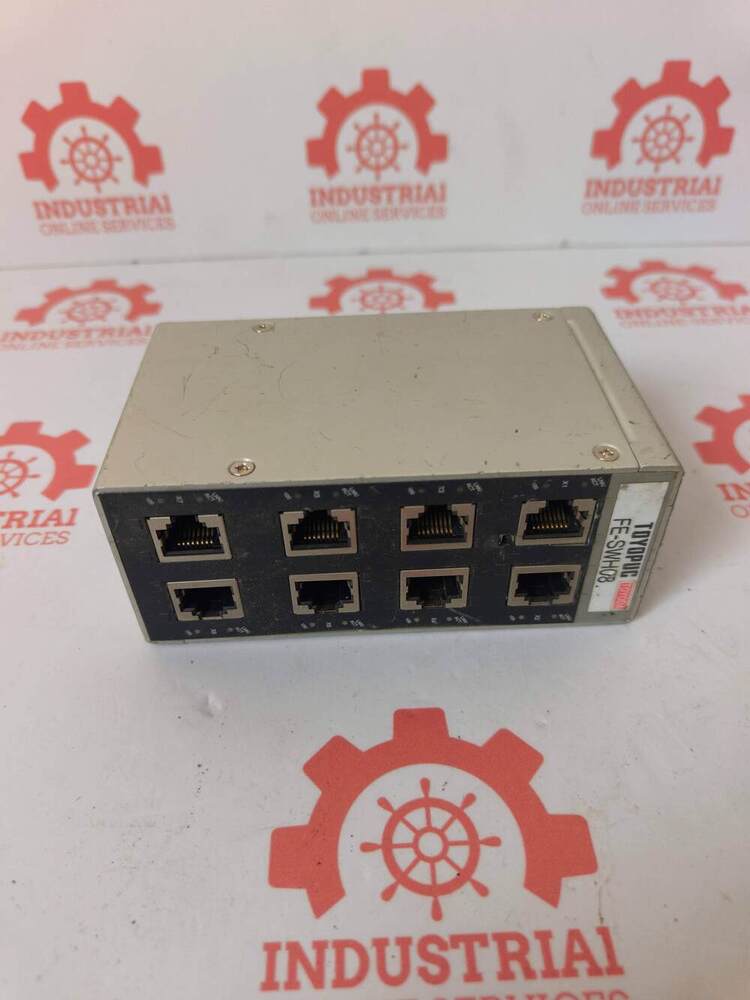

8 x RJ45 Ethernet ports

Communication Standard
IEEE 802.3, IEEE802.3u

Transmission Speed
10/100 Mbps (auto-sensing)

Isolation
1500V isolation between ports

Compatibility
Designed for TOYOPUC FE series and other industrial controllers

JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module

JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module

Key Specifications & Architecture

Component Type: 8-port Ethernet Switching HUB module.

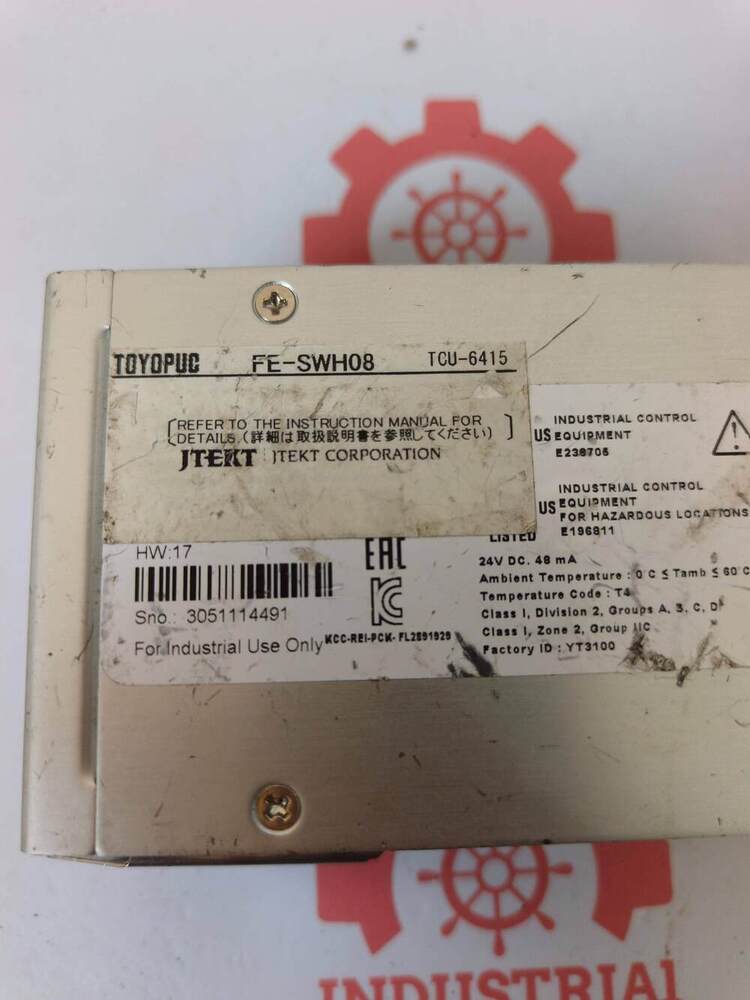

Model Type Number: TCU-6415.
Primary Function: Provides network expansion and data routing within automated manufacturing environments and factory floors.
Integration: Commonly paired alongside standard CPU modules (like the Nano 10GX) and power modules to manage peripheral factory automation equipment.

Industrial Networking Simplified

The JTEKT TOYOPUC FE-SWH08 enables quick, reliable network expansion in industrial environments. Designed specifically for factory automation and PLC integration, it offers seamless compatibility with TOYOPUC FE series controllers and can be easily deployed in other automation systems. Its compact size and DIN rail mounting allow for space-efficient, organized installations inside control cabinets.

Robust and Reliable Performance

With metal housing, high isolation, and passive cooling, the FE-SWH08 is engineered for longevity even under harsh operational conditions. LED indicators at each port offer immediate feedback on link status and activity, ensuring rapid troubleshooting and system health monitoring for maintenance teams.

FAQ's of JTEKT TOYOPUC FE-SWH08 Industrial 8-port Switching HUB Module:

Q: How is the JTEKT TOYOPUC FE-SWH08 installed in an industrial network?

A: The FE-SWH08 is designed for easy DIN rail mounting within industrial control cabinets. Simply secure the unit to the DIN rail, connect the 24V DC power input, and plug in Ethernet cables to the RJ45 ports. Once installed, the hub provides automatic switching and network extension for PLCs and related automation devices.

Q: What types of devices can be connected to the FE-SWH08 switching hub?

A: You can connect a wide range of industrial controllers, PLCs (including all TOYOPUC FE series models), and Ethernet-enabled automation equipment. It is fully compatible with devices operating at 10/100 Mbps and conforms to IEEE 802.3/802.3u networking standards.

Q: When should I use this module in my industrial setup?

A: The FE-SWH08 is ideal for situations requiring network extension or robust Ethernet switching within industrial automation systems. It's best deployed when you need reliable, isolated communication between multiple controllers or PLC modules in environments with high electrical interference.

Q: Where is the optimal location to install the FE-SWH08 module?

A: For best results, install the module inside an industrial control panel or cabinet on a DIN rail, ensuring adequate airflow for passive cooling. Its IP20 protection suits indoor environments with controlled temperature and humidity, typically found in factory automation settings.

Q: What benefits does port isolation provide in this switching hub?

A: With 1500V isolation between ports, sensitive networked equipment is protected against electrical surges and interference. This enhances reliability and minimizes the risk of communication failures or data loss in electrically noisy industrial environments.

Q: How does the FE-SWH08 help with network troubleshooting?

A: The built-in LED indicators for each port display real-time link and activity status, making it easy to identify connection issues or check network performance at a glance. This simplifies maintenance and reduces system downtime during fault diagnosis.
