SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter

Name: SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter Specification

Efficiency
High Accuracy Class 1.0

Rated Voltage
230V/415V AC

Input Current
5A/1A (CT Connected)

Phase
Three Phase

Protection Level
IP51 (front side)

Operating Temperature
-10C to +55C

Mounting Type
Panel Mount

Frequency
50 Hz

Humidity
85% RH (non-condensing)

Main Material
Industrial ABS plastic, Metal components

Processing Type
Electronic

Condition
New

Function
Measures and displays electrical energy consumption (kWh)

Application
Industrial and commercial energy monitoring

Dimension (L*W*H)
96 x 96 x 60 mm (approx)

Power Mode
Mains Powered

Voltage
230V AC

Power Consumption
< 2W

Battery Life
Not Applicable (Powered by mains)

Accessories
Standard mounting accessories included

Meter Type
Electronic Digital Energy Meter

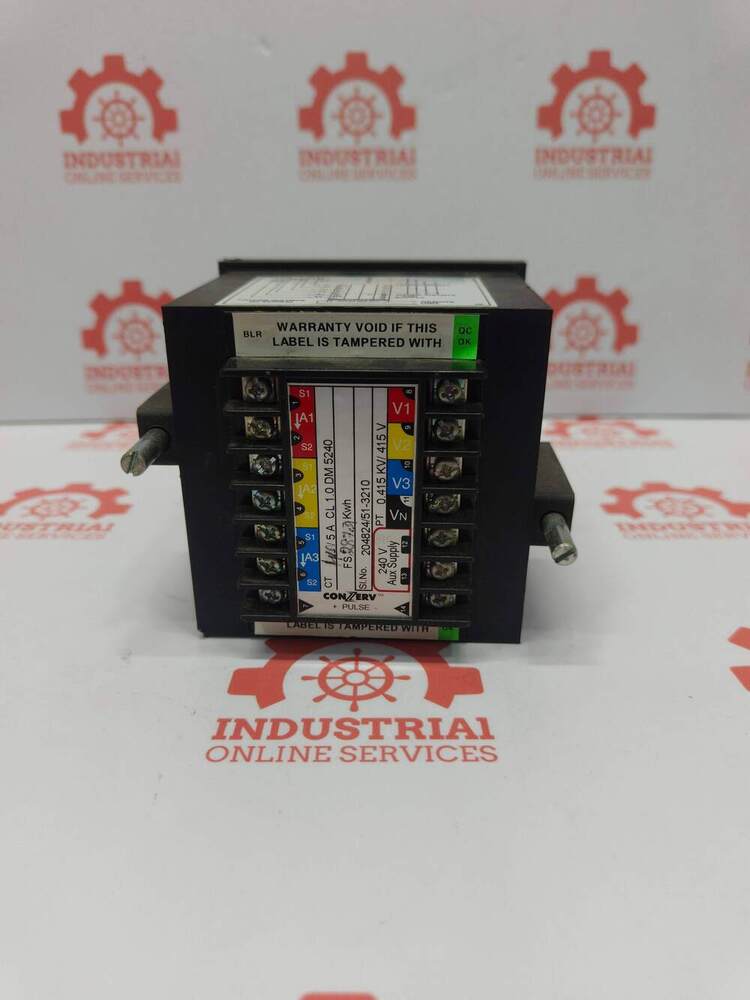

Terminal Type
Screw Terminal

Measurement Type
Active Energy (kWh)

Pulse Output
Yes, for remote monitoring

Model
DM-5240

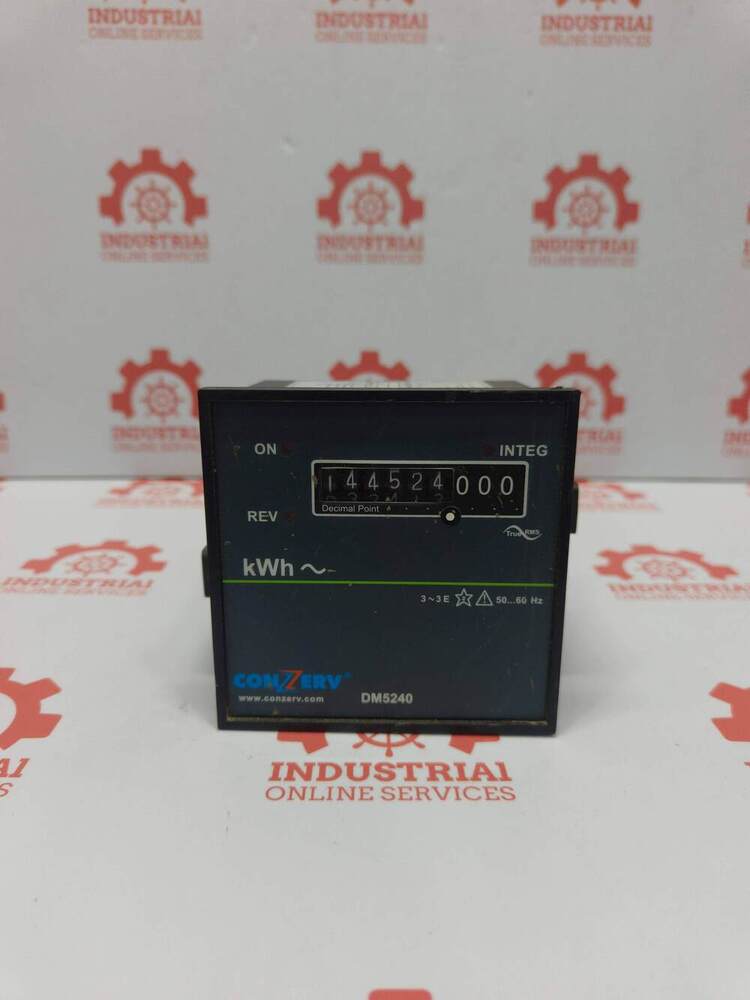

Display Type
Mechanical Counter

SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter

SCHNEIDER DM5240 IndustrialGrade Electronic Digital Energy Meter

Key Technical Specifications

The technical breakdown of the DM5240 includes

Application ThreePhase FourWire 3P4W networks or singlephase configurations

Measurement True RMS monitoring accurate even on distorted waveforms

Accuracy Class Available in Class 10 or Class 05 variants complying with IEC standards

Secondary Output Converts primary system currents into a standard 5A or 1A secondary output

Auxiliary Power Supply Commonly runs on a 110V AC or 240V AC auxiliary configuration depending on the exact SKU

Form Factor standard 96 x 96 mm panelmount sizing

Standout Features

Simultaneous Sampling Captures volts and amps concurrently for higher utility calculation precision

Pulse Output Feature Integrates with wider energy management systems EMS using standard pulse width constants

Industrial Durability Built with a sealed dustproof casing to prevent environmental degradation inside control panels

Diagnostics Features a reverse LED configuration to streamline local troubleshooting during field setups

Precision Energy Measurement for Industry

The SCHNEIDER DM-5240 is engineered to deliver highly accurate monitoring of electrical energy consumption in demanding industrial and commercial settings. Its electronic digital design ensures efficiency and reliability, providing a precise measurement of active energy (kWh) and helping businesses optimize energy management strategies.

Durable Design for Tough Environments

Built with industrial ABS plastic and metal components, this energy meter is well-suited to handle challenging industrial environments. With an IP51 (front) protection rating, it withstands dust and limited moisture, while its wide operating temperature range ensures performance stability. The panel mount design with screw terminals allows for easy installation.

FAQ's of SCHNEIDER DM-5240 Industrial-Grade Electronic Digital Energy Meter:

Q: How do I install the SCHNEIDER DM-5240 energy meter in my facility?

A: The meter is designed for panel mounting and features screw terminals for straightforward wiring. Simply use the included standard mounting accessories to securely attach it to your chosen panel, ensuring proper connections for three-phase systems.

Q: What are the main benefits of using this energy meter in industrial applications?

A: The DM-5240 provides high accuracy (Class 1.0) measurements, durable construction, and reliable operation. Its pulse output enables remote monitoring, making it a valuable tool for optimizing energy usage, tracking consumption trends, and supporting efficiency initiatives.

Q: When should I use this energy meter with external current transformers (CTs)?

A: This meter is ideal for installations with varying current loads. It accepts CT-connected input currents of 5A or 1A, making it suitable for large industrial loads where direct connection isn't feasible or when enhanced measurement precision is required.

Q: Where can this meter be used?

A: The SCHNEIDER DM-5240 is suitable for industrial and commercial applications, such as factories, plants, commercial buildings, and facilities requiring accurate, reliable energy consumption monitoring across three-phase power systems.

Q: What process does the meter use to measure energy consumption?

A: The meter electronically measures active energy (kWh) by processing input current and voltage, displaying the cumulative result on a mechanical counter and transmitting data through its pulse output for remote readouts.

Q: How does the meter remain powered and does it require battery replacement?

A: The DM-5240 is powered by the mains supply (230V/415V AC) and does not require batteries, thereby minimizing maintenance and ensuring continuous energy measurement without interruption.
