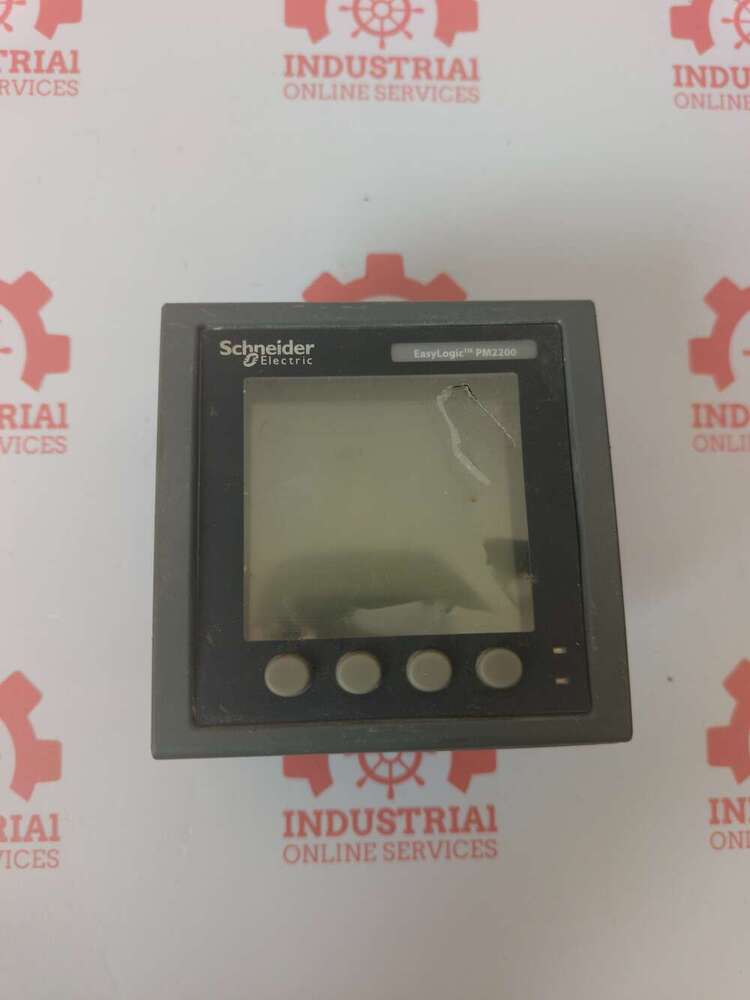

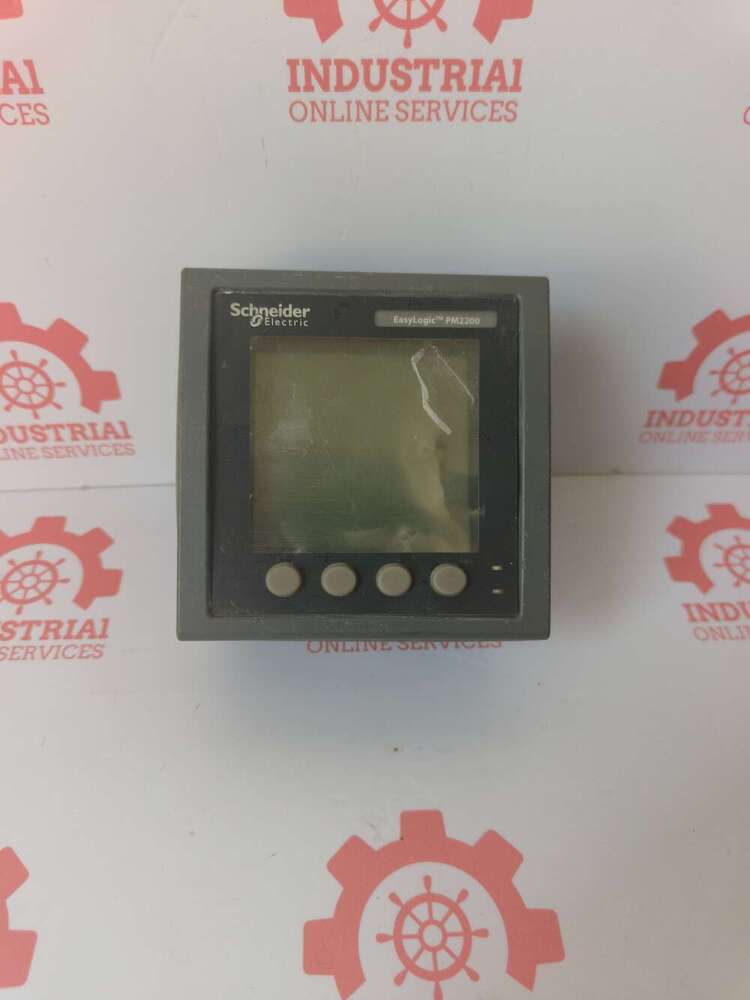

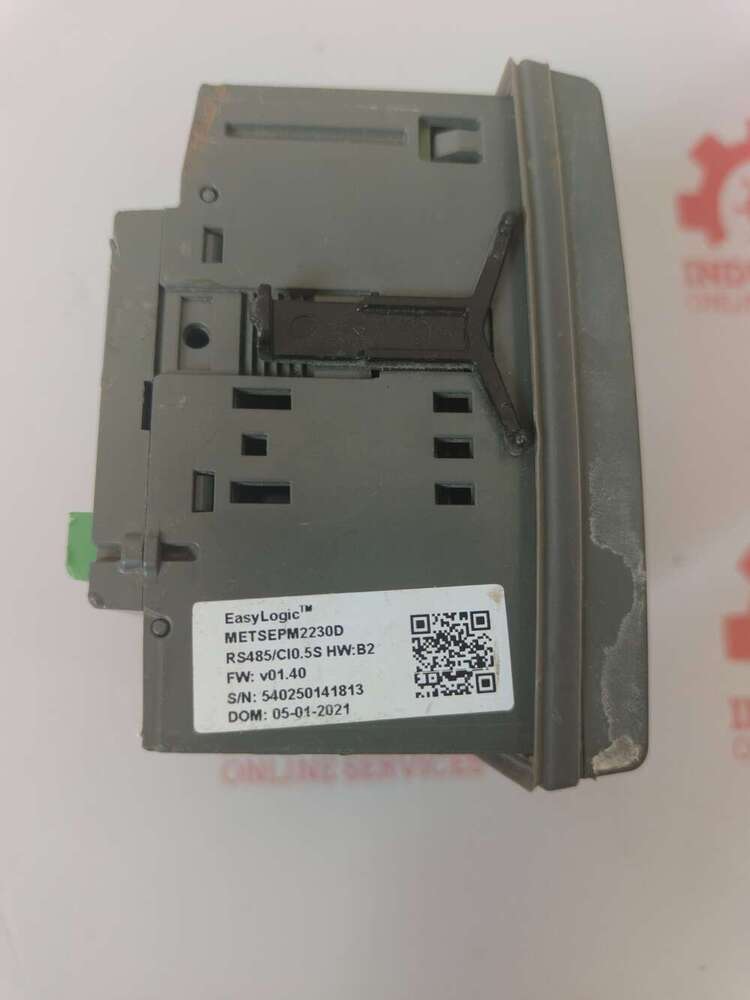

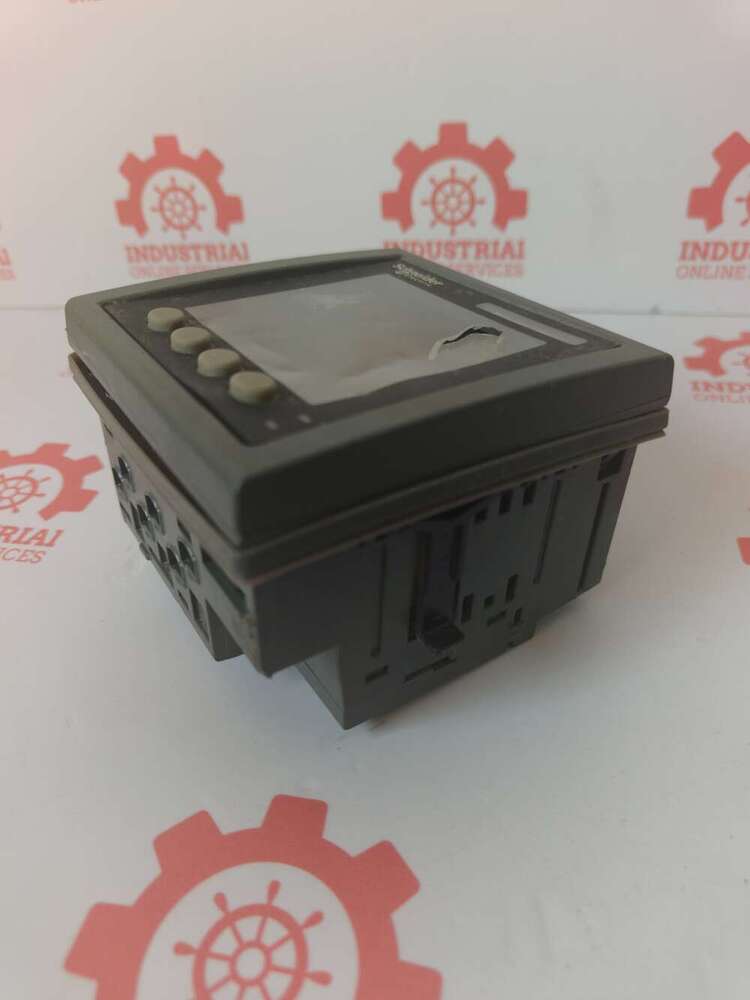

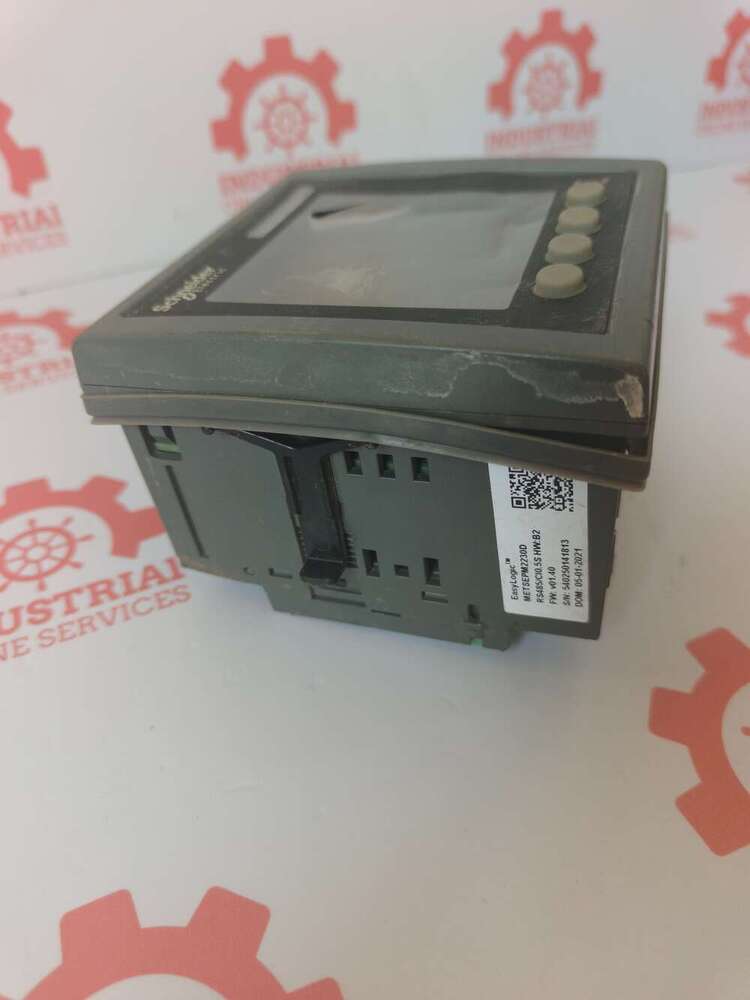

Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter

Name: Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter Specification

Phase
Three Phase

Input Current
1A/5A (via external CTs)

Rated Voltage
230V AC

Mounting Type
Panel Mount

Humidity
<95% RH (non-condensing)

Protection Level
Front Protection IP51, Body IP20

Operating Temperature
-10C to +55C

Frequency
50/60 Hz

Efficiency
High accuracy, Class 1 (Energy measurement)

Main Material
ABS/Polycarbonate Enclosure

Processing Type
Digital

Condition
New

Function
Power & Energy Metering (kWh, kVAh, Power Factor, Voltage, Current, Frequency, etc.)

Application
Power & Energy Measurement; Panel Metering, Submetering, Power Monitoring

Dimension (L*W*H)
96 x 96 x 52 mm (Approx.)

Power Mode
AC Powered

Voltage
230V AC (operating); 176...276V AC (nominal range)

Power Consumption
< 3 VA

Accessories
User Manual, Mounting Hardware (if applicable)

Display Type
Backlit LCD

Measurement Category
CAT III

Communication Port
RS485 (Modbus RTU)

Model
EasyLogic PM2230 (Schneider METSEPM2230D)

Accuracy Class
Class 1 (kWh), Class 2 (kVARh)

Maximum Storage Temperature
-25C to +70C

Pulse Output
1 (Energy) pulse output

Auxiliary Supply Voltage
176 to 276 V AC / 44 to 276 V DC

Data Logging
No

Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter About

Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter

The Schneider Electric METSEPM2230D is a high-performance EasyLogic PM2230 digital power and energy meter designed for precise electrical measurement and monitoring in commercial and industrial sub-billing applications

Key Specifications & Features

Measurement Accuracy: Delivers Class 0.5S accuracy for active energy compliance according to IEC 62053-22 standards.
Power Quality Analysis: Tracks total harmonic distortion (THD) and individual harmonics up to the 31st harmonic.
Display: Equipped with a monochrome, backlit LCD display for real-time local monitoring.
Communication Protocol: Includes built-in RS485 Modbus RTU ports for seamless integration into energy management systems.
Electrical Inputs: Supports nominal current inputs of 1A or 5A and a wide voltage input range up to 480 VLL (CAT III) or 600 VLL (CAT II).
Form Factor: Features a robust, flush-mount design with a compact 96mm x 96mm front bezel

Enhanced Power and Energy Monitoring

The EasyLogic PM2230 Energy Meter delivers precise measurement of key electrical parameters, including kWh, kVAh, power factor, voltage, current, and frequency. With accuracy class 1 for energy and robust digital processing, it ensures reliable data for diagnostics, efficiency tracking, and compliance reporting. Its wide auxiliary supply voltage range ensures adaptability across various installation settings.

Intuitive Display and User-Friendly Interface

The meter features a backlit LCD display for effortless reading even in low-light conditions. Simple navigation and a practical interface streamline set-up and regular monitoring, making it suitable for a wide range of users, from technical staff to facility managers.

Built for Versatility and Durability

Constructed with a sturdy ABS/polycarbonate enclosure and rated for operating temperatures from -10C to +55C, the EasyLogic PM2230 is designed to withstand harsh conditions. Its IP51 front protection facilitates installation in demanding panel environments, ensuring long-term operational reliability.

FAQ's of Schneider METSEPM2230D EasyLogic PM2230 Power & Energy Meter:

Q: How do I install the Schneider EasyLogic PM2230 power meter?

A: Installation is straightforward as the EasyLogic PM2230 is designed for panel mounting. The product package includes necessary mounting hardware and a user manual to guide you through the process. Make sure to connect external current transformers (CTs) as required and wire the auxiliary supply within the 176-276V AC or 44-276V DC range.

Q: What parameters can I measure with the EasyLogic PM2230 meter?

A: This meter measures and displays a wide range of electrical parameters, including energy (kWh, kVAh), power factor, voltage, current (via external CTs for 1A/5A input), and frequency. These readings help monitor system efficiency and electrical health.

Q: When is it beneficial to use the PM2230 for power monitoring?

A: The PM2230 is ideal for continuous monitoring of electrical consumption in commercial, industrial, and utility submetering applications. Real-time and historical measurements help facilities optimize energy usage and improve power quality management.

Q: Where can I utilize the METSEPM2230D EasyLogic PM2230 in my electrical system?

A: This meter is suitable for installation in power distribution panels, switchboards, and control panels in diverse environments such as factories, commercial buildings, and infrastructure projects. Its flexible voltage and environmental tolerance make it practical across many sites.

Q: What is the communication protocol supported by the PM2230?

A: The meter provides an RS485 communication port that supports the Modbus RTU protocol, enabling seamless integration with building management systems and remote supervisory applications.

Q: How accurate is the EasyLogic PM2230 in energy metering?

A: The meter offers high accuracy with Class 1 certification for active energy (kWh) measurement and Class 2 for reactive energy (kVARh), ensuring precise data for billing, load analysis, and energy management.

Q: What benefits does the EasyLogic PM2230 offer for energy managers and facility operators?

A: Benefits include robust accuracy, easy-to-read LCD display, low power consumption (<3 VA), and broad environmental tolerance. The device aids energy management by providing detailed load analysis, tracking consumption trends, and supporting efficient electrical operation.
