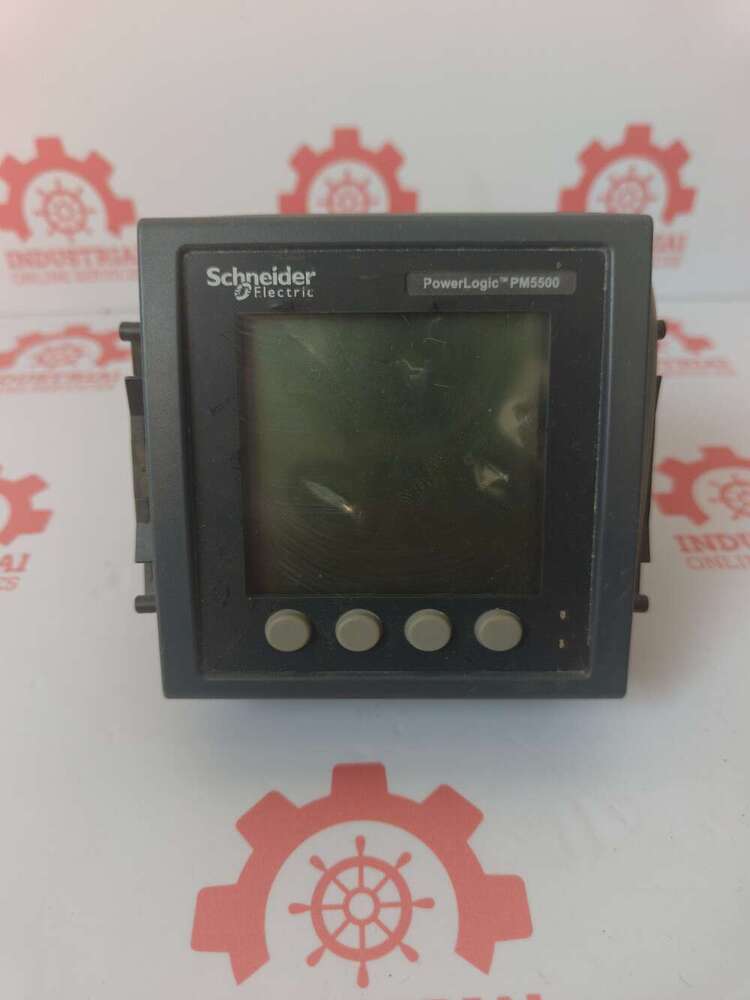

Schneider PM5500 PowerLogic Power Meter

Name: Schneider PM5500 PowerLogic Power Meter
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Schneider PM5500 PowerLogic Power Meter Specification

Humidity
5% to 95% RH (non-condensing)

Input Current
1 A / 5 A programmable (from CTs)

Rated Voltage
Up to 480 V AC L-L

Protection Level
Front panel IP54, body IP30

Phase
Three-phase or single-phase compatible

Frequency
50/60 Hz (nominal)

Efficiency
N/A (measuring device)

Mounting Type
Panel mount (DIN 96 cutout)

Operating Temperature
-25C to +70C

Output Voltage
N/A (measurement device)

Main Material
Flame-retardant plastic enclosure

Processing Type
Measuring and monitoring electrical parameters

Condition
New / Refurbished depending on stock

Function
Multi-function Power Meter, energy monitoring, data logging

Application
Energy and power quality monitoring in electrical panels

Dimension (L*W*H)
96 x 96 x 72 mm (Approx.)

Power Mode
AC powered

Voltage
57-277 V AC L-N / 100-480 V AC L-L

Power Consumption
Less than 5 VA

Battery Life
Typically 10 years

Accessories
User manual, mounting kit (supplied as per standard)

Communication Port
RS485 (Modbus RTU), Ethernet (Modbus TCP/IP)

Weight
Approx. 0.5 kg

Data Logging Capacity
Up to 50 parameters, configurable

Voltage Input Impedance
>2 M

Digital Inputs
2 configurable digital inputs

Alarm Outputs
2 digital (relay) outputs

Memory
Onboard logging, up to 14 years (depending on configuration)

Standards Compliance
IEC 61010, IEC 61557-12, UL61010-1

Display Type
Backlit LCD, 4-line

Environmental Protection
RoHS compliant

Password Protection
User configurable

Current Input Burden
< 0.5 VA max

Accuracy Class
Class 0.2S (energy), Class 1 (current/voltage)

Software Support
EcoStruxure Power Monitoring Expert, Power SCADA

Schneider PM5500 PowerLogic Power Meter Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Schneider PM5500 PowerLogic Power Meter

Schneider PM5500 PowerLogic Power Meter

The Schneider Electric PowerLogic PM5500 is an advanced multifunction digital power and energy meter designed for highend industrial and commercial cost management and power quality analysis It provides precise electrical measurements features an integrated web server and offers native multiprotocol communication capabilities to seamlessly blend into facility energy management programs

Key Technical Specifications

Accuracy Class Class 02S for highly precise billing and monitoring safety

Control Power Input Supports a wide operating range of 100480V AC 5060 Hz or 125250V DC

Voltage Input Directly monitors 20690V AC LinetoLine IEC or 20600V AC LinetoLine UL under Category III conditions

Current Input Nominal 1A or 5A Current Transformer CT inputs measuring from 005A up to 10A

Harmonics Measurement Advanced power quality analysis recording up to the 63rd harmonic

Data Logging Includes onboard memory eg 11 MB on the PM5560 model to store logs alarms and up to 52 parameters

BuiltIn Communication Options

The series includes flexible connectivity variations such as

Dual Ethernet ports for daisychain configurations

RS485 Modbus serial lines

BACnet protocol support

Versatile Energy & Power Quality Monitoring

The PM5500 supports detailed monitoring of electrical parameters, making it an ideal choice for both single-phase and three-phase panels. Its multi-function capabilities provide in-depth insights into energy usage, empowering users to make informed decisions for energy management and cost savings.

Advanced Communication & Integration

Equipped with RS485 (Modbus RTU) and Ethernet (Modbus TCP/IP), along with onboard data logging for up to 14 years, the PM5500 ensures seamless integration with leading software platforms like EcoStruxure Power Monitoring Expert and Power SCADA for centralized, real-time analysis and reporting.

Reliable Performance & Compliance

Designed with a flame-retardant enclosure and front panel IP54 protection, the PM5500 guarantees durability in demanding environments. It adheres to leading international standards, providing peace of mind for electrical safety, quality, and long-term operational reliability.

FAQ's of Schneider PM5500 PowerLogic Power Meter:

Q: How does the Schneider PM5500 Power Meter assist in energy monitoring?

A: The PM5500 accurately measures a wide range of electrical parameters and logs up to 50 configurable data points, enabling in-depth analysis of energy consumption and power quality, helping users identify inefficiencies and optimize usage.

Q: What communication options does the PM5500 support for data integration?

A: This meter features both RS485 (Modbus RTU) and Ethernet (Modbus TCP/IP) ports, allowing easy integration with popular software such as EcoStruxure Power Monitoring Expert and Power SCADA for remote monitoring and data management.

Q: When should I consider using the onboard logging feature?

A: You should utilize the onboard logging for long-term data storage and analysis, especially when monitoring energy trends, complying with audits, or reviewing system performance over time-logging can retain information for up to 14 years, depending on how the memory is configured.

Q: Where is the PM5500 typically installed?

A: The PM5500 is designed for panel mounting (DIN 96 cutout) in electrical distribution panels and is suitable for use in commercial, industrial, and utility environments requiring advanced energy and quality measurements.

Q: What is the process to configure alarms and digital inputs on the PM5500?

A: Alarms and digital inputs are user-configurable via the device's LCD display or remotely through connected software. Users can set conditions for relay outputs and digital signals to trigger based on specific parameter thresholds.

Q: How does password protection benefit device usage?

A: User-configurable password protection secures critical meter settings and data, providing controlled access to authorized personnel and ensuring data integrity in sensitive applications.

Q: What are the key benefits of installing the PM5500 in my facility?

A: The main advantages include high measurement accuracy (Class 0.2S), robust data logging, flexible communication, durable construction, and compliance with international standards. This combination improves energy management, enhances operational efficiency, and supports regulatory compliance.
