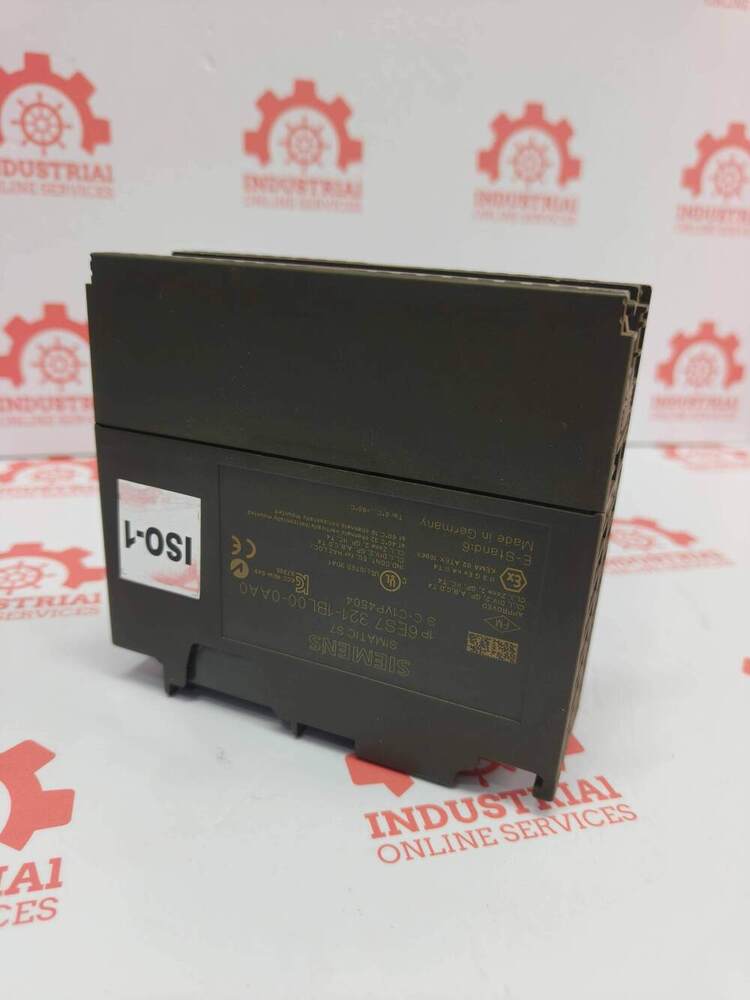

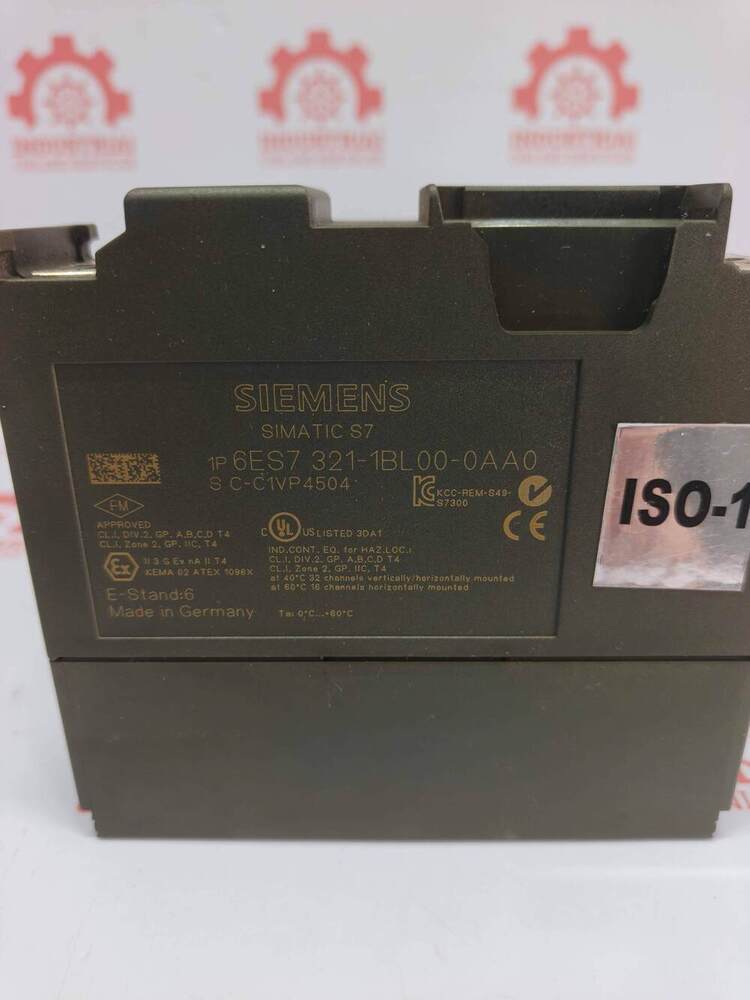

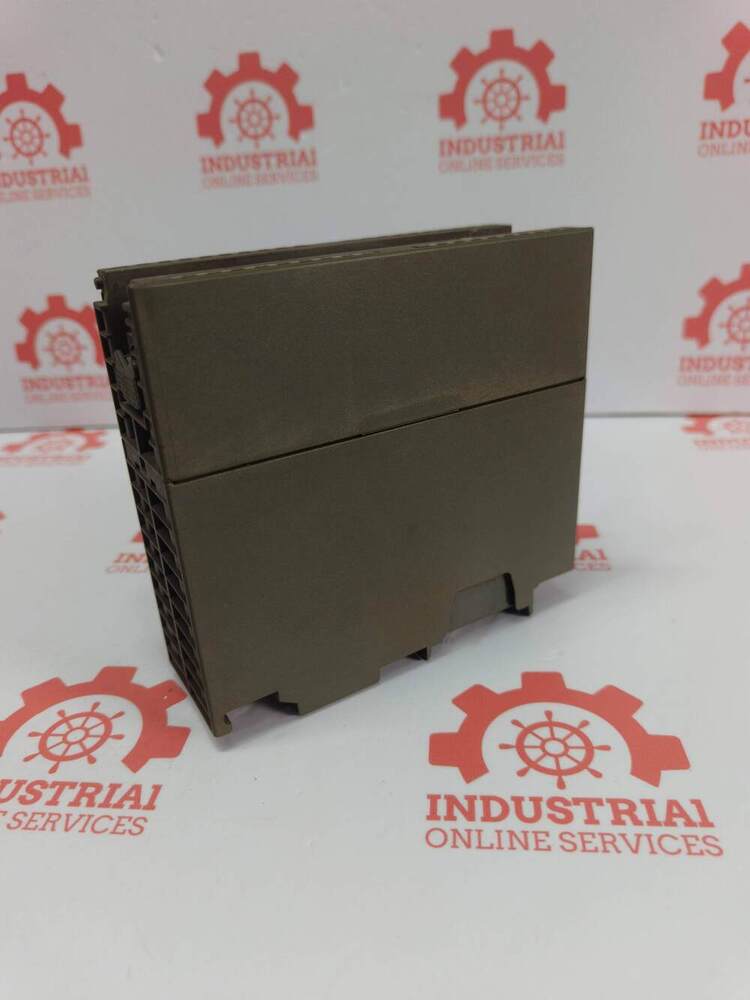

SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321)

Send Inquiry

Request To Call Back

SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321)

Name: SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321)
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321) Specification

Input Current
Approx. 7 mA per channel

Phase
Single Phase (typical for input voltage)

Humidity
5-95% RH, non-condensing

Frequency
47-63 Hz (for supply voltage compatibility)

Rated Voltage
24 V DC

Mounting Type
DIN Rail Mounting

Operating Temperature
0C to 60C

Efficiency
Optimized for industrial environments

Protection Level
IP20

Main Material
Industrial-grade Plastic, Electronic Components

Processing Type
Digital Input Processing

Condition
New

Function
Digital Input 32 Channels

Application
Industrial automation, Digital Input for SIMATIC S7-300 PLC

Dimension (L*W*H)
Approx. 125 x 40 x 120 mm

Power Mode
External Supply

Voltage
24 V DC (Input voltage)

Power Consumption
Approx. 2.8 W

Accessories
No additional accessories included

Module Type
6ES7321-1BL00-0AA0

Backplane Current Consumption
Approx. 70 mA

Module Width
40 mm

Connection Type
Front Connector (40-pin)

Product Type
Digital Input Module (SM 321)

Number of Inputs
32 digital inputs

Isolation
Optical isolation between channels and backplane bus

Signal Delay
Approx. 3 ms

Input Type
Sink or Source type (configurable)

Group Diagnostics
Yes, per group of 8 channels

Storage Temperature
-40C to +70C

SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321)

SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321)

Core Specifications

Inputs: 32 digital inputs, electrically isolated into 2 groups of 16.
Rated Voltage: 24 V DC (permissible input range: 20.4 V to 28.8 V DC).

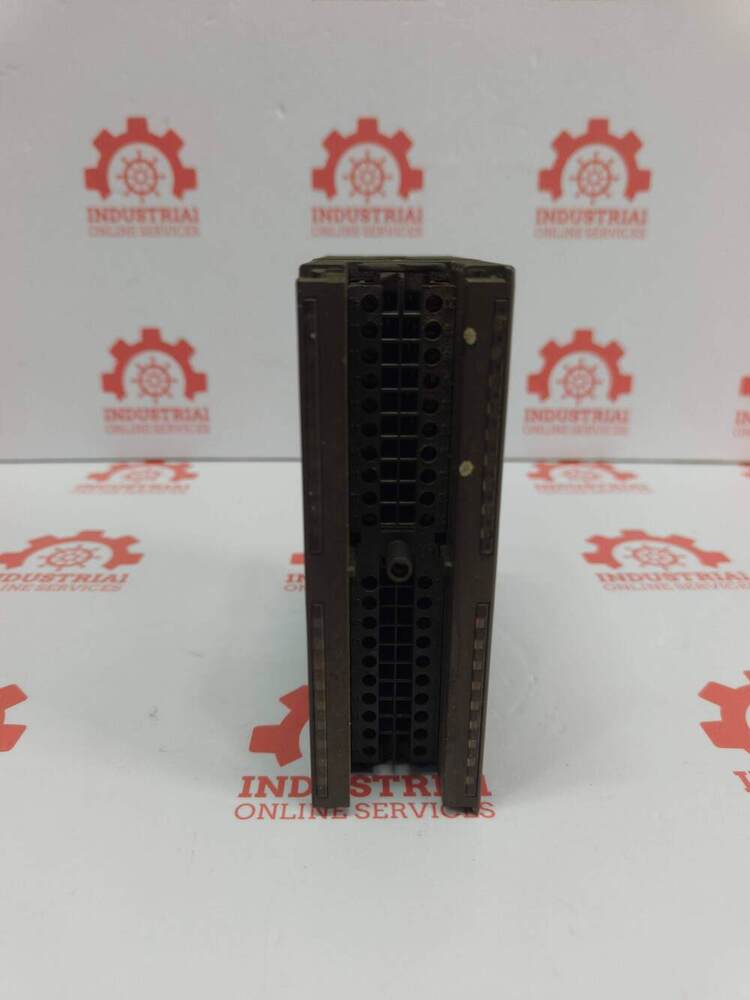

Connection: Requires 1x 40-pole front connector.
Input Delay: 1.2 to 4.8 ms switching time for signal transitions.
Current Consumption: Maximum 15 mA from the 5 V DC backplane bus.
Power Loss: Typically 6.5 W during normal operation.
Sensor Compatibility: Supports basic mechanical switches and 2-/3-/4-wire proximity switches (BEROs).

Versatile Digital Input Configuration

This SM 321 module offers flexibility with 32 digital inputs, each configurable for sink or source type operation. It easily adapts to various sensor and signal specifications, ensuring seamless integration into existing industrial control systems. The module supports high-density wiring through its convenient 40-pin front connector.

Reliable Performance and Diagnostics

Equipped with optical isolation between inputs and the backplane bus, this module ensures robust protection against electrical interference. Group diagnostics are available per segment of 8 channels, providing quick identification and troubleshooting of input issues, which enhances uptime and system reliability.

Optimized for Industrial Environments

Constructed with industrial-grade plastic and high-quality electronic components, the SM 321 is engineered for durability and efficiency. It operates effectively within a wide temperature range (0C to 60C) and withstands high humidity levels, making it suitable for harsh industrial environments across India.

FAQ's of SIEMENS 6ES7321-1BL00-0AA0 SIMATIC S7-300 Digital Input Module (SM 321):

Q: How is the SIEMENS 6ES7321-1BL00-0AA0 Digital Input Module used in industrial automation?

A: This module is installed in SIMATIC S7-300 PLC systems to collect and process digital signals from field devices such as sensors or switches. It allows real-time monitoring and control of production processes, improving automation efficiency and system responsiveness.

Q: What are the benefits of optical isolation in the SM 321 Digital Input Module?

A: Optical isolation provides electrical separation between input channels and the backplane bus, protecting sensitive electronic components from voltage spikes and interference, thereby enhancing equipment lifespan and minimizing downtime.

Q: When should I use group diagnostics with this Digital Input Module?

A: Group diagnostics should be utilized during routine system checks or in the event of unexpected behavior. Diagnostics are provided per group of 8 channels, helping users quickly locate and address faults, reducing troubleshooting time in industrial settings.

Q: Where is the optimal location to install the 6ES7321-1BL00-0AA0 module in a control panel?

A: The module is best mounted on a DIN rail within the PLC rack of an industrial control panel. Positioning should allow for sufficient airflow, convenient access to the 40-pin front connector, and safe separation from high-voltage components.

Q: What is the process for configuring the input type for each channel?

A: Input channels can be configured as either sink or source type based on system requirements. This is typically done during the PLC project setup using the Siemens configuration software before wiring the field devices to the module's connection terminal.

Q: How does the SM 321 ensure compatibility with different power supplies?

A: The module accepts a 24 V DC input voltage and operates efficiently over a supply frequency range of 47-63 Hz, making it compatible with standard industrial power sources. External supply ensures uninterrupted performance within the specified power conditions.
