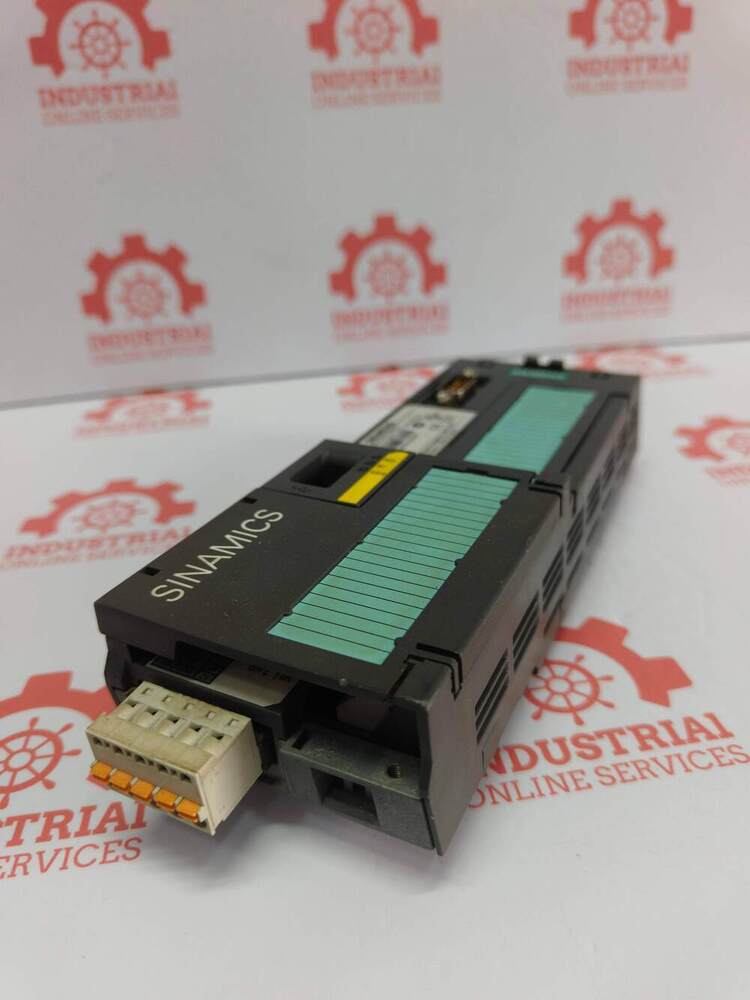

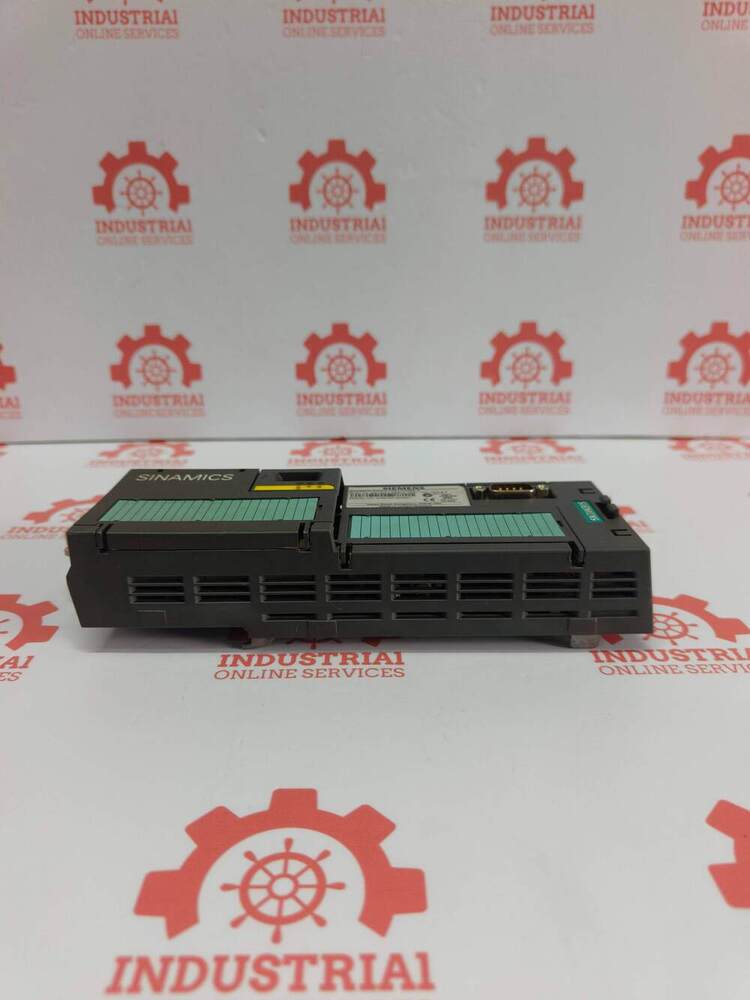

SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type)

Name: SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type)
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type) Specification

Rated Voltage
24 V DC

Output Voltage
24V DC (Communication/feed to other modules)

Humidity
5% to 95% (non-condensing)

Protection Level
IP20

Mounting Type
Rail Mounting (Standard DIN Rail)

Efficiency
High efficiency control and management

Frequency
50/60 Hz (For communication purposes)

Phase
Single Phase

Operating Temperature
-10C to +50C

Input Current
0.4 A

Main Material
Plastic, Electronic Components

Processing Type
Standard

Condition
New

Function
Control Unit for SINAMICS G120 Frequency Inverter

Application
Industrial Automation, Motor Drive Control

Dimension (L*W*H)
160 mm x 73 mm x 55 mm

Power Mode
External DC supply

Voltage
24 V DC

Power Consumption
6 W

Accessories
User Manual, Mounting Screws

Weight
approx. 0.35 kg

Analog Inputs
2

Release Year
Current production, latest firmware supported

Approvals/Standards
CE, UL, cUL, RoHS

Communication Interfaces
RS485, USS, Modbus RTU, PROFIBUS (optional via module)

Display
Status LEDs only

Digital Outputs
2

Series
SINAMICS G120

Relay Outputs
1 Changeover contact

Model
6SL3244-0BB12-1BA1 (CU240E-2 E-Type)

Storage Temperature
-40C to +70C

Digital Inputs
6

Compatibility
SINAMICS G120 Power Modules

Color
Black with Green Accents

Analog Outputs
1

Product Type
Control Unit (CU) for Frequency Converter

SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type)

SIEMENS 6SL32440BB121BA1 SINAMICS G120 Control Unit Model CU240E2 EType

Key Specifications

Power Supply 24 V DC via external DC 2029V max 05A

Integrated Safety Safe Torque Off STO functionality builtin

Communication Interfaces RS485Interface supporting USS Protocol and Modbus RTU

Hardware Connectivity 1x USB port and 1x SDMMC card slot

Enclosure Rating IP20 designed for standard control cabinet installation

Ambient Operating Temp 0 to 50 C

Dimensions Weight 73 199 46 mm approximately 049 kg

Digital Inputs DI 6 standard inputs including 1 failsafe input capability

Digital Outputs DO 3 outputs 2 relay changer type

Analog Inputs AI 2 differential analog inputs

Analog Outputs AO 2 nonisolated analog outputs

Motor Temperature Sensor 1x PTCKTY sensor interface

Advanced Connectivity Options

The CU240E-2 E-Type control unit supports multiple communication interfaces, including RS485, USS protocol, Modbus RTU, and optional PROFIBUS via an expansion module. This ensures seamless integration with a variety of industrial networks and automation architectures, enhancing compatibility and simplifying configuration for users.

Robust Design and Flexible Mounting

Built for demanding environments, this unit withstands storage temperatures from -40C to +70C and operates efficiently between -10C and +50C. Its compact, lightweight build and standard DIN rail mounting enable easy installation in control panels, making it suitable for new and retrofit applications alike.

Efficient and Reliable Performance

Operating at just 6 W power consumption and powered by a 24 V DC external supply, the CU240E-2 E-Type control unit ensures high efficiency and low operational costs. It features status LEDs for quick monitoring, and carries international certifications, assuring reliable, compliant, and consistent performance.

FAQ's of SIEMENS 6SL3244-0BB12-1BA1 SINAMICS G120 Control Unit (Model: CU240E-2 E-Type):

Q: How do I install the SIEMENS CU240E-2 E-Type control unit in my frequency inverter system?

A: Installation is straightforward-mount the unit onto a standard DIN rail within your control cabinet, connect it to a compatible SINAMICS G120 power module, and wire up the required inputs, outputs, and communication interfaces as specified in the user manual supplied.

Q: What communication interfaces are available on the CU240E-2 E-Type model?

A: This control unit supports RS485, USS, and Modbus RTU protocols by default, with optional PROFIBUS connectivity available via a separate expansion module. These interfaces make integration with diverse automation networks simple and robust.

Q: When should I use the relay output on this control unit?

A: The relay output, featuring a single changeover contact, is ideal for signaling, alarm handling, or direct control of auxiliary devices in your automation setup. Use it when you need galvanic isolation and reliable switching for system feedback or safety circuits.

Q: Where is the SIEMENS CU240E-2 E-Type typically used?

A: This control unit is commonly utilized in industrial automation projects, including motor drive systems, process control panels, and factory automation cells, thanks to its versatile connectivity and robust environmental specifications.

Q: What are the main benefits of using the CU240E-2 E-Type control unit?

A: Key advantages include high integration flexibility, excellent energy efficiency, reliable performance under harsh conditions, quick status monitoring via LEDs, and compliance with global standards like CE, UL, cUL, and RoHS.

Q: How can I check the operational status of the control unit during usage?

A: Operational status is indicated via built-in status LEDs on the unit's front panel. These LEDs provide immediate feedback on module health, communication states, and diagnostic notifications, aiding in quick troubleshooting.
