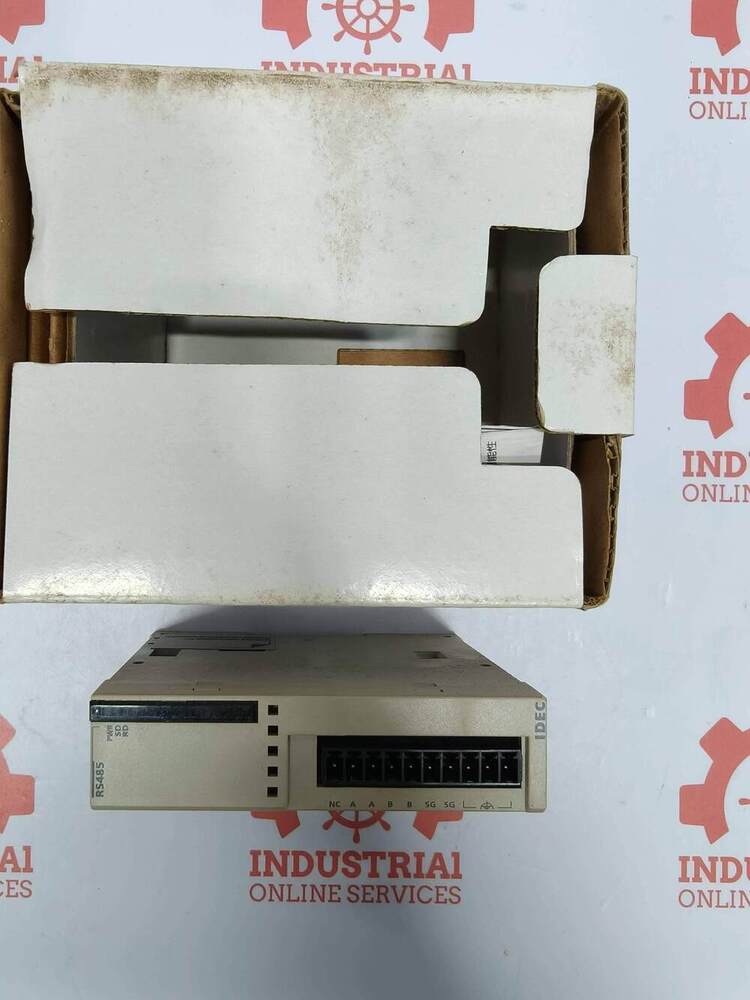

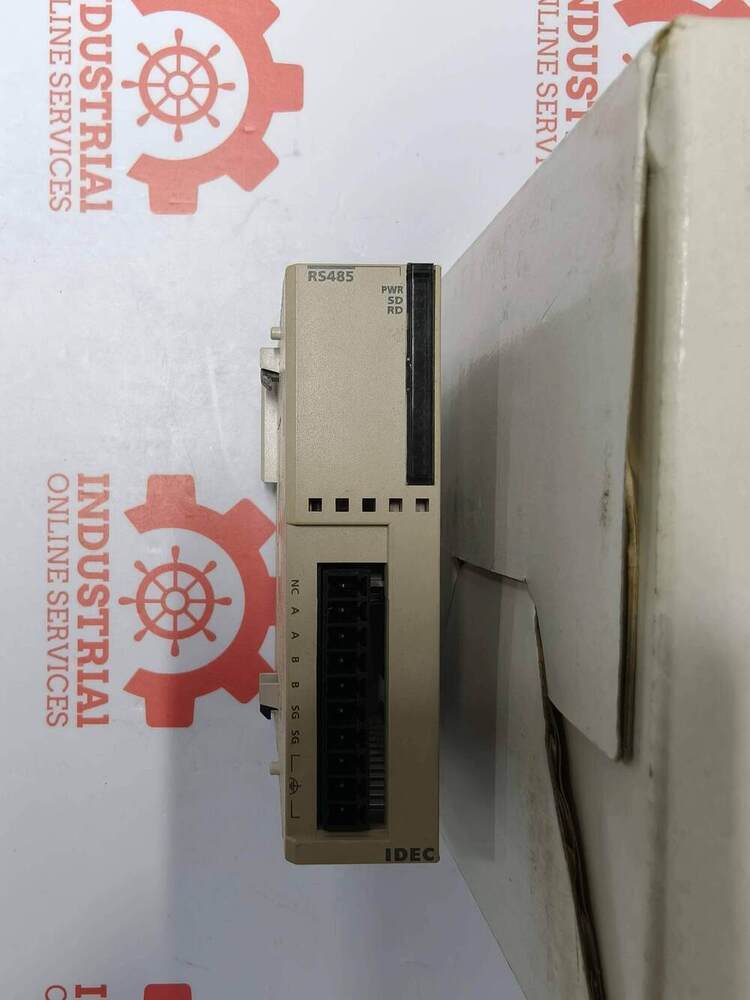

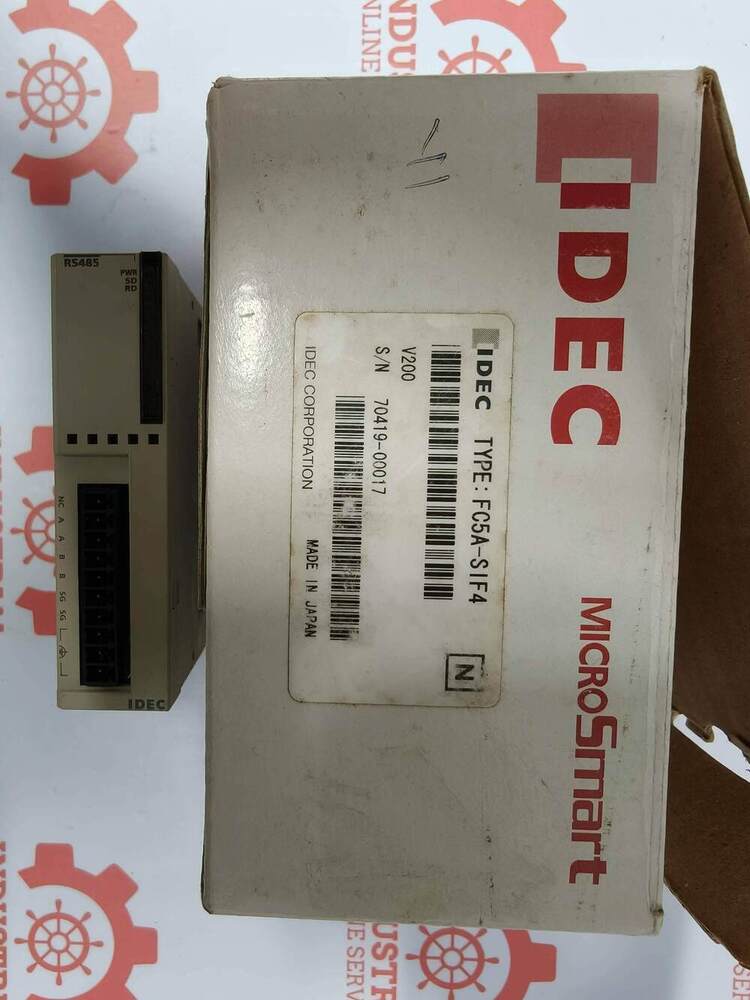

IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module

Name: IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module Specification

Mounting Type
DIN Rail or Panel Mount (with base unit)

Rated Voltage
5 VDC

Humidity
10% to 95% RH (non-condensing)

Operating Temperature
0 to 55C (32 to 131F)

Main Material
Industrial Grade Plastic & Electronics

Processing Type
Digital Communication Module

Condition
Used / As Is

Function
Provides RS-485 serial communication capability

Application
RS-485 Serial Communication Expansion for IDEC FC5A PLC

Power Mode
Powered by the base unit

Voltage
5V DC (Supplied via base unit)

Product Type
Expansion Module

Weight
Approx. 80 grams

Interface Type
RS-485 Serial Port (Expansion)

Communication Ports
1 Channel RS-485 port

Model Number
FC5A-SIF4

Compatible With
IDEC MicroSmart Pentra & FC5A PLC base units

IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module

The IDEC FC5A-SIF4 is an expansion RS-485 serial communication module designed for the MicroSmart Pentra FC5A series Programmable Logic Controller (PLC) system.

Key Technical Specifications

Communication Interface: Dedicated RS-485 port.
System Expandability: Allows expansion up to 5 modules on a Slim CPU or up to 3 modules on an All-in-one CPU.
Maximum Port Capacity: Supports up to 6 communication ports total per PLC setup.
Baud Rate: Supports high-speed transmission up to 115,200 bps (requires CPU system program version 220 or higher).
Network Limit: Connects up to 31 slaves in a single line using Modbus or User Communication protocol.
Power & Dimensions: Operational consumption of 24V DC at 40 mA; dimensions measure 84.6 mm x 27.3 mm x 90 mm.

Expand Your Automation's Communication Abilities

With the FC5A-SIF4, you can easily broaden your PLC system's communication capabilities using RS-485 serial networking. This expansion module is compatible with IDEC MicroSmart Pentra and FC5A base units, making integration straightforward. It's lightweight, industrially durable, and seamlessly powered by the base PLC, ensuring efficient and reliable operation in a range of demanding environments.

Effortless Mounting and Installation

Designed for flexible installation, the FC5A-SIF4 RS-485 module can be mounted on a DIN rail or panel alongside the IDEC base unit. Its plug-and-play nature allows for quick expansion of networking capabilities without significant system downtime or rewiring, making it ideal for distributors, exporters, and end-users in India's industrial automation sector.

FAQ's of IDEC FC5A-SIF4 Expansion RS-485 Serial Communication Module:

Q: How does the FC5A-SIF4 expansion module enhance my IDEC PLC system?

A: The FC5A-SIF4 provides an additional RS-485 serial communication port, enabling your IDEC PLC (MicroSmart Pentra & FC5A series) to connect with a range of devices and networks that use the RS-485 protocol for digital communication.

Q: What are the benefits of using RS-485 serial communication with this module?

A: RS-485 allows for reliable, long-distance, and multi-point data exchange, supporting industrial automation where multiple devices need robust communication lines. It's ideal for environments where electrical noise and signal integrity are concerns.

Q: When should I consider installing the FC5A-SIF4 module?

A: Install this module if you need to expand your PLC's connectivity options to RS-485-compatible devices or networks, such as sensors, drives, or other PLCs. It's beneficial whenever your automation system requires scalable and versatile communication options.

Q: Where is the FC5A-SIF4 module typically mounted?

A: The module is designed for DIN rail or panel mounting and must be installed alongside the IDEC base unit within your control panel or automation cabinet for secure and accessible wiring.

Q: What is the process for adding the FC5A-SIF4 module to my existing PLC setup?

A: Simply mount the module to your DIN rail or panel, connect it to your existing IDEC base unit, and configure the communications settings in the PLC software. It is powered automatically by the base unit, eliminating the need for an independent power supply.

Q: How do I ensure proper operation and longevity of the FC5A-SIF4 module?

A: Operate the module within the specified temperature (0C to 55C) and humidity (10% to 95% RH, non-condensing) ranges. Follow the recommended installation guidelines and maintain the unit free from dust and moisture to ensure its reliability.

Q: Is this module suitable for new installations or only for replacement in existing systems?

A: Although supplied as used/as-is, the FC5A-SIF4 can be utilized for both expanding existing automation networks and as a cost-effective solution for new installations requiring RS-485 serial communication capabilities.
