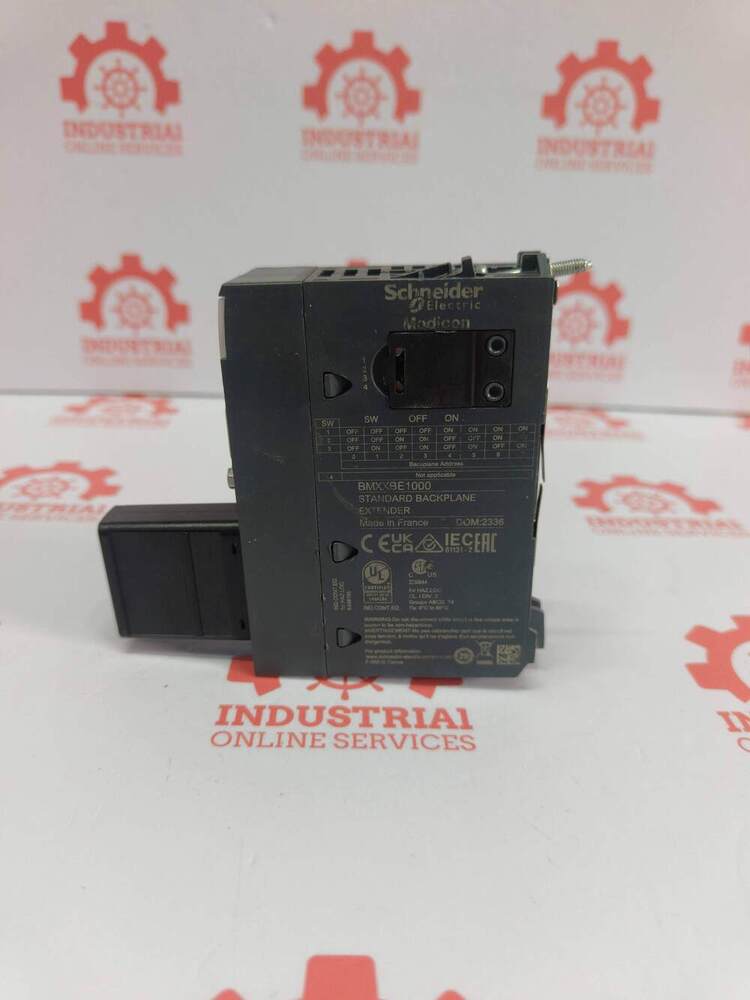

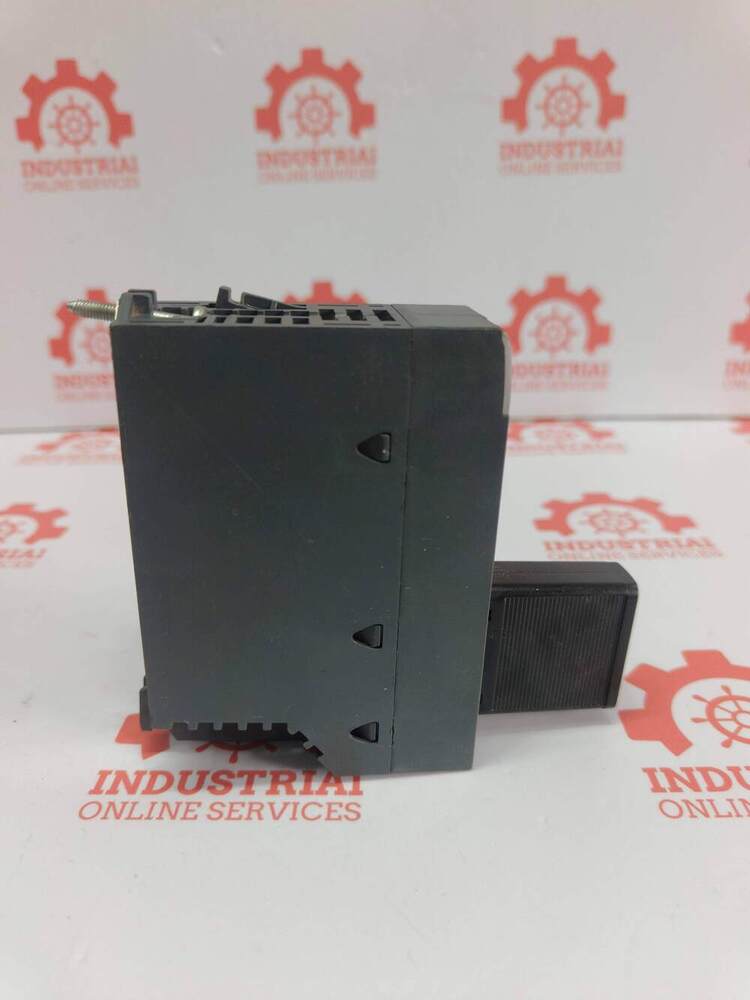

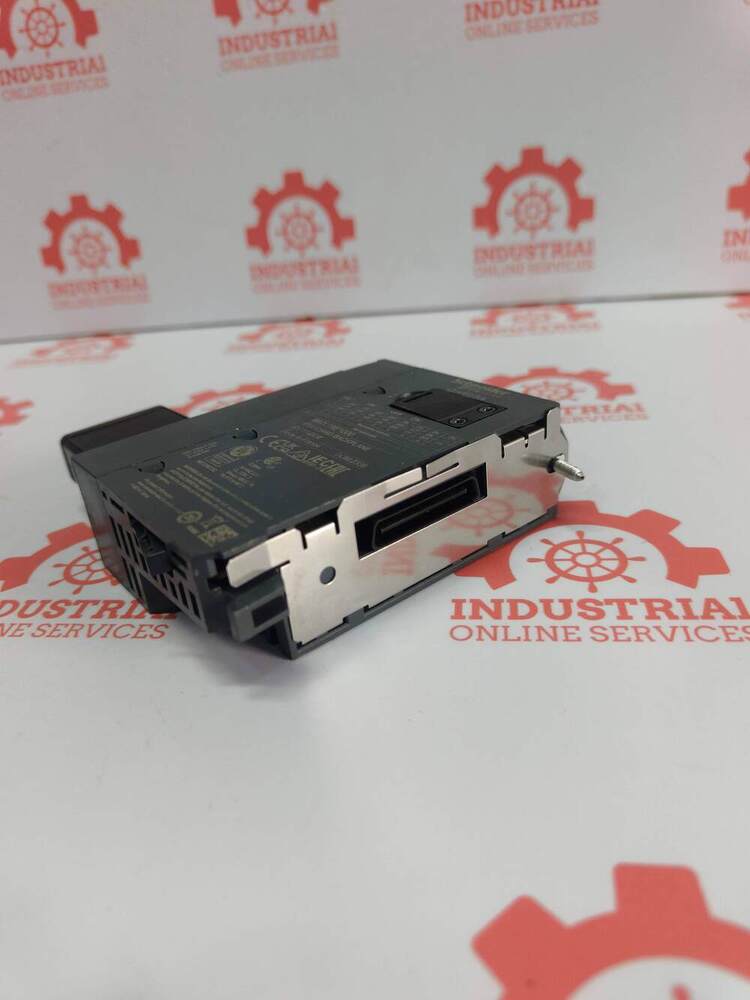

SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations

Send Inquiry

Request To Call Back

SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations

Name: SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations Specification

Frequency
DC Operation (No Hz)

Efficiency
>95% (Internal Communication)

Operating Temperature
0C to 60C

Humidity
5% to 95% (non-condensing)

Protection Level
IP20

Rated Voltage
24 V DC

Mounting Type
DIN Rail Mounting

Main Material
Polycarbonate/ABS Housing

Processing Type
Backplane Bus Extension

Condition
New

Function
X-Bus Backplane Extension Module

Application
Multi-Rack Automation Configurations for Modicon M340/M580 PLCs

Dimension (L*W*H)
110 mm x 32 mm x 100 mm (Approx.)

Power Mode
Backplane Supplied

Voltage
24 V DC

Power Consumption
1.5 W

Accessories
None (Main Module Only)

Compliance Standards
IEC 61131-2

Series
Modicon M340/M580

Bus Length Supported
Up to 30 m

Enclosure Color
Gray

Supported Configuration
Multi-Rack & Extended Backplane Applications

Relative Altitude
Up to 2000 m

Model Number
BMXXBE1000

Isolation
Galvanically Isolated Bus

Storage Temperature
-40C to +85C

Connector Type
X-Bus / Backplane Extension Cable

Weight
Approx. 200 g

Insulation Voltage
50 V

SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations

SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations

Key Specifications

Platform Compatibility: Part of the Modicon X80 common platform, making it fully compatible with Modicon M340 and Modicon M580 PAC systems.

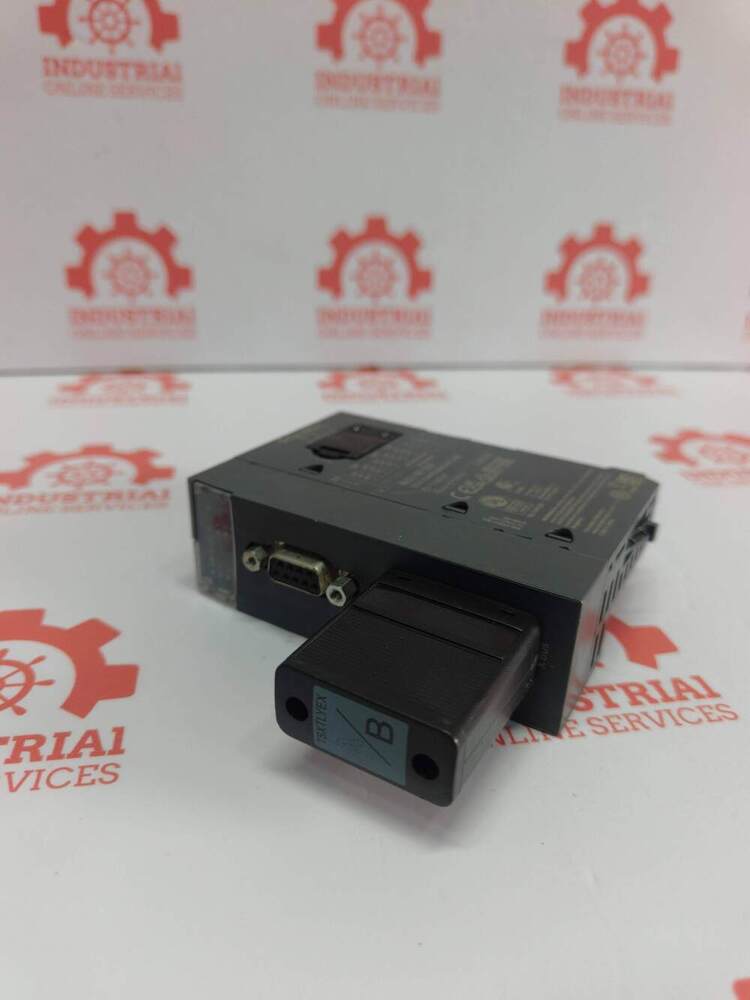

Electrical Connectivity: Equipped with 2 x 9-way SUB-D female connectors for establishing the backplane extension bus link.
Current Consumption: Draws 160 mA at 24V DC and 22 mA at 3.3V DC from the rack power supply.
Maximum Distance: Supports a maximum expansion bus cable length of up to 13 metres total across the multi-rack configuration.

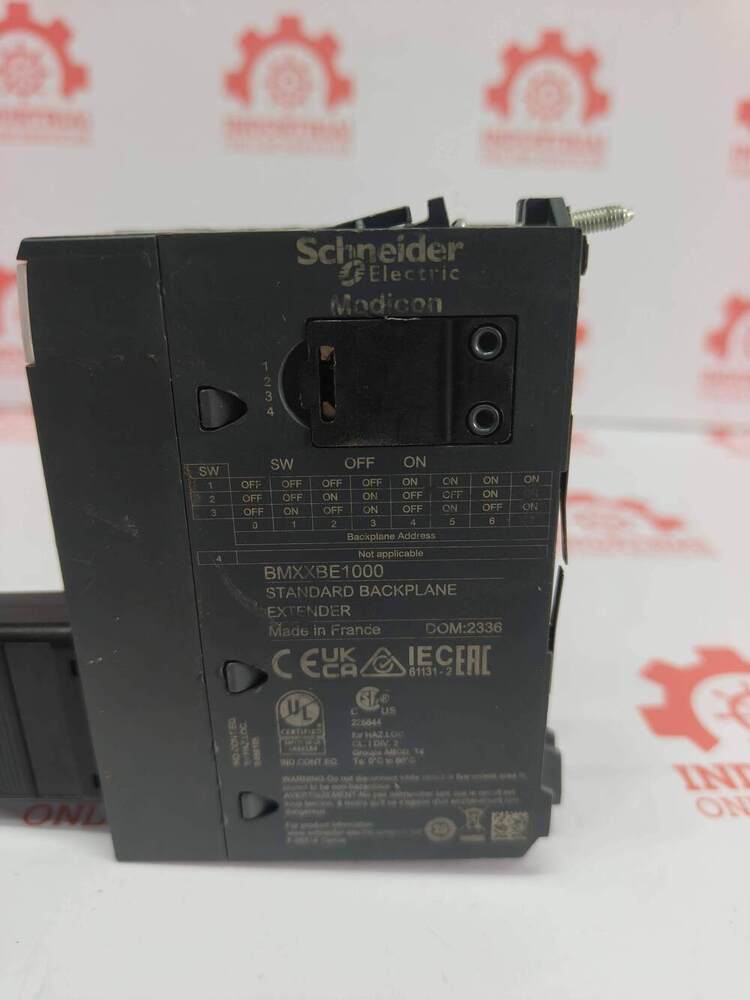

Status Diagnostics: Includes onboard LED indicators for system status, featuring a green RUN LED for bus operating status, a red COL LED for collision/rack errors, and 4 green LEDs indicating rack address status.
Environmental Rating: Standard IP20 protection rating with an operational temperature range of 0C to 60C.

Simplified Multi-Rack Connectivity

Experience streamlined automation expansions with the BMXXBE1000 X-Bus Backplane Extension Module. Effortlessly link multiple Modicon M340 or M580 PLC racks over distances up to 30 meters while maintaining signal integrity. Designed for industrial environments, its galvanic isolation ensures safe and robust communication for advanced process control.

Durable, Flexible Design

The polycarbonate/ABS housing and IP20 protection ensure longevity even in challenging conditions. The module supports storage temperatures from -40C to +85C and reliable operation between 0C and 60C, making it suitable for diverse automation projects.

Easy DIN Rail Installation

The BMXXBE1000 module is engineered for hassle-free DIN rail mounting, making installation straightforward in both new and existing automation cabinets. Simply connect using the X-Bus extension cable for a clutter-free and organized control system.

FAQ's of SCHNEIDER BMXXBE1000 Modicon M340/M580 X-Bus Backplane Extension Module Designed For Multi-Rack Automation Configurations:

Q: How do I use the BMXXBE1000 module to extend my Modicon M340/M580 automation system?

A: The BMXXBE1000 X-Bus Backplane Extension Module connects via a dedicated X-Bus extension cable between PLC racks, supporting up to 30 meters in length. Mount the module on a DIN rail and ensure proper cabling to extend your automation control system for larger, multi-rack configurations.

Q: What are the main benefits of using the BMXXBE1000 in multi-rack automation setups?

A: The module enables flexible expansion of your Modicon M340/M580 PLC systems, allowing communication across multiple racks while maintaining galvanic isolation. This design ensures robust data integrity and offers efficient, centralized control for complex automation processes.

Q: When should I consider installing the BMXXBE1000 backplane extension module?

A: Install the BMXXBE1000 whenever your automation project requires more I/O or processing power than a single rack can offer. It's ideal when distributed control cabinets or extended backplane configurations are needed within a facility.

Q: Where can the BMXXBE1000 module be mounted within my control setup?

A: The BMXXBE1000 is designed for DIN rail mounting inside standard industrial control panels. Its compact dimensions make it suitable for installation alongside other Modicon PLC components, streamlining your rack configuration.

Q: What safety or compliance standards does the BMXXBE1000 meet?

A: This module complies with IEC 61131-2 and offers IP20 protection. Its galvanic isolation and insulation voltage of 50 V further ensure safe operation within a wide variety of industrial environments.

Q: What power supply requirements does the BMXXBE1000 have?

A: The extension module operates at 24 V DC, drawing power directly from the backplane with a low power consumption of 1.5 W, ensuring high efficiency in internal communication without requiring additional external power.

Q: How does the BMXXBE1000 maintain high communication efficiency over extended bus lengths?

A: Utilizing galvanically isolated X-Bus technology, the BMXXBE1000 ensures robust data transfer with over 95% internal communication efficiency, even when bridging up to 30 meters between racks.
