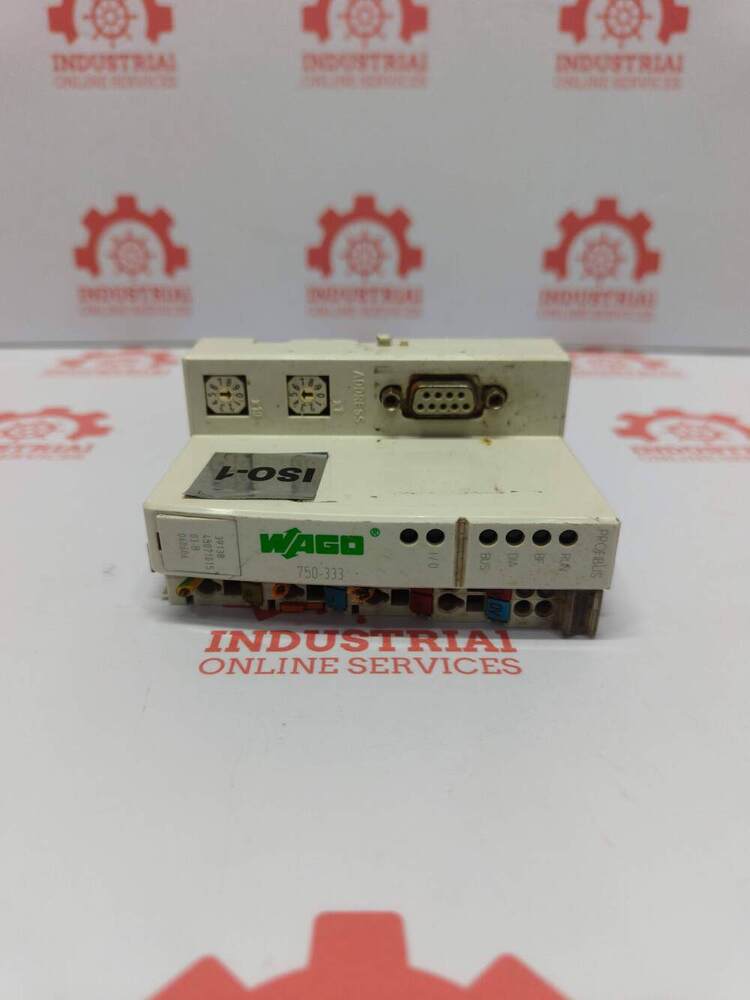

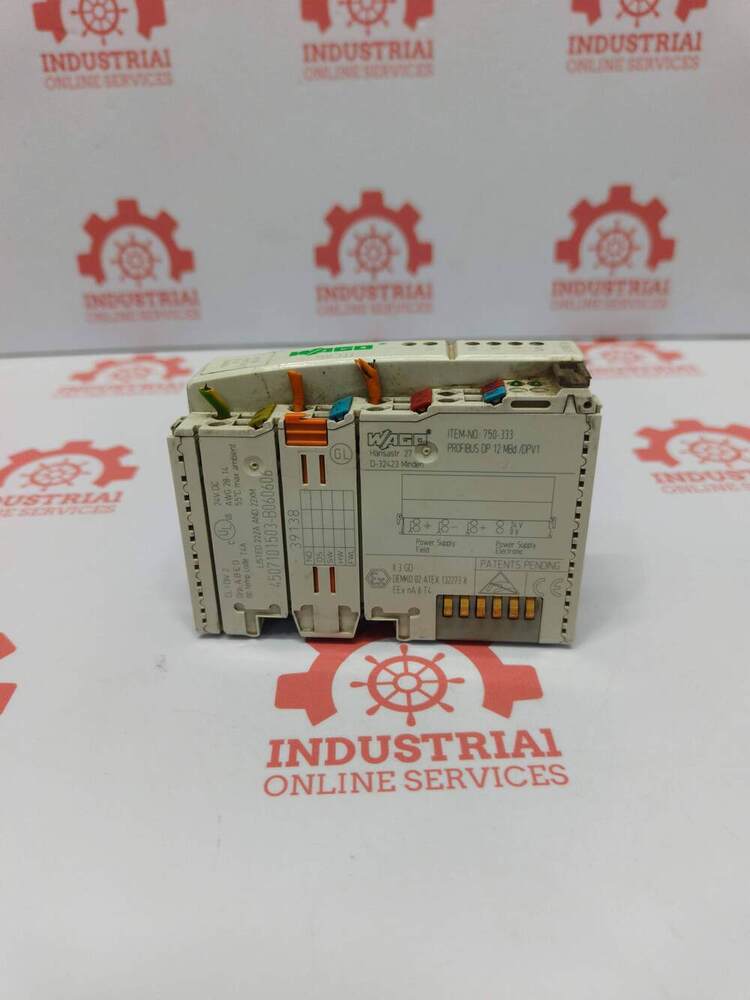

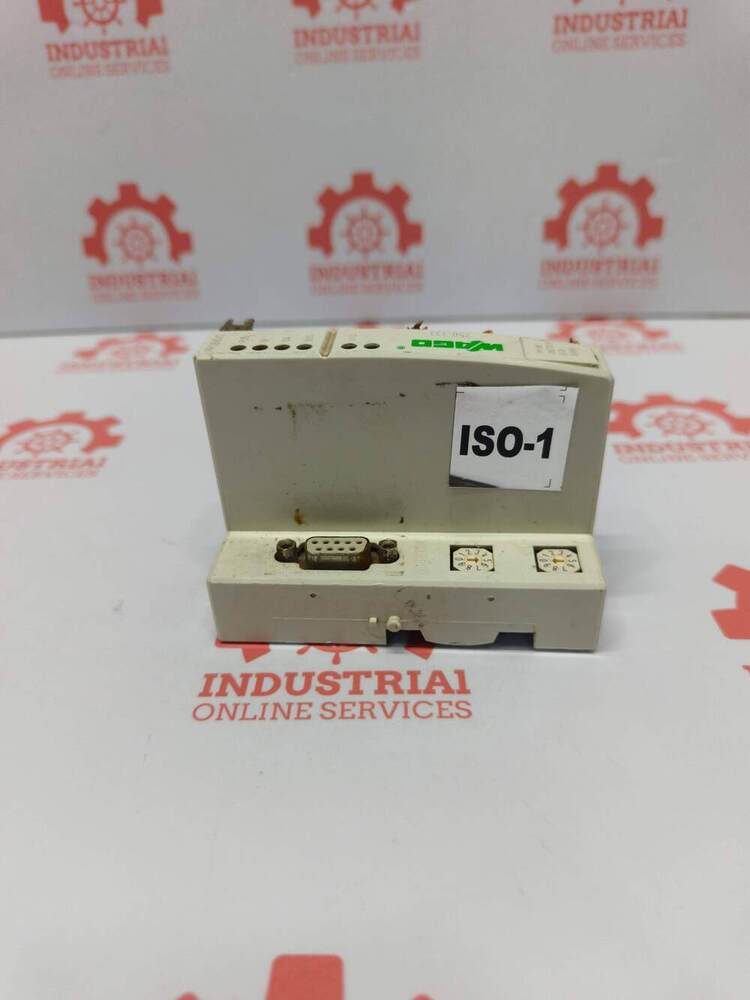

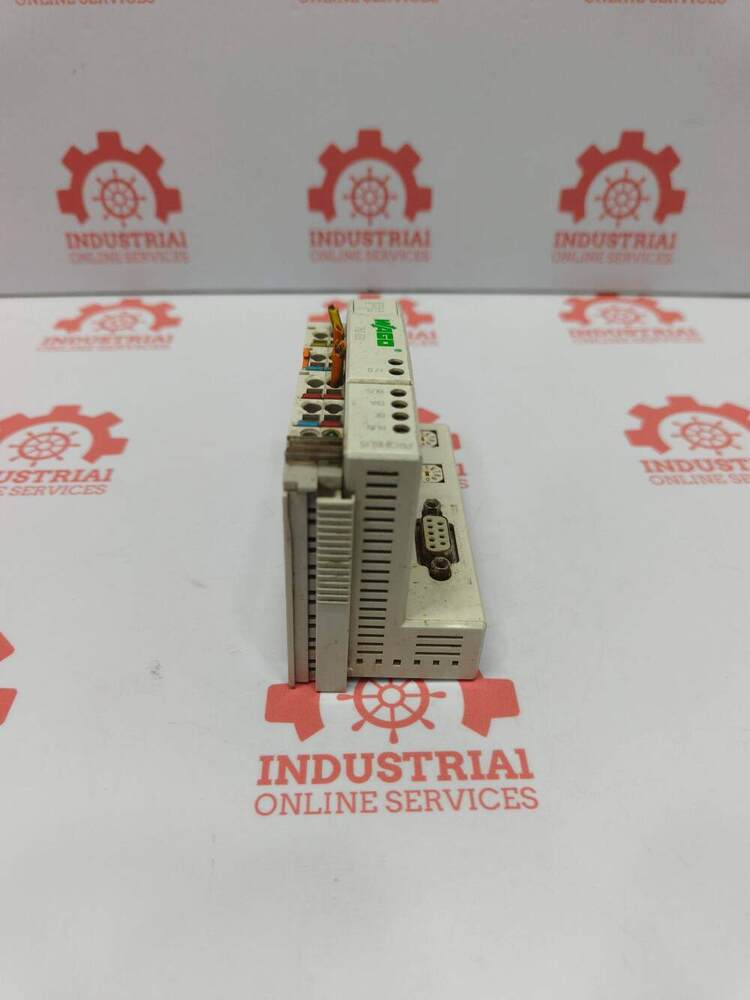

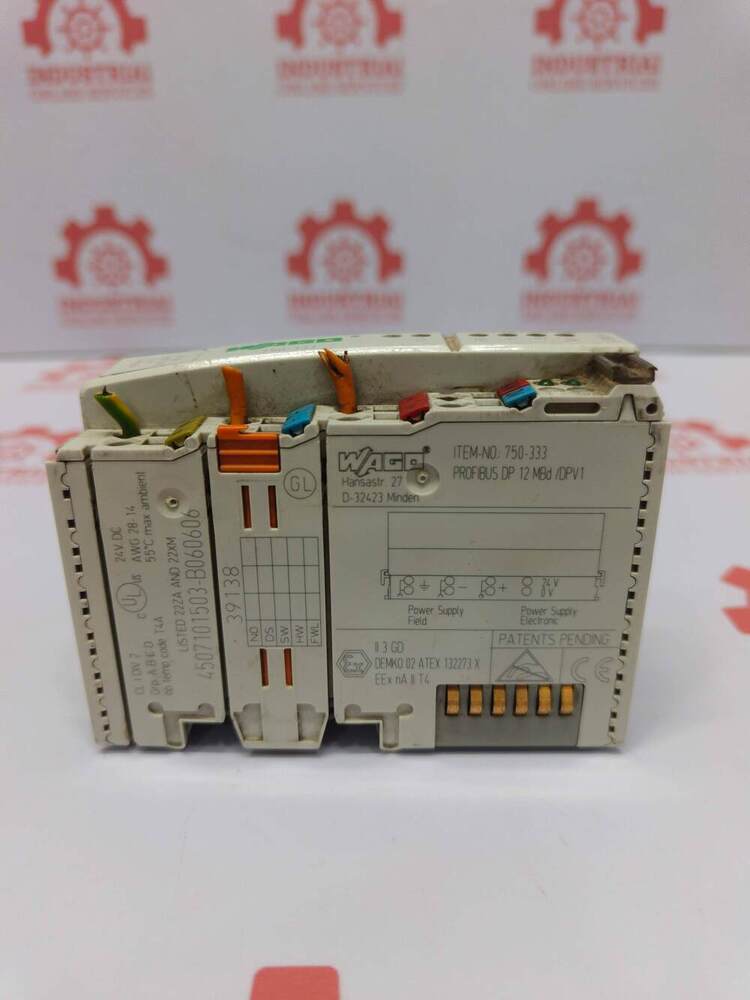

WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler

Name: WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler Specification

Rated Voltage
24 V DC

Humidity
5 % to 95 %, non-condensing

Operating Temperature
0C to +55C

Input Current
Max. 500 mA at 5 V DC (system bus)

Output Voltage
Not applicable (signal device)

Protection Level
IP20

Mounting Type
DIN-rail

Efficiency
Not specified (communication device)

Frequency
Not Applicable (uses digital communication)

Main Material
Industrial-grade plastic housing

Processing Type
Electronic Module

Condition
New

Function
PROFIBUS DP/V1 fieldbus coupler for WAGO I/O system

Application
PROFIBUS DP automation, PLC and remote I/O integration

Dimension (L*W*H)
64 mm x 100 mm x 71 mm

Power Mode
External power supply via power contacts

Voltage
24 V DC (-25 %/+30%)

Power Consumption
Approx. 500 mA at 5 V DC

Accessories
May include power supply connector and PROFIBUS connector (must confirm with supplier)

Baud Rate
9.6 kbps to 12 Mbps (auto-detect)

Isolation
Functionally isolated fieldbus and supply voltage

Configuration
GSD file configurable

Weight
Approx. 220 g

Status Indication
Status LEDs for I/O, system, and fieldbus diagnostics

Fieldbus Interface
PROFIBUS DP/V1, RS485, D-sub 9-pin connector

Max. Modules
Up to 64 I/O modules per coupler

WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler

WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler

Key Specifications

Communication Protocol: PROFIBUS DP and DPV1 with transfer rates from 9.6 kBd up to 12 MBd.
Node Capacity: Supports up to 63 local I/O modules per network node.
Process Image: Maximum capacity of 244 bytes of input data and 244 bytes of output data.
Supply Voltage: 24 V DC system supply via standard CAGE CLAMP connections.
Hardware Interface: Features a standard 1 x D-Sub 9 female connector for the fieldbus link.
Configuration: Station addressing is set directly on the hardware via integrated rotary switches.
Environmental & Build: Standard IP20 housing designed for horizontal or vertical DIN-35 rail mounting.

Seamless PROFIBUS Integration

Designed for integration into PROFIBUS DP/V1 networks, the WAGO 750-333 allows automation engineers to connect up to 64 I/O modules per coupler. Its RS485 interface with D-sub 9-pin connector and GSD file configurability ensures rapid setup and reliable communication, streamlining PLC and remote I/O applications.

Robust Industrial Performance

Operating in environments ranging from 0C to +55C and at humidity levels of 5% to 95%, the 750-333 is housed in durable industrial-grade plastic and offers IP20 protection. Functional isolation and comprehensive diagnostic LEDs provide additional security and transparency for continuous operation.

Flexible and Easy Installation

The 750-333 is suited for versatile mounting with its compact DIN-rail design, making it ideal for new and retrofit installations. External power supply compatibility and included accessories, such as power supply and PROFIBUS connectors (availability to be confirmed), simplify system integration.

FAQ's of WAGO 750-333 2nd-Generation PROFIBUS DP/V1 Fieldbus Coupler:

Q: How does the WAGO 750-333 facilitate integration into PROFIBUS DP automation systems?

A: The WAGO 750-333 is equipped with a PROFIBUS DP/V1 interface and is configurable via a GSD file, enabling straightforward connection to existing automation infrastructure for real-time data communication with up to 64 I/O modules.

Q: What are the main benefits of using the WAGO 750-333 in industrial environments?

A: Key advantages include automatic baud rate detection (9.6 kbps to 12 Mbps), robust functional isolation, comprehensive status LEDs for diagnostics, and compliance with industrial standards, making it reliable for diverse automation applications.

Q: When should I use the WAGO 750-333 fieldbus coupler?

A: This coupler is best used when integrating distributed I/O systems with a PROFIBUS DP master, such as PLCs, in scenarios requiring reliable, scalable automation solutions.

Q: Where can the WAGO 750-333 be mounted within my control panel?

A: The unit is designed for DIN-rail mounting, allowing straightforward installation within standard control panels in industrial or automation settings.

Q: What is the process for configuring the WAGO 750-333 for my system?

A: Configuration is handled through the supplied GSD file, which is imported into your PROFIBUS configuration tool. From there, I/O modules are added and mapped as required.

Q: How does the status indication feature support ongoing operation and maintenance?

A: Integrated status LEDs provide real-time feedback on I/O, system, and fieldbus status, assisting in quick diagnostics, troubleshooting, and ongoing system maintenance.
