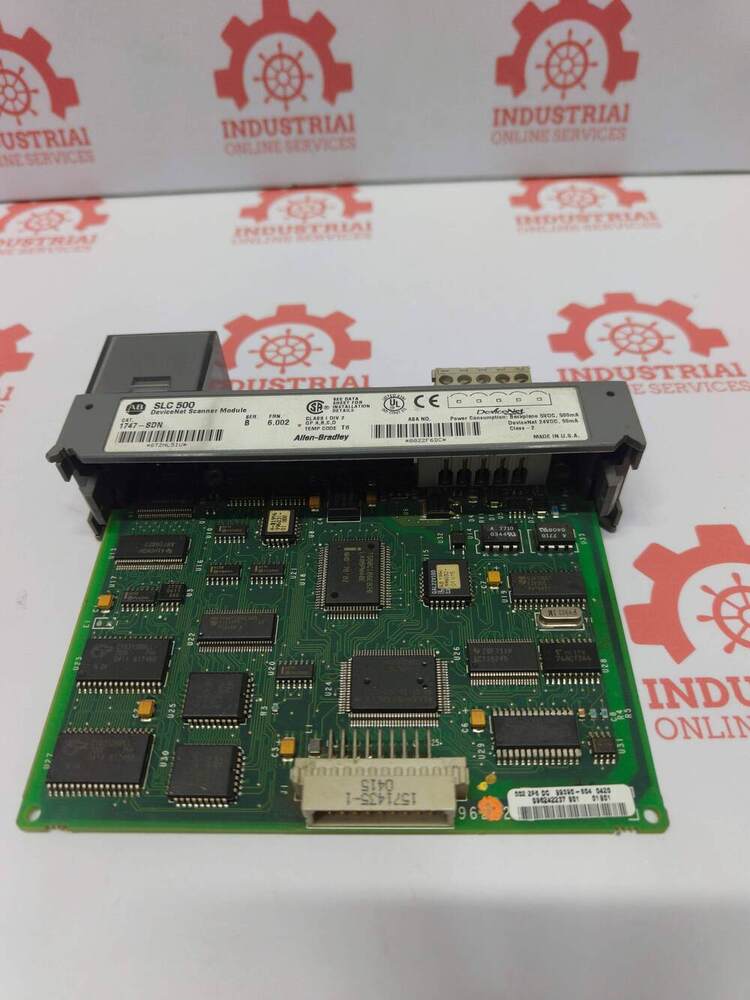

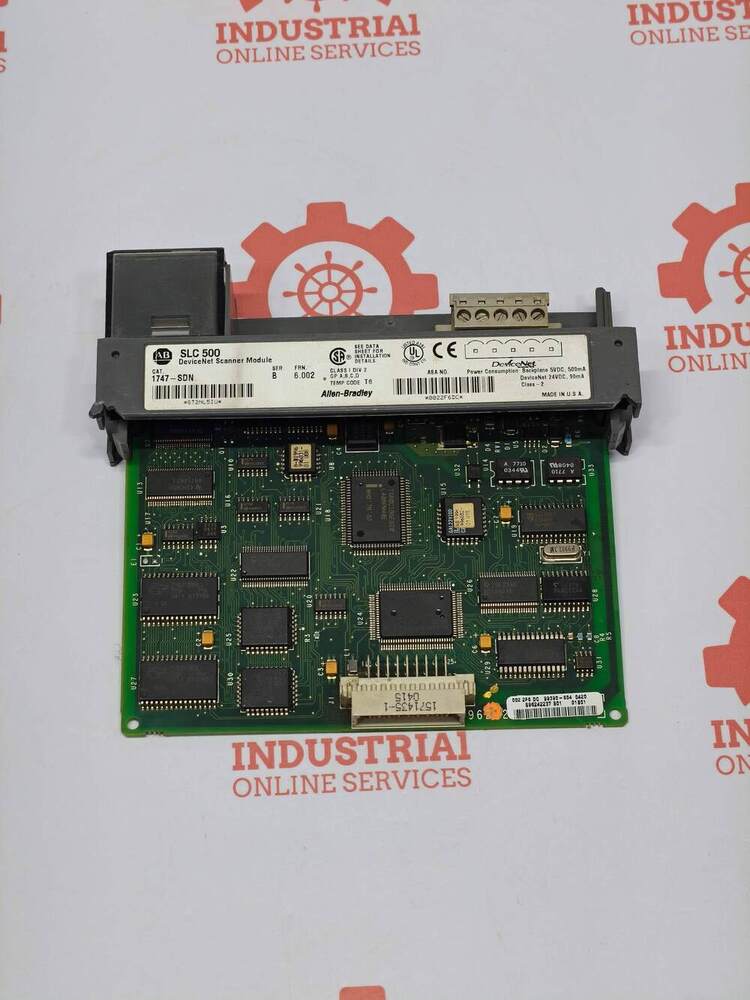

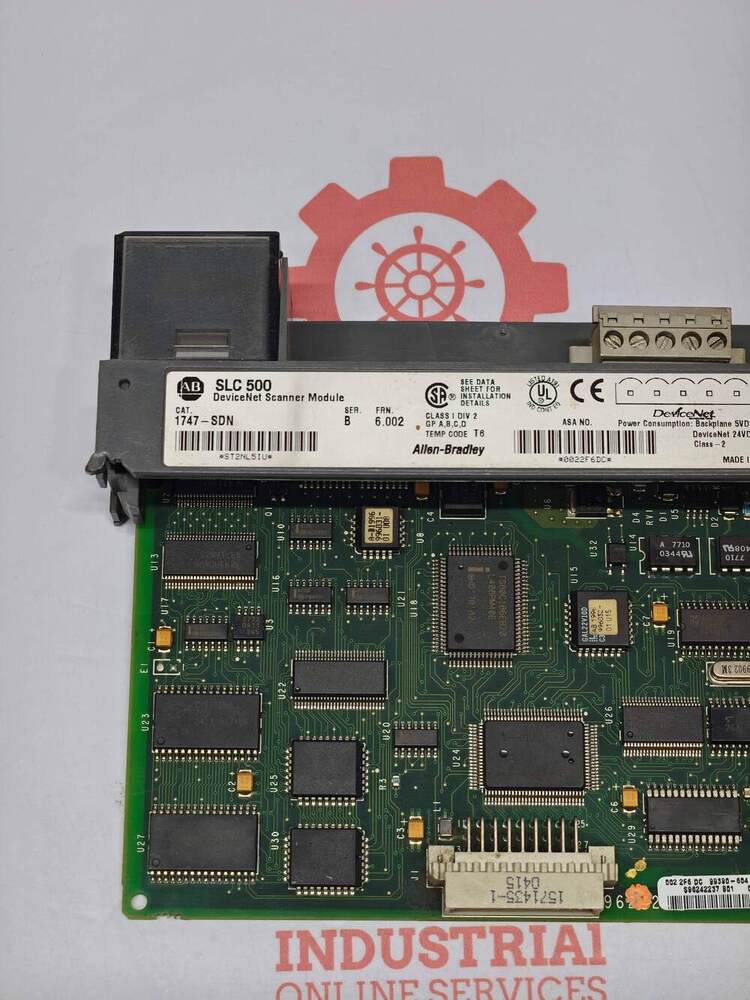

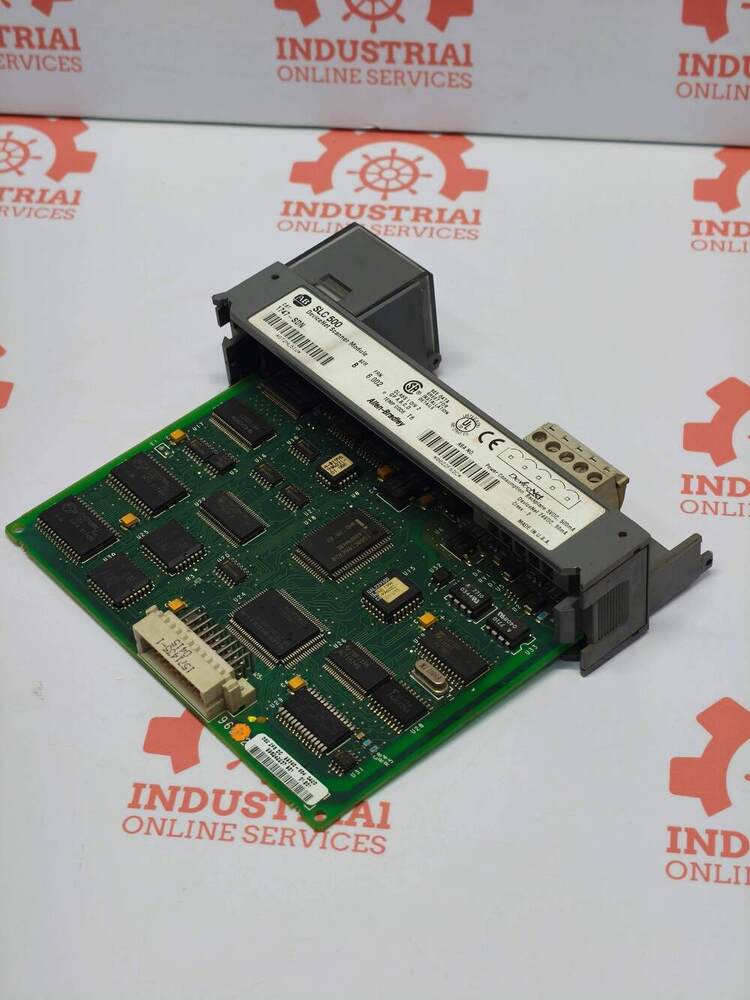

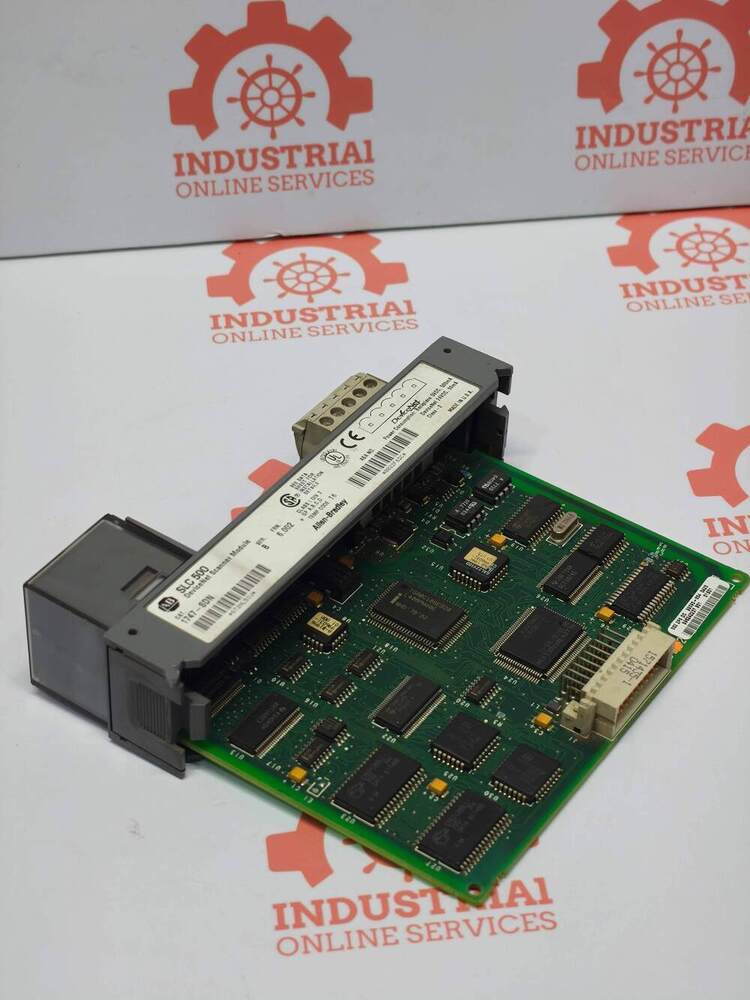

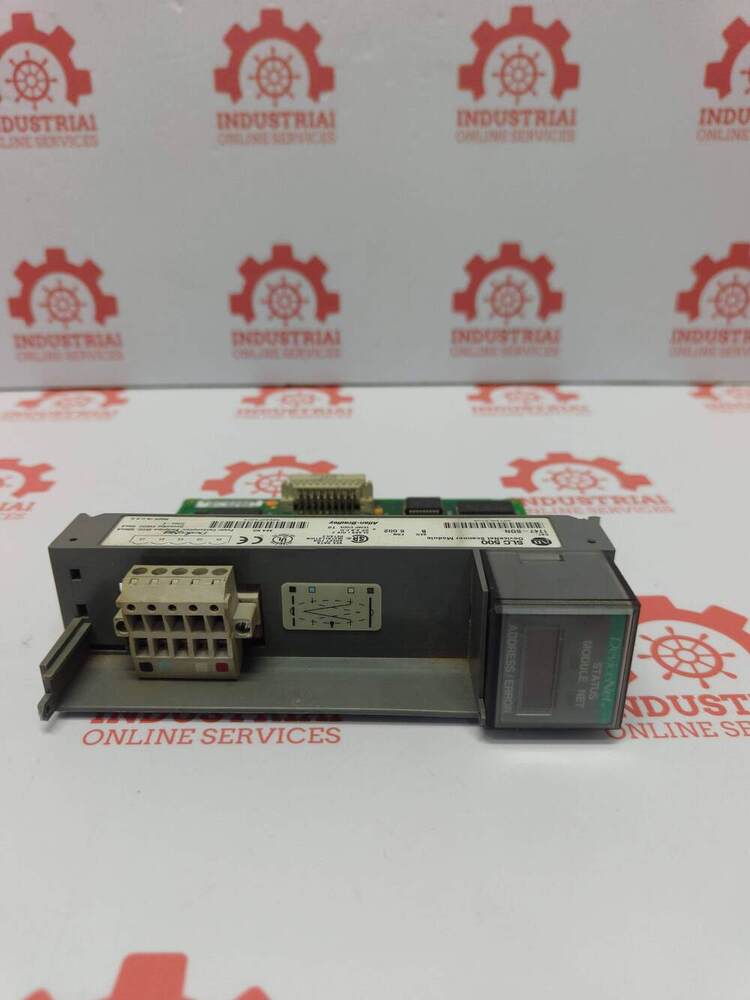

ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module

Name: ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module Specification

Chip Type
Microprocessor-based

Model No
1747-SDN

I/O Cards Type
DeviceNet Scanner Module

Condition
Used / Refurbished

Compatible Port/Slot
SLC 500 Modular Controller Slot

Use
DeviceNet Communication, Control System Integration

Operating Temperature
0 to 60C

Configuration
RSLogix 500 via SLC Processor

Connectors
DeviceNet 5-pin removable terminal

Application
Industrial Automation, Control Systems

Max Number of DeviceNet Nodes
Up to 64

Backplane Current
430 mA

Module Status Indicators
OK, COMM, SYS, MOD

Data Rate
125, 250, 500 Kbps

Memory
Non-volatile memory supported

Status Display
LED Indicators

Communication Protocol
DeviceNet

Input Voltage
5V DC (Backplane power)

Dimensions (LxWxH)
Approx. 5.7 x 4.2 x 1.2 inches

Compatible Controllers
SLC 5/02, 5/03, 5/04, 5/05

Mounting Type
Rack/Slot Mount

ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module

ALLEN BRADLEY 1747SDN DeviceNet Scanner Module

Key Specifications Capabilities

Protocol Node Support Manages network communications using the standard DeviceNet protocol accommodating up to 63 logical nodes

Data Transfer Rates Supports three standard network speeds 125 kbps 250 kbps and 500 kbps

Controller Compatibility Fully compatible with AllenBradley SLC 502 503 504 and 505 processors mounted in a standard 1746 modular chassis

Memory Capacity Supports up to 128 words of input data and 128 words of output data per scanner module

Electrical Ratings Operates on a backplane current load of 500 mA at 5V DC

Key Network Features Offers Advanced Device Replacement ADR AutoScan functionality allowing basic IO mapping without software setup on later firmware series and communication passthrough

Required Software Configurations generally rely on RSNetWorx for DeviceNet version 222 or later alongside core RSLogix 500 ladder logic programming

Versatile DeviceNet Communication

The 1747-SDN DeviceNet Scanner Module provides robust communication between your SLC 500 controllers and up to 64 DeviceNet nodes. Its support for data rates of 125, 250, and 500 Kbps ensures compatibility with various DeviceNet devices, enhancing system flexibility. The 5-pin removable terminal connector streamlines wiring, making maintenance and expansion straightforward in diverse automation setups.

Reliable Performance and Easy Integration

With its compact build and rack/slot mounting capability, the 1747-SDN is engineered for seamless installation in existing SLC 500 modular control systems. The module uses a microprocessor-based design for efficient data management and leverages non-volatile memory to preserve configuration settings even during power cycles. This translates to minimized downtime, increased reliability, and simplified troubleshooting with LED diagnostics.

FAQ's of ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module:

Q: How do I configure the ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module?

A: The 1747-SDN is configured using RSLogix 500 software via the SLC Processor. After installing the module in the SLC 500 chassis, you can set up DeviceNet network parameters, add nodes, and download configuration directly through the software interface.

Q: What controllers are compatible with the 1747-SDN DeviceNet Scanner Module?

A: This module is designed to work with SLC 5/02, 5/03, 5/04, and 5/05 processors within the SLC 500 Modular Controller series, enabling seamless integration into existing Allen Bradley control systems.

Q: When should I use the 1747-SDN in my industrial automation setup?

A: You should use the 1747-SDN when you require communication between your SLC 500 controller and multiple DeviceNet-enabled devices-for example, in distributed industrial control systems, data acquisition, or machine automation environments.

Q: Where is the best place to mount the 1747-SDN module?

A: The module is designed for rack/slot installation within the SLC 500 chassis. Ensure the location maintains an operating temperature between 0C and 60C and provides adequate airflow to sustain stable performance.

Q: What process is involved if a status LED indicates a fault on the module?

A: If an LED (OK, COMM, SYS, or MOD) displays a fault, refer to the module's user manual for indicator meanings. Typical steps include checking network connections, analyzing node status via RSLogix 500, and verifying backplane and DeviceNet power. Performing these actions helps diagnose and resolve issues promptly.

Q: How does the 1747-SDN benefit my control system?

A: The 1747-SDN enhances system scalability and flexibility by allowing up to 64 DeviceNet nodes to connect with your SLC 500 controllers. Its robust communication, status diagnostics, and non-volatile memory boost system reliability and simplify network troubleshooting.

Q: What are the primary usage scenarios for this device?

A: Primary uses include industrial automation, real-time data exchange between networked devices, machine control, and efficient management of distributed I/O through DeviceNet communication protocols.
